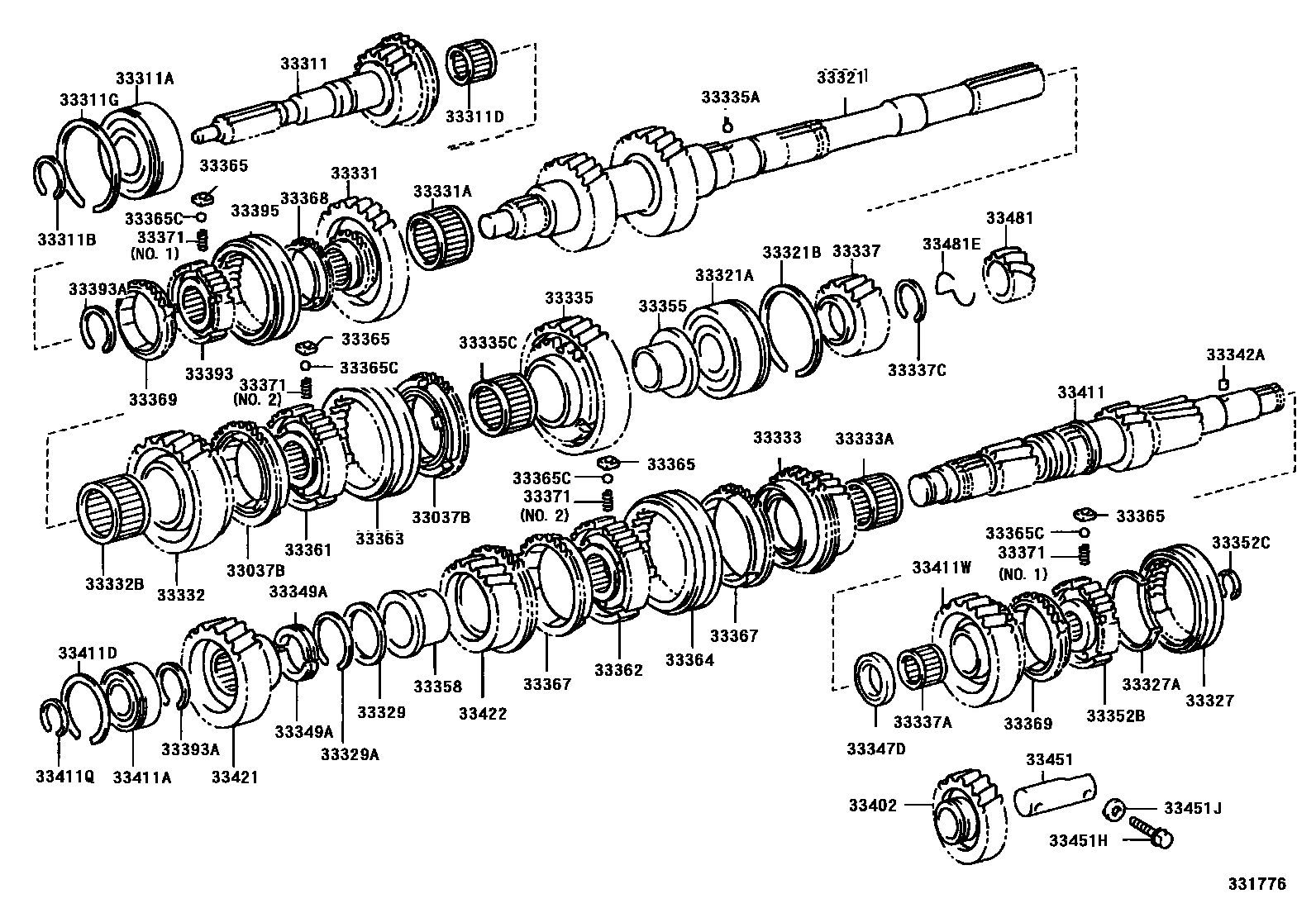

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
2ND GEAR SIDE
1ST GEAR SIDE
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=1.95-2.00,MARK 0
T=2.00-2.05,MARK 1
T=2.05-2.10,MARK 2
T=2.10-2.15,MARK 3
T=2.15-2.20,MARK 4
T=2.20-2.25,MARK 5
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
33327SLEEVE, TRANSMISSION HUB, NO.4
33327ARING, SNAP(FOR CLUTCH HUB NO.4)
33329RING, 4TH WASHER RETAINING
33329ARING, SNAP(FOR 4TH WASHER RETAINING RING)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33337CRING, SHAFT SNAP(FOR 6TH GEAR)
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33347DWASHER, 6TH GEAR THRUST
33349AWASHER, 4TH GEAR
T=3.75-3.80,MARK=A
T=3.80-3.85,MARK=B
T=3.85-3.90,MARK=C
T=3.90-3.95,MARK=D
T=3.95-4.00,MARK=E
T=4.00-4.05,MARK=F
T=4.05-4.10,MARK=G
T=4.10-4.15,MARK=H
33352BHUB, TRANSMISSION CLUTCH, NO.4
33352CRING, SHAFT SNAP
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
33355RACE, 1ST GEAR BEARING INNER
33358RACE, 4TH GEAR BEARING INNER
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33367RING, SYNCHRONIZER, NO.1
4TH GEAR SIDE
3RD GEAR SIDE
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
NO.1
NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411COUNTERSHAFT
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
33411WGEAR, COUNTER, 6TH
33421GEAR, COUNTER
33422GEAR, COUNTERSHAFT 4TH SPEED
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=10,MARK 10X31-33
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
58 parts on this diagram · 1 diagram in section
