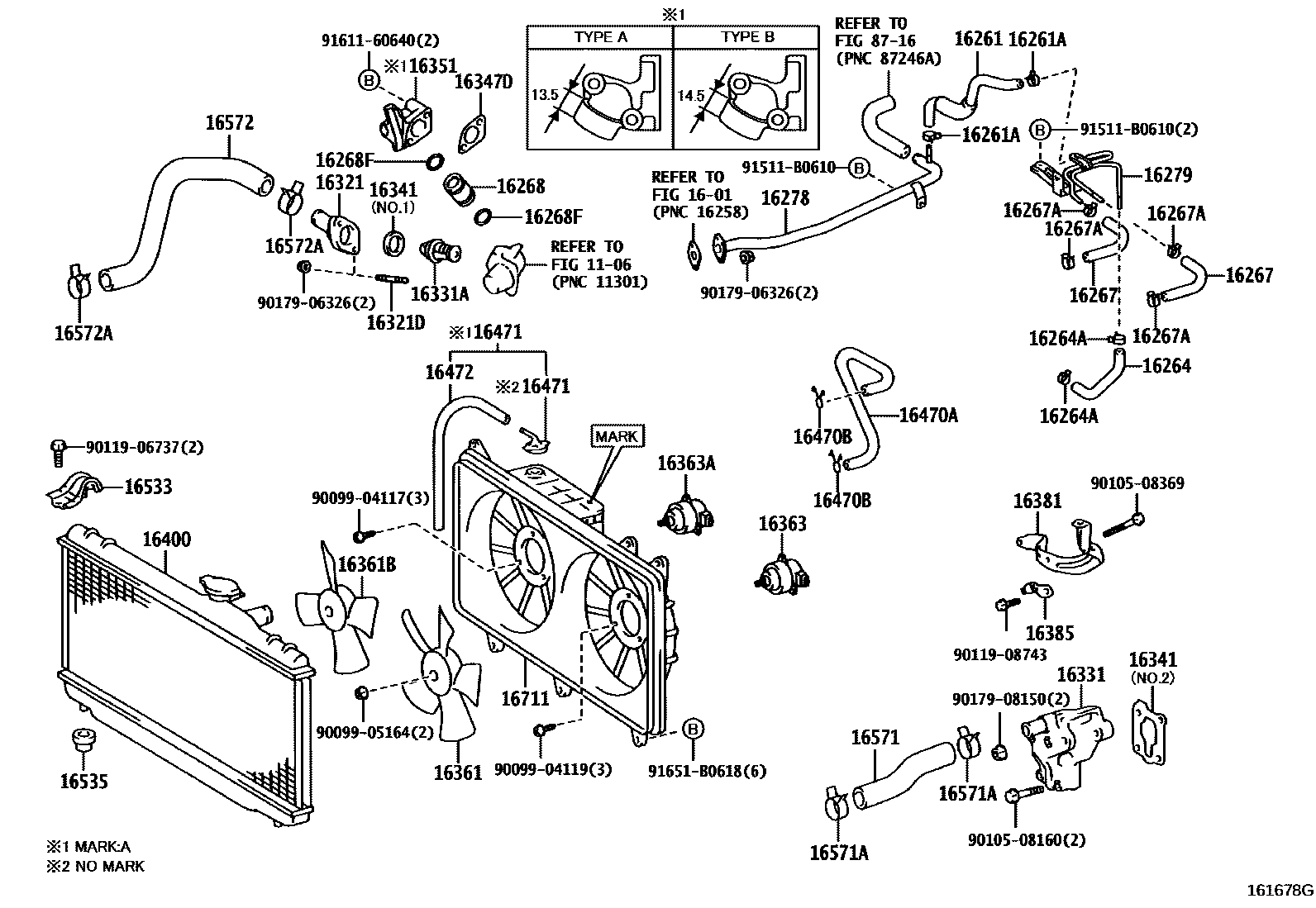

RADIATOR & WATER OUTLET
1106
1601
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
*H,L=140
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
PNC 16351=TYPE B
16278PIPE, WATER BY-PASS, NO.2
16279PIPE, WATER BY-PASS, NO.3
16321DBOLT, STUD(FOR WATER INLET)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16341GASKET, WATER OUTLET
NO.1
NO.2
16347DGASKET, WATER BY-PASS
16351OUTLET, WATER BY-PASS
TYPE B:REFER ILLUST.
16363AMOTOR, COOLING FAN, NO.2
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
CORE THICKNESS=16
CORE THICKNESS=16
CORE THICKNESS=16
CORE THICKNESS=16
CORE THICKNESS=27
CORE THICKNESS=27
CORE THICKNESS=27
CORE THICKNESS=27
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
NO MARK:REF.ILLUST
MARK A:REFER ILLUST.
16472HOSE, BREATHER
L=600(*H,L=500)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2
NO.1
NO.2
8716
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9010508160
main90105-08160
9010508369
main90105-08369
9011906737
main90119-06737
9011908743
main90119-08743
9017906326
main90179-06326
9017908150
main90179-08150
91511B0610
main91511-B0610
9161160640
main91611-60640
91651B0618
main91651-B0618
50 parts on this diagram · 5 diagrams in section
