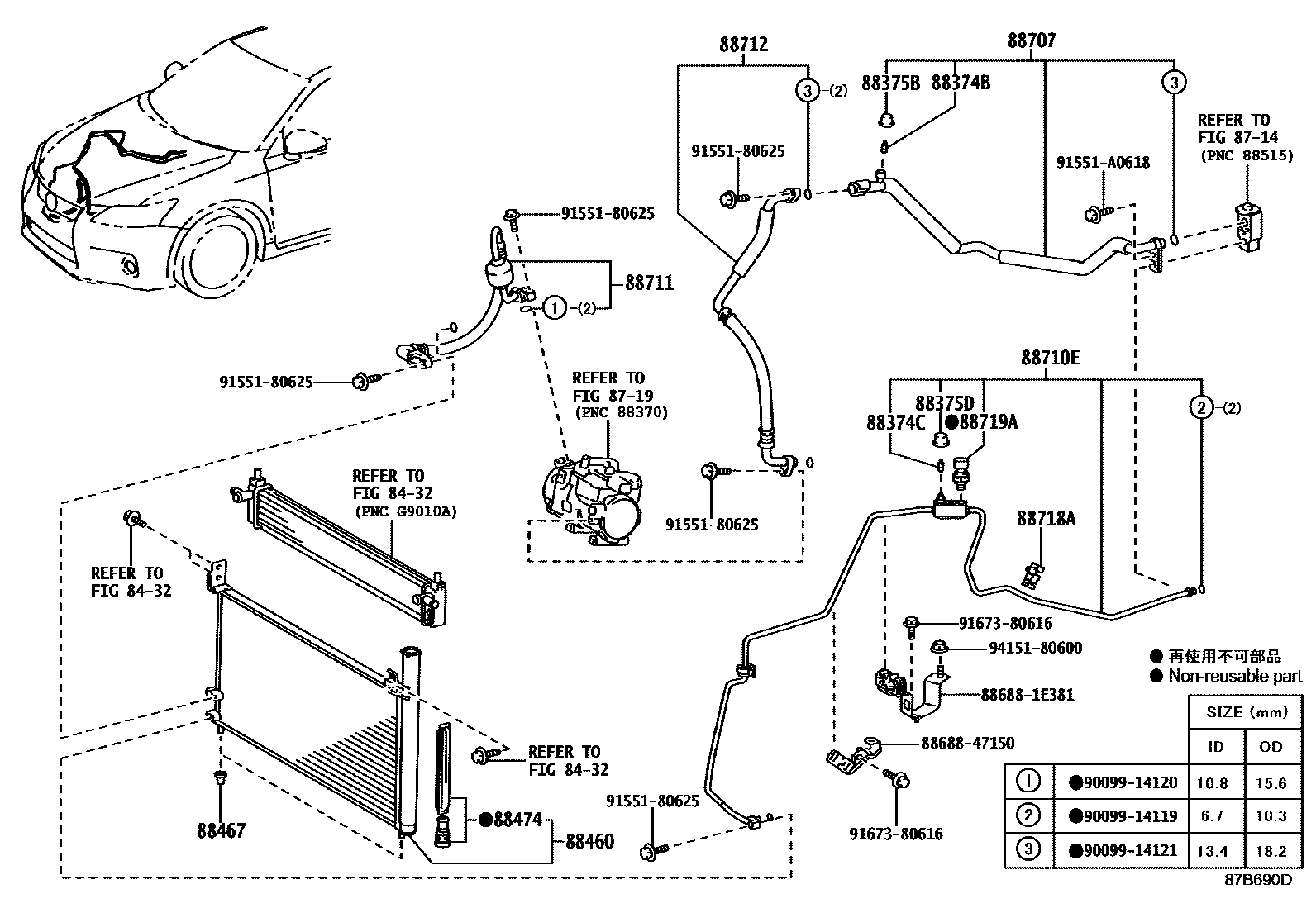

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZWA10..B..CHI201312-202105

88374CVALVE, SERVICE, NO.2

main88374-30010iZWA10201012-201312

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZWA10201012-201312

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZWA10..B..CHI201312-202105

88460CONDENSER ASSY, COOLER

main88460-47170iZWA10201012-201108

main88460-76010iZWA10..ARL,CHI201312-201708

main88460-76020iZWA10..B..CHI201708-202105

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×2iZWA10201012-201312

88474DRYER, COOLER

main88474-47020iZWA10201012-201108

main88474-47030iZWA10201108-201312

88707PIPE SUB-ASSY, SUCTION

main88707-47041iZWA10201012-201312

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-76020iZWA10201012-201312

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47040iZWA10201012-201312

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-76010iZWA10201012-201312

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1E040iZWA10201012-201312

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZWA10201012-201312

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

8868847150BRACKET, COOLER DIAPHRAGM

main88688-47150

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9167380616

main91673-80616

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
