HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

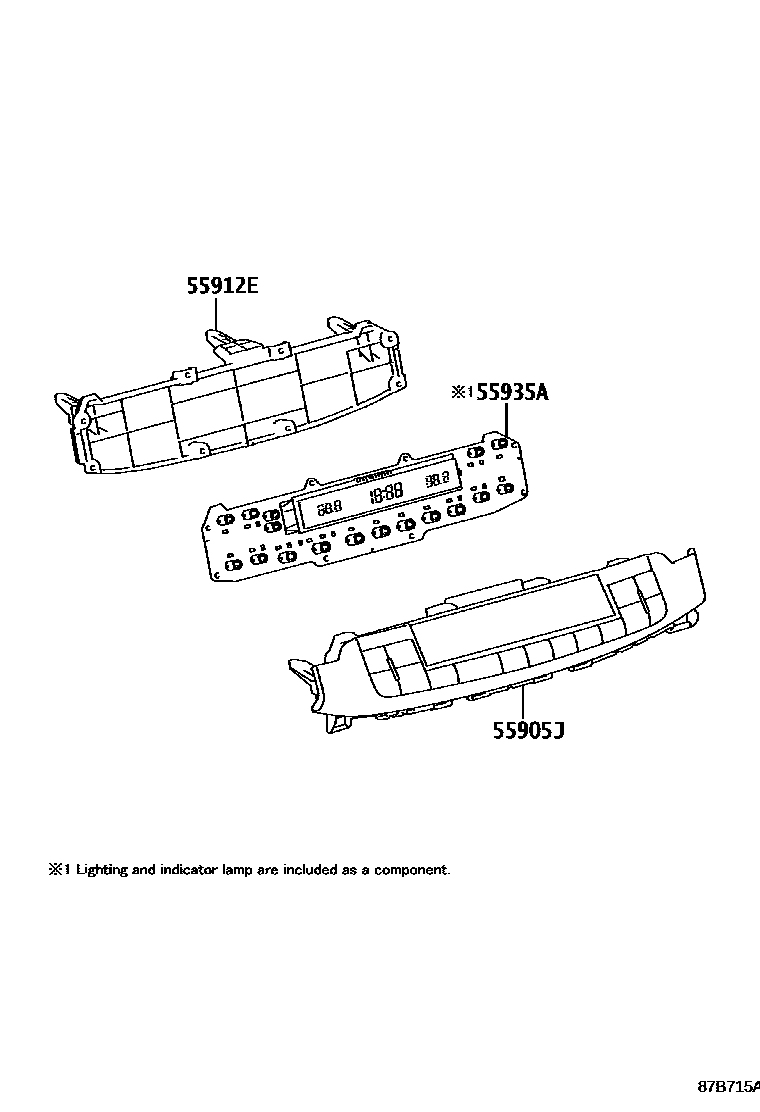

55905JKNOB SUB-ASSY, CONTROL

main55905-76130iZWA10..LHD201312-202105

main55905-76060supersedes 55905-76050iZWA10201012-201312

EMV & NAVIGATION SYSTEM-WITH(DVD)

main55905-76100supersedes 55905-76110iZWA10..ARL201312-202108

EMV & NAVIGATION SYSTEM-WITH

main55905-76140iZWA10..B..CHI201312-201904

EMV & NAVIGATION SYSTEM-WITH

55912EBASE, HEATER CONTROL, LOWER

main55912-76010iZWA10..ARL201312-202108

main55912-76020iZWA10..LHD201312-202105

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-76130iZWA10..LHD201312-202105

main55935-76060supersedes 55935-76050iZWA10201012-201312

EMV & NAVIGATION SYSTEM-WITH(DVD)

main55935-76120supersedes 55935-76110iZWA10..ARL201312-202108

EMV & NAVIGATION SYSTEM-WITH

main55935-76140iZWA10..E;ZWA10..GCC201312-202007

EMV & NAVIGATION SYSTEM-WITH

3 parts on this diagram · 5 diagrams in section
