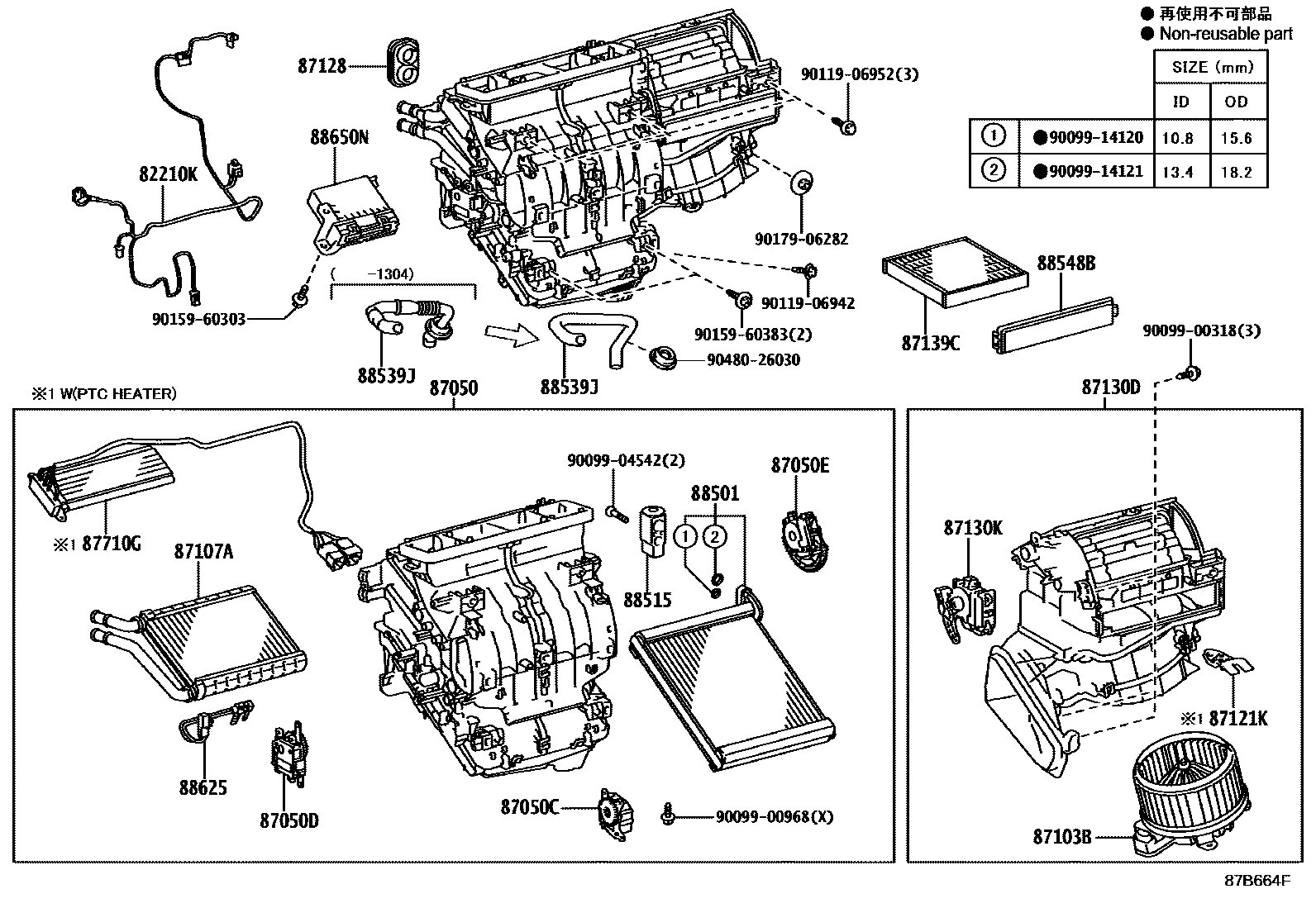

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12030iZWA10201012-201312

main82212-12040iZWA10..ARL201312-202108

87050RADIATOR ASSY, AIR CONDITIONER

main87050-76040iZWA10..ARL201312-201706

main87050-76041iZWA10..ARL201707-202108

main87050-76060iZWA10..CHI201312-201706

main87050-76061iZWA10..CHI201707-202105

main87050-76010supersedes 87050-76051iZWA10201012-201312

COLD AREA SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-12170iZWA10201012-201312

main87106-47170iZWA10..E;ZWA10..ARL,GCC201501-202108

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-42090iZWA10201312-201412

main87106-75010iZWA10..E;ZWA10..ARL,GCC201501-202108

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-42100iZWA10201312-201706

main87106-42190iZWA10..B..CHI201707-202105

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-75021iZWA10201012-201312

main87103-76020iZWA10..ARL201312-202108

main87103-76030iZWA10..CHI201312-202105

main87103-76031iZWA10..GCC201707-202007

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZWA10..E;ZWA10..ARL,GCC201312-202108

87121KBRACKET, HEATER

main87452-76010iZWA10..CHI201312-202105

main87452-76020iZWA10..ARL201312-202108

87128GROMMET, HEATER

main87128-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

87130DBLOWER ASSY

main87130-76060iZWA10..ARL201312-201706

main87130-76061iZWA10..ARL201707-202108

main87130-76080iZWA10..CHI201312-202105

main87130-76010supersedes 87130-76071iZWA10201012-201312

COLD AREA SPEC

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-42120iZWA10..ARL201312-201706

main87106-42150iZWA10..ARL201707-202108

main87106-47130iZWA10201012-201312

main87106-76010iZWA10..LHD201608-202105

87139CFILTER, CLEAN AIR

main87139-30040iZWA10201012-201312

MICRO DUST FILTER,OE PART

main87139-50100iZWA10..B..CHI201312-202105

POLLEN DEODORANT

main87139-76010iZWA10..B..CHI201312-202105

MICRO DUST FILTER,OE PART

87710GQUICK HEATER ASSY

main87710-12010iZWA10..ARL201312-202108

main87710-12020iZWA10..CHI201312-202105

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-75010iZWA10201012-201312

88515VALVE, COOLER EXPANSION

main88515-26070iZWA10201012-201312

main88515-42090iZWA10..B..CHI201312-202105

88539JHOSE, DRAIN COOLER

main88539-12200iZWA10201012-201304

main88539-12210iZWA10..ARL201312-202108

main88539-12230iZWA10..LHD201312-202105

88548BCASE, AIR FILTER

main88548-42010iZWA10..ARL201312-202108

main88548-42020iZWA10201012-201312

88625THERMISTOR, COOLER, NO.1

main88625-26090iZWA10201012-201312

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-76310iZWA10..GCC201312-201508

main88650-76320iZWA10..B..(ARL,CHI)201312-201508

main88650-76400iZWA10..GCC201508-201606

main88650-76410iZWA10..B..(ARL,CHI)201508-201606

main88650-76490iZWA10..GCC201606-201707

main88650-76500iZWA10..B..(ARL,CHI)201606-201707

sub88650-76610

main88650-76600iZWA10..GCC201708-202007

main88650-76090supersedes 88650-76110iZWA10201012-201208

COLD AREA SPEC

main88650-76200supersedes 88650-76220iZWA10201208-201312

COLD AREA SPEC

main88650-76250iZWA10..ARL201312-201508

COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main88650-76290iZWA10..B..CHI201312-201508

WINDSHIELD DEICER-WITH

main88650-76300supersedes 88650-76330iZWA10..E201312-201508

WINDSHIELD DEICER-WITH

main88650-76340iZWA10..ARL201508-201606

COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & CD & *DA & 10SPEAKER

main88650-76380iZWA10..B..CHI201508-201606

WINDSHIELD DEICER-WITH

main88650-76390supersedes 88650-76420iZWA10..E201508-201606

WINDSHIELD DEICER-WITH

main88650-76430iZWA10..ARL201606-201707

COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main88650-76470iZWA10..B..CHI201606-201707

WINDSHIELD DEICER-WITH

main88650-76480supersedes 88650-76510iZWA10..E201606-201707

WINDSHIELD DEICER-WITH

main88650-76540supersedes 88650-76610iZWA10..ARL201708-202108

COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main88650-76580supersedes 88650-76610iZWA10..B..CHI201708-202105

WINDSHIELD DEICER-WITH

main88650-76590supersedes 88650-76620iZWA10..E201708-201903

WINDSHIELD DEICER-WITH

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

30 parts on this diagram · 2 diagrams in section
