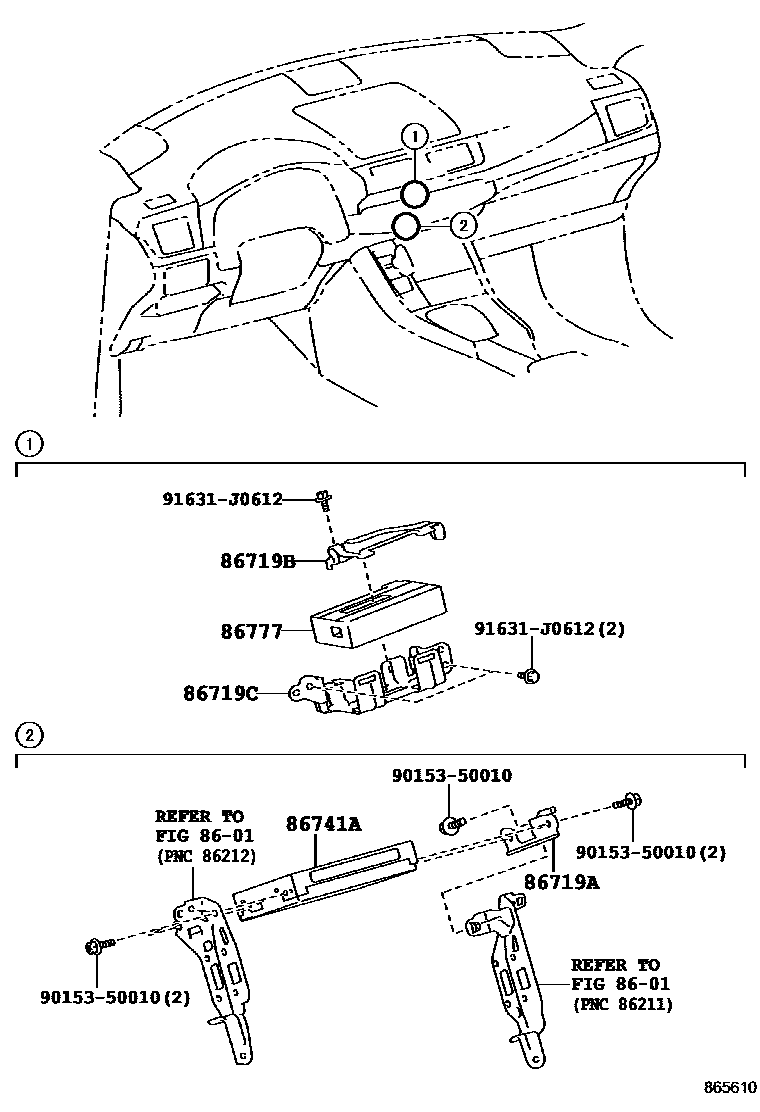

TELEPHONE & MAYDAY
8601
86719ABRACKET, TELEPHONE NO.1
MAYDAY SYSTEM-WITH
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
86719BBRACKET, TELEPHONE NO.2
MAYDAY SYSTEM-WITH
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
86719CBRACKET, TELEPHONE NO.3
MAYDAY SYSTEM-WITH
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
86741ATRANSCEIVER, TELEMATICS
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
sub86741-53094
AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
sub86741-53094
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
86777BATTERY, MAYDAY
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS&AUDIO-AM/FM & DVD & EMV & 13SPEAKER&MAYDAY SYSTEM-WITH
AUDIO-AM/FM & DVD & EMV & 10SPEAKER&MAYDAY SYSTEM-WITH
9015350010
main90153-50010
91631J0612
main91631-J0612
8 parts on this diagram · 1 diagram in section
