SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W150iZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86150-0W150iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86150-76010iZWA10..GCC201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86150-76010iZWA10..CHI201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main86150-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86150-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86150-76010iZWA10201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86150-76010iZWA10201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

86160SPEAKER ASSY, FRONT NO.1

main86160-0WC90iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86160-0WC90iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86160-76050iZWA10201012-201312

main86160-76090iZWA10..B..CHI201312-202108

86160BSPEAKER ASSY, REAR

main86160-76060iZWA10201012-201312

main86160-76080iZWA10..E;ZWA10..ARL,GCC201312-202108

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WU00iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86160-0WU00iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86160-76040iZWA10201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86160-76040iZWA10201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86160-76110iZWA10..GCC201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86160-76110iZWA10..CHI201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main86160-76110iZWA10..E;ZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86160-76110iZWA10..E;ZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

86160LSPEAKER ASSY, FRONT NO.4

main86160-0WL00iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86160-0WL00iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86160-76030iZWA10201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86160-76030iZWA10201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86160-76100iZWA10..GCC201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86160-76100iZWA10..CHI201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main86160-76100iZWA10..ARL201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86160-76100iZWA10..ARL201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WU40iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86160-0WU40iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86160-76030iZWA10201012-201312

main86160-76100iZWA10..B..CHI201312-202108

86160YSPEAKER ASSY, REAR NO.2

main86160-0WU10iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,RH

main86160-0WU10iZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER,RH

main86160-0WU20iZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER,LH

main86160-0WU20iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,LH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-76010iZWA10201012-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86161-76010iZWA10201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86161-76010iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86161-76010iZWA10..B..CHI201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86161-76010iZWA10..GCC201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86161-76010iZWA10..CHI201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main86161-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86161-76010iZWA10201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

9015950311

main90159-50311

9015960303

main90159-60303

9017906308

main90179-06308

9018905175

main90189-05175

9018906227

main90189-06227

9155380614

main91553-80614

9167380616

main91673-80616

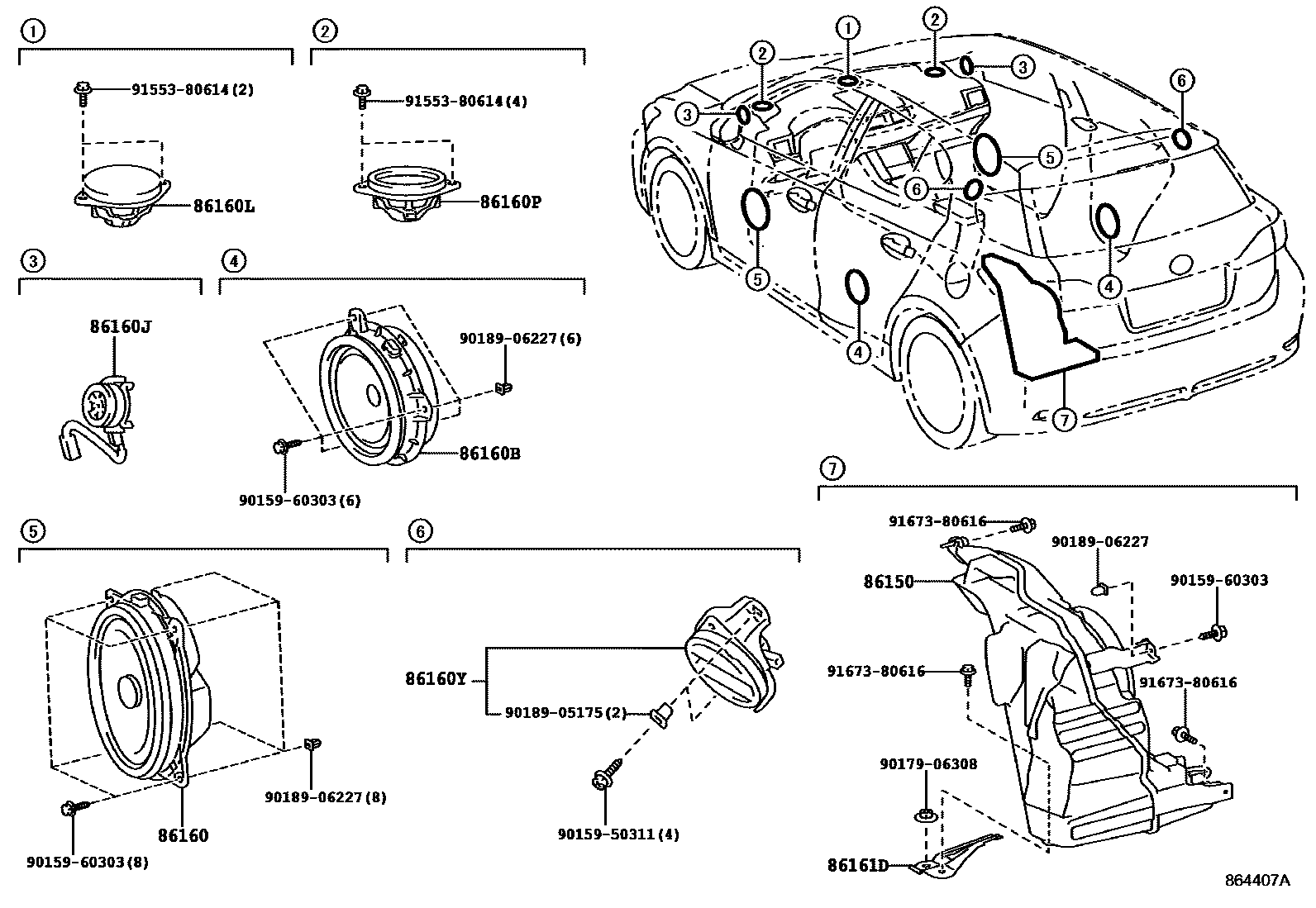

15 parts on this diagram · 1 diagram in section
