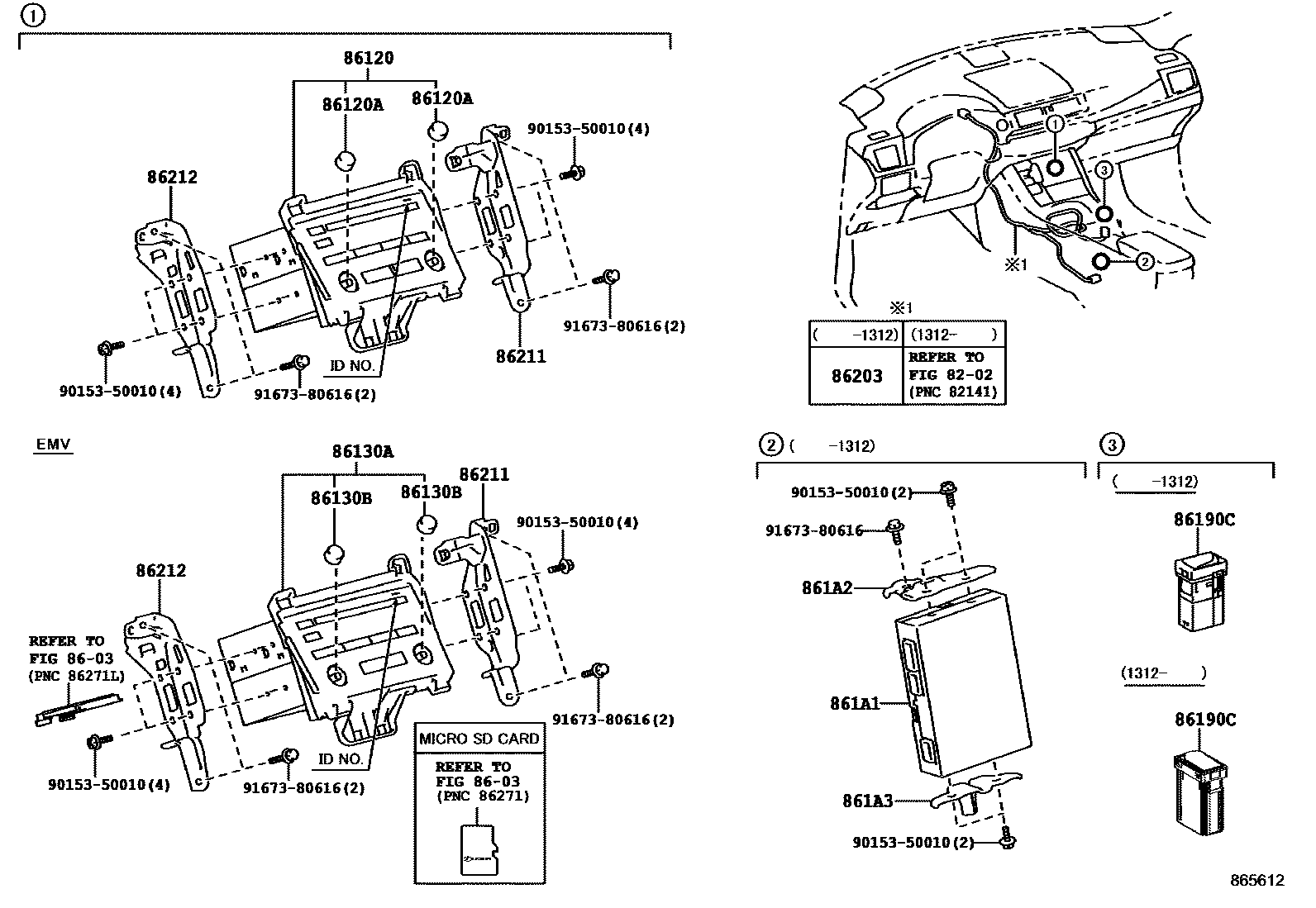

RADIO RECEIVER & AMPLIFIER & CONDENSER

8202

8603

86120RECEIVER ASSY, RADIO

main86120-76070i201012-201208

PANASONIC,ID=52891,TYPE B:REFER ILLUST.

sub86120-76071

main86120-76070i201012-201208

PANASONIC,ID=52891,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),TYPE B:REFER ILLUST.

sub86120-76071

main86120-76070i201012-201208

PANASONIC,ID=52891,AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,TYPE B:REFER ILLUST.

sub86120-76071

main86120-76120i201012-201104

PIONEER,ID=P10028,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),TYPE B:REFER ILLUST.

sub86120-76121

main86120-76121i201208-201312

PIONEER,ID=P10028,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS),TYPE B:REFER ILLUST.

sub86120-76122

main86120-76121i201105-201208

PIONEER,ID=P10028,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),TYPE B:REFER ILLUST.

sub86120-76122

main86120-76510i201012-201104

PIONEER,ID=P10047,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD),TYPE A:REFER ILLUST.

sub86120-76511

main86120-76511i201105-201208

PIONEER,ID=P10047,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD),TYPE A:REFER ILLUST.

sub86120-76512

main86120-76530i201012-201208

PIONEER,ID=P10040,AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&EMV & NAVIGATION SYSTEM-WITH(DVD),TYPE A:REFER ILLUST.

main86120-76570i201208-201312

PANASONIC,ID=528C4,TYPE B:REFER ILLUST.

sub86120-76G40

main86120-76570i201208-201312

PANASONIC,ID=528C4,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),TYPE B:REFER ILLUST.

sub86120-76G40

main86120-76570i201208-201312

PANASONIC,ID=528C4,AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,TYPE B:REFER ILLUST.

sub86120-76G40

main86120-76571i201312-201710

PANASONIC,ID=510007,TYPE B:REFER ILLUST.

sub86120-76572

main86120-76572i201711-202105

PANASONIC,ID=510007,TYPE B:REFER ILLUST.

main86120-76581i201312-201707

PANASONIC,ID=510008,TYPE B:REFER ILLUST.

sub86120-76582

main86120-76582i201708-202108

PANASONIC,ID=510008,TYPE B:REFER ILLUST.

main86140-76070i201708-202007

FUJITSU TEN,ID100774,AUDIO-*DA & DVD & 10SPEAKER,TYPE A:REFER ILLUST.

main86140-76080i201708-201904

FUJITSU TEN,ID100770,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,TYPE A:REFER ILLUST.

main86140-76200i201312-202108

FUJITSU TEN,ID100290,AUDIO-AM/FM & CD & *DA & 10SPEAKER&SATELLITE RADIO-WITH(DAB),TYPE A:REFER ILLUST.

main86140-76210i201312-202108

FUJITSU TEN,ID100299,AUDIO-AM/FM & CD & *DA & 10SPEAKER,TYPE A:REFER ILLUST.

main86140-76220i201312-201708

FUJITSU TEN,ID100294,AUDIO-*DA & DVD & 10SPEAKER,TYPE A:REFER ILLUST.

main86140-76230i201312-201708

FUJITSU TEN,ID100289,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,TYPE A:REFER ILLUST.

sub86140-76231

main86140-76E30i201904-202009

DENSO TEN,ID100881,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,TYPE A:REFER ILLUST.

sub86140-76E31

main86140-76E31i202010-202105

DENSO TEN,ID100881,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,TYPE A:REFER ILLUST.

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23045i201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main90010-23045i201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main90010-23045i201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main90010-23045i201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main90010-24148i201312-202108

86130ARECEIVER ASSY, MULTI-MEDIA MODULE

main86804-76200i201208-201312

FUJITSU TEN,ID100136,AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86804-76210i201208-201312

FUJITSU TEN,ID100137,AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86804-76430i201312-201408

PIONEER,ID=P10556,AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

sub86804-76431

main86804-76431i201409-201606

PIONEER,ID=P10556,AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76440i201312-201408

PIONEER,ID=P10557,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

sub86804-76441

main86804-76441i201409-201606

PIONEER,ID=P10557,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76450i201312-201408

PIONEER,ID=P10558,AUDIO-AM/FM & DVD & EMV & 13SPEAKER&SATELLITE RADIO-WITH(DAB)

sub86804-76451

main86804-76451i201409-201606

PIONEER,ID=P10558,AUDIO-AM/FM & DVD & EMV & 13SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76460i201312-201408

PIONEER,ID=P10559,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

sub86804-76461

main86804-76461i201409-201606

PIONEER,ID=P10559,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76470i201312-201503

PIONEER,ID=P10560,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76471i201503-201606

PIONEER,ID=P11284,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76480i201312-201503

PIONEER,ID=P10561,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76481i201503-201606

PIONEER,ID=P11277,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76490i201312-201606

PIONEER,ID=P10562,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

sub86804-76491

main86804-76500i201312-201606

PIONEER,ID=P10563,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

sub86804-76501

main86804-76720i201708-202108

PIONEER,ID=P11634,AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76730i201708-202108

PIONEER,ID=P11616,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76890i201606-201708

PIONEER,ID=P11438,AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76A00i201606-201708

PIONEER,ID=P11420,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76A10i201606-201708

PIONEER,ID=P11429,AUDIO-AM/FM & DVD & EMV & 13SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76A20i201606-201708

PIONEER,ID=P11417,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76A30i201606-201708

PIONEER,ID=P11442,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76A40i201606-201708

PIONEER,ID=P11432,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76A50i201606-201708

PIONEER,ID=P11440,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

sub86804-76A51

main86804-76A60i201606-201708

PIONEER,ID=P11430,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

sub86804-76A61

main86804-76C60i201708-202108

PIONEER,ID=P11625,AUDIO-AM/FM & DVD & EMV & 13SPEAKER&SATELLITE RADIO-WITH(DAB)

main86804-76C70i201708-202108

PIONEER,ID=P11613,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76C80i201708-202007

PIONEER,ID=P11638,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76C90i201708-202007

PIONEER,ID=P11628,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86804-76D00i201708-201904

PIONEER,ID=P11636,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86804-76D10i201708-201904

PIONEER,ID=P11626,AUDIO-AM/FM & DVD & EMV & 13SPEAKER

86130BKNOB, RECEIVER SWITCH

main90010-22100i201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER&SATELLITE RADIO-WITH(DAB)

main90010-22100i201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main90010-22100i201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main90010-22100i201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main90010-23039i201307-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main90010-23039i201307-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-47020i201312-202108

main86190-48030i201012-201312

main86190-76040i201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86190-76040i201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86190-76040i201708-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86190-76040i201312-201708

AUDIO-AM/FM & CD & *DA & 10SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR)

main86190-76040i201312-201708

AUDIO-AM/FM & DVD & EMV & 10SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR)

main86190-76040i201312-201708

AUDIO-AM/FM & DVD & EMV & 10SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR & IPOD HOLDER)

main86190-76040i201312-201708

AUDIO-AM/FM & DVD & EMV & 13SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR)

main86190-76040i201312-201708

AUDIO-AM/FM & DVD & EMV & 13SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR & IPOD HOLDER)

main86190-76040i201312-201708

AUDIO-AM/FM & CD & *DA & 10SPEAKER&AUDIO JACK-WITH(AUX & USB & VTR & IPOD HOLDER)

main86190-76040i201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86190-76040i201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

861A1COMPUTER, MULTI-MEDIA INTERFACE

main861A0-48030i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub861A0-48031

main861A0-48030i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

sub861A0-48031

main861A0-77010i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&EMV & NAVIGATION SYSTEM-WITH(DVD)

sub861A0-77011

main861A0-77010i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD)

sub861A0-77011

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-76020i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&EMV & NAVIGATION SYSTEM-WITH(DVD)

main861A2-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main861A2-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD)

main861A2-76020i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-76020i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&EMV & NAVIGATION SYSTEM-WITH(DVD)

main861A3-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main861A3-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD)

main861A3-76020i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

86203WIRE, RADIO

main86203-76020i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR&EMV & NAVIGATION SYSTEM-WITH(DVD)

main86203-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86203-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD)

main86203-76020i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86203-76040i201012-201312

main86203-76060i201208-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86203-76060i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

86211BRACKET, RADIO, NO.1

main86211-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86211-76020i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86211-76020i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86211-76030i201312-202108

main86211-76050i201012-202105

main86211-76070i201312-202007

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86211-76070i201312-202007

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86211-76080i201208-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86211-76080i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86211-76090i201312-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86211-76090i201312-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86211-76100i201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86211-76110i201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86211-76110i201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

86212BRACKET, RADIO, NO.2

main86212-76020i201012-201208

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86212-76020i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86212-76020i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86212-76030i201312-202108

main86212-76050i201012-202105

main86212-76070i201312-202007

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86212-76070i201312-202007

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86212-76080i201208-201312

AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR

main86212-76080i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86212-76090i201312-201606

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86212-76090i201312-201606

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86212-76100i201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER

main86212-76110i201312-202105

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER

main86212-76110i201312-202007

AUDIO-*DA & DVD & 10SPEAKER

main86212-76140i201606-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER

main86212-76140i201606-202108

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

9015350010

main90153-50010

9167380616

main91673-80616

15 parts on this diagram · 7 diagrams in section
