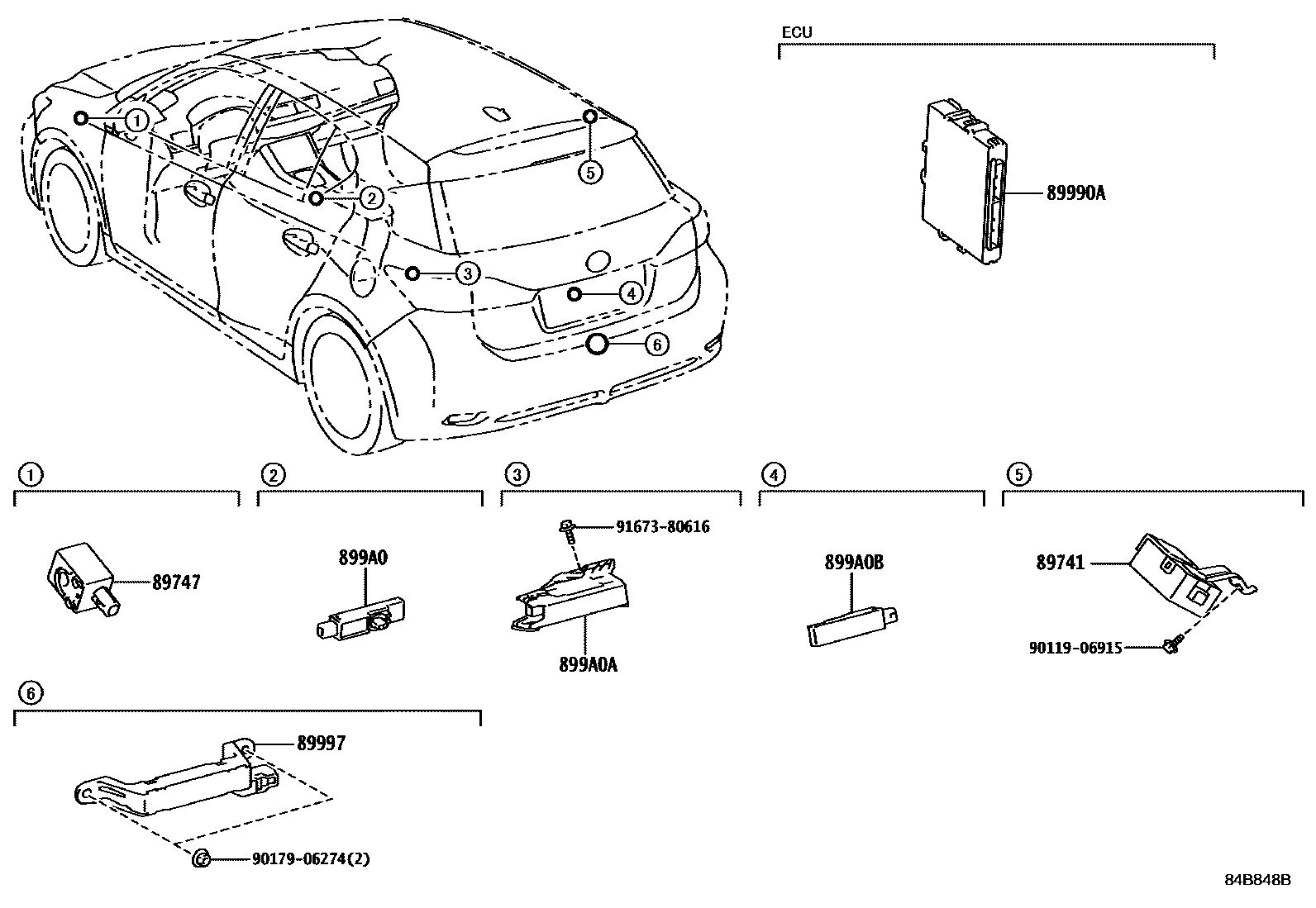

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-76010iZWA10..ARL201312-201703

main89740-76011iZWA10..ARL201704-202108

main89740-76020iZWA10201012-201107

main89740-76021iZWA10..GCC201312-201512

main89740-76022iZWA10..GCC201601-202007

main89740-76040iZWA10..CHI201312-202105

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZWA10201012-201312

89990ACOMPUTER ASSY, SMART KEY

main89990-76060iZWA10..ARL,CHI201312-201508

GCC SPEC

sub89990-76061

main89990-76100iZWA10..ARL,CHI201508-201601

GCC SPEC

main89990-76101supersedes 89990-76040iZWA10..ARL,CHI201602-201707

GCC SPEC

main89990-76102iZWA10201708-201710

main89990-76103iZWA10201711-201809

sub89990-76104

main89990-76220iZWA10201809-202105

sub89990-76221

main89990-76010supersedes 89990-76040iZWA10201012-201106

GCC SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

main89990-76011supersedes 89990-76040iZWA10201107-201207

GCC SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

main89990-76012supersedes 89990-76040iZWA10201208-201312

GCC SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

sub89990-76013

main89990-76020supersedes 89990-76040iZWA10201012-201207

GCC SPEC

main89990-76021supersedes 89990-76040iZWA10201208-201312

GCC SPEC

sub89990-76022

main89990-76030supersedes 89990-76040iZWA10201012-201312

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

sub89990-76031

main89990-76050iZWA10..CHI201312-201508

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

sub89990-76051

main89990-76070supersedes 89990-76080iZWA10..GCC201312-201508

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

sub89990-76071

main89990-76090supersedes 89990-76120iZWA10..CHI201508-201601

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76091iZWA10..CHI201602-201707

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76092iZWA10..CHI201708-201710

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76093iZWA10..CHI201711-201809

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

sub89990-76094

main89990-76110supersedes 89990-76120iZWA10..GCC201508-201612

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76111supersedes 89990-76121iZWA10..GCC201708-201809

JORDAN, LEBANON SPEC&SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76210iZWA10..CHI201809-202105

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76211supersedes 89990-76221iZWA10..ARL202106-202108

SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76230iZWA10..GCC201809-202007

JORDAN, LEBANON SPEC&SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)

main89990-76240iZWA10..GCC201809-202007

JORDAN, LEBANON SPEC

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZWA10201012-201312

WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZWA10..B..CHI201312-202105

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020iZWA10..E;ZWA10..ARL,GCC201312-202108

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iZWA10201012-201312

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
