WIRING & CLAMP

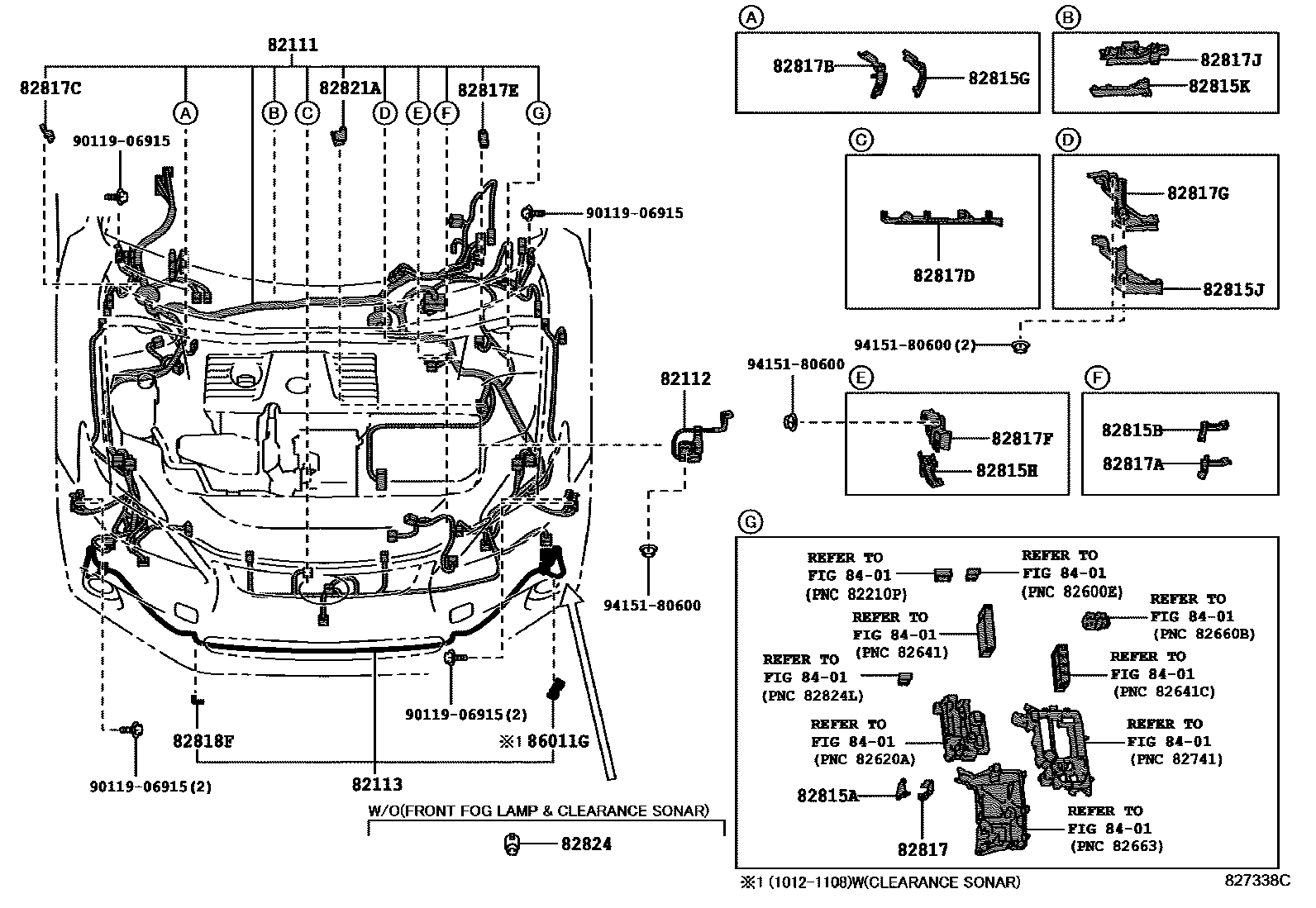

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-76200supersedes 82111-76190i201012-201312
HEAD LAMP-LED
main82111-76250supersedes 82111-76190i201012-201312
COLD AREA SPEC
main82111-76260supersedes 82111-76190i201012-201312
COLD AREA SPEC&HEAD LAMP-LED
main82111-76350supersedes 82111-76340i201312-201408
HEADLAMP-LED
main82111-76351supersedes 82111-76341i201408-201508
HEADLAMP-LED
main82111-76440supersedes 82111-76340i201312-201408
FRONT FOG LAMP-WITH(BULB)
main82111-76441supersedes 82111-76341i201408-201508
FRONT FOG LAMP-WITH(BULB)
main82111-76450supersedes 82111-76340i201312-201408
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76451supersedes 82111-76341i201408-201508
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76460supersedes 82111-76360i201312-201408
FRONT FOG LAMP-WITH(BULB)
main82111-76461supersedes 82111-76361i201408-201508
FRONT FOG LAMP-WITH(BULB)
main82111-76470supersedes 82111-76380i201312-201408
FRONT FOG LAMP-WITH(LED)
main82111-76471supersedes 82111-76381i201408-201508
FRONT FOG LAMP-WITH(LED)
main82111-76510supersedes 82111-76500i201708-201904
HEADLAMP-LED
main82111-76590i201809-201904
HEADLAMP-LED&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76670supersedes 82111-76660i201508-201606
HEADLAMP-LED
main82111-76720supersedes 82111-76660i201508-201606
FRONT FOG LAMP-WITH(BULB)
main82111-76730supersedes 82111-76660i201508-201606
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76740supersedes 82111-76680i201508-201606
FRONT FOG LAMP-WITH(BULB)
main82111-76750supersedes 82111-76700i201508-201606
FRONT FOG LAMP-WITH(LED)
main82111-76A00supersedes 82111-76890i201606-201708
HEADLAMP-LED
main82111-76A50supersedes 82111-76890i201606-201708
FRONT FOG LAMP-WITH(BULB)
main82111-76A60supersedes 82111-76890i201606-201708
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76A70supersedes 82111-76A10i201606-201708
FRONT FOG LAMP-WITH(BULB)
main82111-76A80supersedes 82111-76A30i201606-201708
FRONT FOG LAMP-WITH(LED)
main82111-76C10supersedes 82111-76500i201708-201904
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76C20supersedes 82111-76B80i201708-201809
FRONT FOG LAMP-WITH(LED)
main82111-76C30supersedes 82111-76C00i201708-201904
FRONT FOG LAMP-WITH(LED)
main82111-76C90supersedes 82111-76500i201708-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)
main82111-76D00supersedes 82111-76500i201708-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main82111-76D10supersedes 82111-76500i201708-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76D50i201708-201809
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76D60i201708-201809
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76D70i201708-201809
HEADLAMP-LED&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76D80supersedes 82111-76B80i201708-201809
HEADLAMP-LED
main82111-76E20supersedes 82111-76500i201708-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(LED)
main82111-76E30supersedes 82111-76500i201708-201904
FRONT FOG LAMP-WITH(LED)
main82111-76K30supersedes 82111-76580i201809-201904
HEADLAMP-LED
main82111-76K40supersedes 82111-76580i201809-201904
FRONT FOG LAMP-WITH(LED)
main82111-76K50i201809-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76K60i201809-201904
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76L10supersedes 82111-76L00i201904-202108
HEADLAMP-LED
main82111-76L50supersedes 82111-76L00i201904-202108
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76L60supersedes 82111-76L20i201904-201910
FRONT FOG LAMP-WITH(LED)
main82111-76L61supersedes 82111-76L21i201910-202105
FRONT FOG LAMP-WITH(LED)
main82111-76L70supersedes 82111-76L40i201904-202007
FRONT FOG LAMP-WITH(LED)
main82111-76M30supersedes 82111-76L00i201904-202108
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)
main82111-76M50supersedes 82111-76L00i201904-202108
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
main82111-76M60supersedes 82111-76L00i201904-202108
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76M70supersedes 82111-76L20i201904-201910
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76M71supersedes 82111-76L21i201910-202105
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76M90supersedes 82111-76L20i201904-201910
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76M91supersedes 82111-76L21i201910-202105
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76N30supersedes 82111-76L00i201904-202108
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&HEADLAMP-HALOGEN & WITH(AUTOMATICHIGH BEAM)&FRONT FOG LAMP-WITH(LED) & F SPORT
main82111-76N40supersedes 82111-76L00i201904-202108
FRONT FOG LAMP-WITH(LED)
main82111-76N80supersedes 82111-76L20i201904-201910
HEADLAMP-LED&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76N81supersedes 82111-76L21i201910-202105
HEADLAMP-LED&FRONT FOG LAMP-WITH(BULB) & F SPORT
main82111-76N90supersedes 82111-76L20i201904-201910
HEADLAMP-LED
main82111-76N91supersedes 82111-76L21i201910-202105
HEADLAMP-LED
82112WIRE, ENGINE ROOM, NO.2
main82112-47030i201312-202108
82113WIRE, ENGINE ROOM, NO.3
main82113-76010i201012-201108
CLEARANCE & BACK SONAR-WITH
main82113-76011i201108-201312
CLEARANCE & BACK SONAR-WITH
main82113-76020i201012-201312
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
main82113-76030i201012-201108
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main82113-76031i201108-201312
FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
main82113-76040i201312-202008
CLEARANCE & BACK SONAR-WITH
main82113-76110i202008-202105
CLEARANCE & BACK SONAR-WITH
82815ACOVER, WIRING HARNESS PROTECTOR
main82815-47390i201012-201312
82815BCOVER, WIRING HARNESS PROTECTOR
main82815-76080i201312-202105
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
main82815-76160i201012-201312
82815HCOVER, WIRING HARNESS PROTECTOR NO.6
main82815-47570i201312-202108
main82815-47600i201012-201312
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
main82815-47610i201012-201312
main82815-76150i201312-202108
82815KCOVER, WIRING HARNESS PROTECTOR, NO.8
main82815-47620i201012-201312
main82815-76170i201312-202108
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-47620i201312-202105
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-76230i201012-201312
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-76370i201312-202108
82817CPROTECTOR, WIRING HARNESS, NO.4
main82817-76110i201012-201312
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-76120i201312-202105
82817EPROTECTOR, WIRING HARNESS, NO.6
main82817-76130i201012-201312
82817FPROTECTOR, WIRING HARNESS, NO.7
main82817-47810i201312-202108
main82817-47850i201312-202105
82817GPROTECTOR, WIRING HARNESS, NO.8
main82817-47860i201012-201312
main82817-76360i201312-202108
82817JPROTECTOR, WIRING HARNESS, NO.9
main82817-47870i201312-202105
main82817-76380i201312-202108
82818PROTECTOR, WIRING HARNESS, NO.2
main82817-47700i201012-201312
main82817-76390i201312-202108
82818FPROTECTOR, WIRING HARNESS, NO.7
main82817-12860i201012-201312
CLEARANCE & BACK SONAR-WITH
82821ACOVER, CONNECTOR
main82821-76010i201312-202105
82824CONNECTOR, WIRING HARNESS
main82824-76110supersedes 82824-76110i201312-202105
8401
86011GCONDENSER
main90980-04206i201012-201108
CLEARANCE & BACK SONAR-WITH
9011906915
main90119-06915
9415180600
main94151-80600

26 parts on this diagram · 17 diagrams in section
