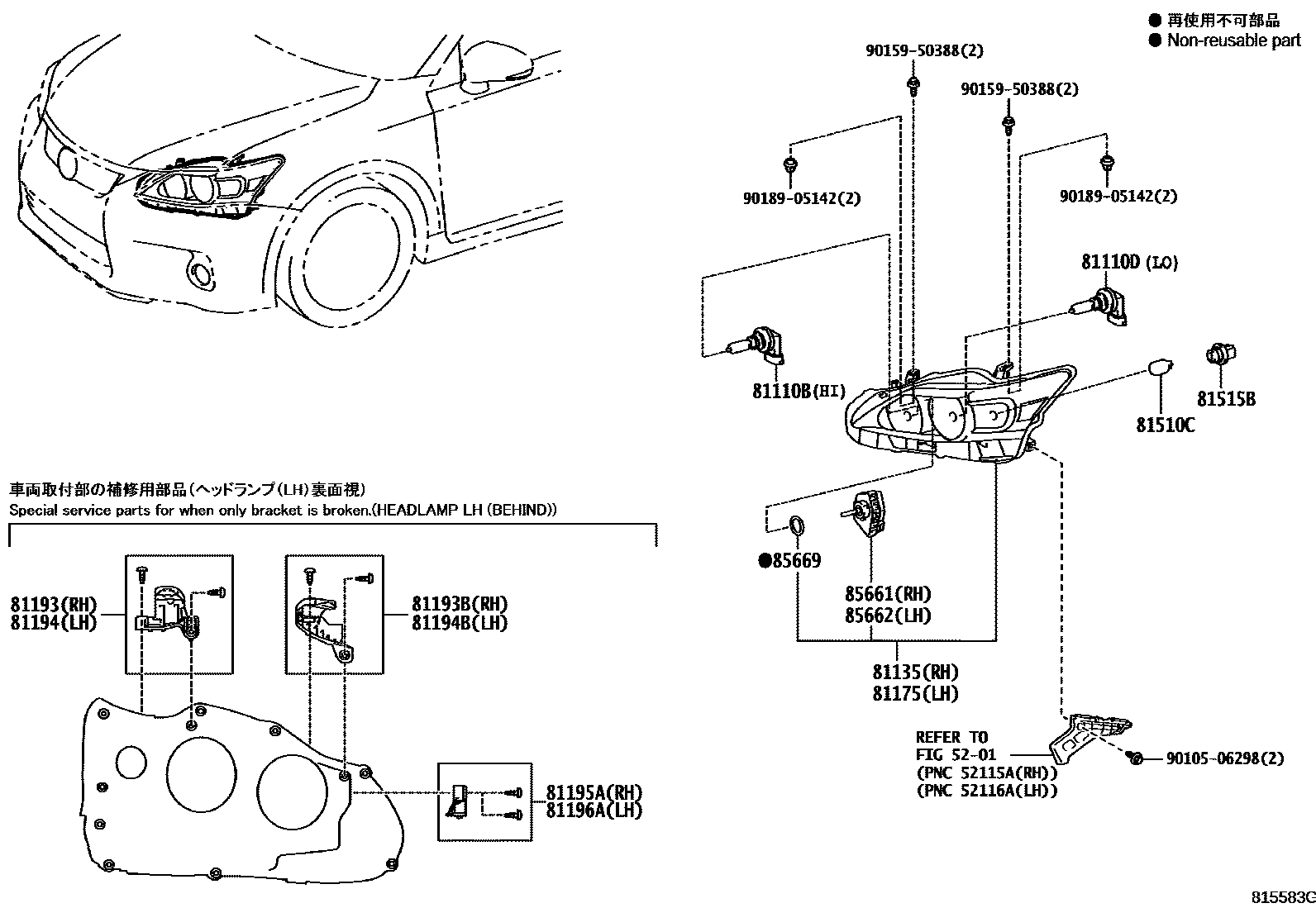

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP 0003 1LED HEADLAMP 0004 1LED HEADLAMP

5201

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13084×2iZWA10201012-201312

12V 65W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13085×2iZWA10201012-201312

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81105-76190iZWA10..CHI201708-201903

HEADLAMP-LED

main81105-76191iZWA10..GCC201903-202007

main81130-76021iZWA10..ARL201312-201609

main81130-76022iZWA10..ARL201609-202108

main81130-76032iZWA10..CHI201312-201609

main81130-76033iZWA10..CHI201609-202105

main81145-76150iZWA10..GCC201312-201708

main81105-76200iZWA10..ARL201708-201903

HEADLAMP-LED

main81105-76201iZWA10..ARL201903-202108

HEADLAMP-LED

main81145-76060supersedes 81130-76030iZWA10201012-201108

HEAD LAMP-LED

main81145-76061supersedes 81130-76031iZWA10201108-201312

HEAD LAMP-LED

main81145-76140iZWA10..ARL201312-201708

HEADLAMP-LED

81175UNIT ASSY, HEADLAMP, LH

main81106-76190iZWA10..CHI201708-201903

HEADLAMP-LED

main81106-76191iZWA10..GCC201903-202007

main81170-76021iZWA10..ARL201312-201609

main81170-76022iZWA10..ARL201609-202108

main81170-76032iZWA10..CHI201312-201609

main81170-76033iZWA10..CHI201609-202105

main81185-76150iZWA10..GCC201312-201708

main81106-76200iZWA10..ARL201708-201903

HEADLAMP-LED

main81106-76201iZWA10..ARL201903-202108

HEADLAMP-LED

main81185-76060supersedes 81170-76030iZWA10201012-201108

HEAD LAMP-LED

main81185-76061supersedes 81170-76031iZWA10201108-201312

HEAD LAMP-LED

main81185-76140iZWA10..ARL201312-201708

HEADLAMP-LED

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-76010iZWA10201012-201312

main81193-76030iZWA10..GCC201708-202007

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-76020iZWA10..E;ZWA10..ARL,GCC201312-202108

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-76010iZWA10..E;ZWA10..ARL201312-202108

main81194-76030iZWA10..GCC201708-202007

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-76020iZWA10201012-201312

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-76010iZWA10201012-201312

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-76010iZWA10201012-201312

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZWA10201012-201312

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iZWA10201012-201312

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iZWA10..E;ZWA10..ARL201312-202108

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iZWA10..B..CHI201312-202105

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iZWA10..E;ZWA10..ARL,GCC201312-202108

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

19 parts on this diagram · 4 diagrams in section
