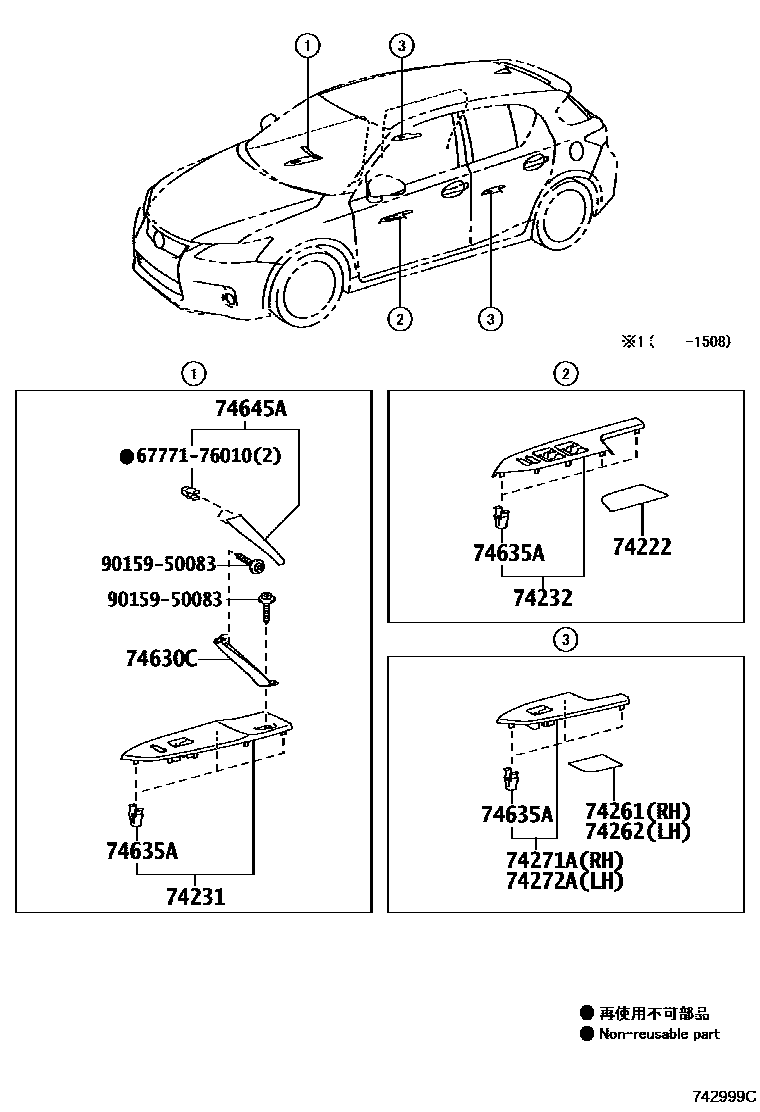

ARMREST & VISOR
74222COVER, DOOR ARMREST, LH
74231PANEL, FRONT ARMREST BASE, UPPER RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74261COVER, REAR DOOR ARMREST, RH
74262COVER, REAR DOOR ARMREST, LH
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
74630CGRIP ASSY, DOOR ASSIST, RH
ORNAMENT SILVER,TRIM0#,2#,3#,4#,8#
SILVER,TRIM0#,2#,3#,4#,5#,8#
SILVER,TRIM0#,1#,2#,3#,4#,5#,6#,8#
74635ACLIP
74645ACOVER, DOOR ASSIST GRIP, RH
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
6777176010WEATHERSTRIP, BACK DOOR TRIM, RH
9015950083
12 parts on this diagram · 3 diagrams in section
