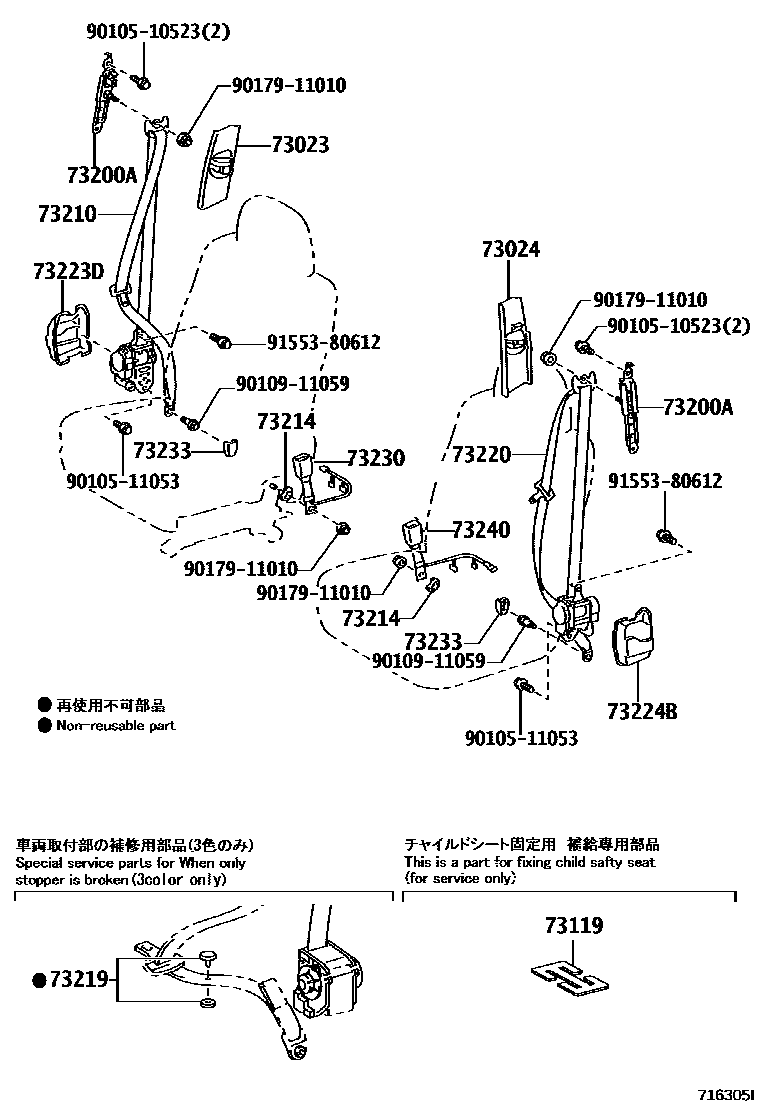

SEAT BELT & CHILD RESTRAINT SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-A3i201312-202108

ECRU,TRIM0#,20,22,30,36,4#,5#,6#,80

main73023-53020-B0i201012-201312

LT.GRAY,TRIM0#,20,21,22,23,30,40,80

main73023-53020-C0i201012-201312

BLACK,TRIM0#,2#,30,31,40,42,80,81

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-A3i201312-201903

ECRU,TRIM0#,2#,3#,4#,5#,8#

main73024-53020-B0i201012-201312

LT.GRAY,TRIM0#,20,21,22,23,30,40,80

main73024-53020-C0i201312-202105

BLACK,TRIM03,04,1#,20,23,3#,42,81,83

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010i201312-202108

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2i201505-202108

main73200-53010×2i201312-201504

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76052-A0i201312-201508

SEAT COVER MATERIAL-LEATHER,ECRU/BLACK,TRIM0#,2#,5#

main73210-76090-A0i201312-201508

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73210-76130-A0i201508-201606

SEAT COVER MATERIAL-NEW VINYL&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM0#,20,4#,5#,6#

main73210-76130-C0i201508-201606

BLACK,TRIM1#,20,31,81

main73210-76131-A0i201606-202105

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,02,20,22,36,4#,5#,6#

main73210-76131-C0i201606-202105

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM03,04,1#,20,23,31,35,38,42,8#

main73210-76150-A0i201508-201606

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM0#,20,5#

main73210-76151-A0i201606-202108

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM01,02,20,22,4#,5#

main73210-76062-A0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU/BLACK,TRIM0#,2#,3#,4#,5#,8#

main73210-76062-C0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM20,3#

main73210-76090-C0i201312-201508

SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAYPOWER,BLACK/BLACK,TRIM1#,20,3#,8#

main73210-76100-A0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM0#,20,4#,5#,6#

main73210-76100-C0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM1#,20,3#,8

main73210-76140-A0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU,TRIM0#,20,30,4#,5#,80

main73210-76140-C0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM1#,20,3#,8#

main73210-76141-A0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU,TRIM0#,20,30,4#,5#,80

main73210-76141-C0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM1#,20,3#,8#

main73210-76150-C0i201508-201606

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM20,3#

main73210-76151-C0i201606-202108

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM03,04,20,23,3#

main73210-76160-A0supersedes 73210-76150-A0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM0#,20,5#

main73210-76160-C0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM20,3#

main73210-76161-A0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM0#,20,5#

main73210-76161-C0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM20,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2i201105-201312

73219STOPPER, TONGUE PLATE

main73219-33010i201012-201312

BLACK

main73219-33020i201312-202105

GRAY

main73219-33030i201012-201312

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76070-B0i201012-201301

SEAT COVER MATERIAL-LEATHER(F-SPORT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM00,01,20

main73220-76070-C0i201012-201301

BLACK/BLACK,TRIM00,20,23,30,40,80

main73220-76071-B0i201302-201305

BLACK/LT.GRAY,TRIM00,20,30,40,80

main73220-76071-C0i201302-201305

BLACK/BLACK,TRIM00,20,23,30,40,80

main73220-76072-A0i201312-201508

SEAT COVER MATERIAL-LEATHER,ECRU/BLACK,TRIM0#,2#,5#

main73220-76072-B0i201306-201312

BLACK/LT.GRAY,TRIM00,20,30,40,80

main73220-76072-C0i201306-201312

BLACK/BLACK,TRIM00,20,23,30,40,80

main73220-76090-A0i201312-201508

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73220-76110-A0i201508-201606

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM0#,20,5#

main73220-76111-A0i201606-202108

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM01,02,20,22,4#,5#

main73220-76130-A0i201508-201606

SEAT COVER MATERIAL-NEW VINYL&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,ECRU,TRIM0#,20,4#,5#,6#

main73220-76130-C0i201508-201606

BLACK,TRIM1#,20,31,81

main73220-76131-A0i201606-202105

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,ECRU,TRIM00,01,02,20,22,36,4#,5#,6#

main73220-76131-C0i201606-202105

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM03,04,1#,20,23,31,35,38,42,8#

main73220-76082-A0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU/BLACK,TRIM0#,2#,3#,4#,5#,8#

main73220-76082-C0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM20,3#

main73220-76090-C0i201312-201508

SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAYPOWER,BLACK/BLACK,TRIM1#,20,3#,8#

main73220-76100-A0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM0#,20,4#,5#,6#

main73220-76100-C0i201312-201508

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK/BLACK,TRIM1#,20,3#,8

main73220-76110-C0i201508-201606

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAYPOWER,BLACK,TRIM20,3#

main73220-76111-C0i201606-202108

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM03,04,20,23,3#

main73220-76120-A0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,ECRU,TRIM0#,20,5#

main73220-76120-C0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM20,3#

main73220-76121-A0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER,ECRU,TRIM0#,2#,5#

main73220-76121-C0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM20,3#

main73220-76140-A0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU,TRIM0#,20,30,4#,5#,80

main73220-76140-C0i201508-201606

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM1#,20,3#,8#

main73220-76141-A0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),ECRU,TRIM0#,20,30,4#,5#,80

main73220-76141-C0i201606-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-FABRIC(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAY POWER,BLACK,TRIM1#,20,3#,8#

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-76010i201312-202105

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-76010i201312-202108

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-76020-C0i201312-201508

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73230-76170-C0i201508-202108

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73240-76010-C0i201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

main73240-76090-C0i201508-202105

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

main73230-76030-C0i201312-201508

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,5#,8#

main73230-76040-C0i201312-201508

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM0#,2#,4#,5#,6#

main73230-76180-C0i201708-202108

SEAT COVER MATERIAL-NEW VINYL,BLACK,TRIM0#,2#,3#,4#,5#

main73230-76190-C0i201508-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,2#,3#,5#

main73240-76050-C0i201312-201508

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAYPOWER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

main73240-76100-C0i201508-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,4#,5

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2i201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

sub73233-35010

main73233-60020-C1×2i201610

BLACK

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-76100-C0i201312-201508

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73230-76150-C0i201508-202105

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

main73240-76030-C0i201312-201508

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73240-76110-C0i201508-202108

BLACK,TRIM0#,2#,3#,4#,5#,8#

main73230-76070-C0supersedes 73230-76100-C0i201012-201312

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,8#

main73230-76110-C0i201312-201508

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:4WAYPOWER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

main73230-76140-C0i201508-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,4#,5

main73230-76210-C0i201508-202007

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,8#

main73240-76040-C0i201312-201508

SEAT COVER MATERIAL-LEATHER(F-SPORT)&FRONT SEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,1#,2#,3#,5#,8#

main73240-76120-C0i201508-201708

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-LEATHER&FRONTSEAT ADJUSTER-*DRS:8WAY POWER & MEMORY/*PAS:4WAY POWER,BLACK,TRIM0#,2#,3#,5#

9010510523

main90105-10523

9010511053

main90105-11053

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 2 diagrams in section
