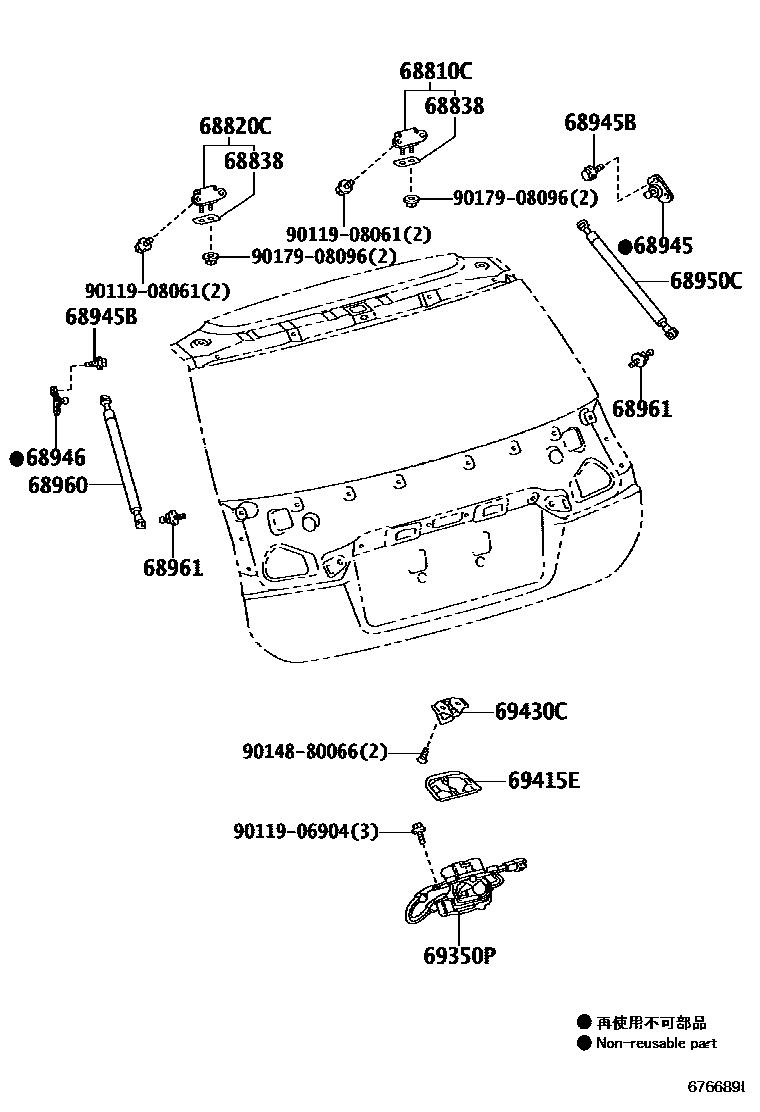

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iZWA10201012-201312

sub68810-47011

main68810-76010iZWA10201312-201512

main68810-76011iZWA10..B..CHI201601-202105

68820CHINGE ASSY, BACK DOOR, LH

main68810-47010iZWA10201012-201312

sub68810-47011

main68810-76010iZWA10201312-201512

main68810-76011iZWA10..B..CHI201601-202105

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iZWA10..E;ZWA10..ARL,GCC201312-202108

T=2.0

main68838-44020×2iZWA10..B..CHI201312-202105

T=1.0

main68838-52020×2iZWA10..B..CHI201312-202105

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-76010iZWA10..E;ZWA10..ARL,GCC201312-202108

68945BBOLT, BACK DOOR DAMPER STAY BRACKET

main90105-06119×4iZWA10201012-201312

main90105-06184×4iZWA10..B..CHI201810-202105

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-76010iZWA10201012-201312

68950CSTAY ASSY, BACK DOOR, RH

main68950-76040supersedes 68950-76021iZWA10201012-201112

REAR WINDOW WIPER-WITH

main68950-76041supersedes 68950-76021iZWA10..B..CHI201312-202105

REAR WINDOW WIPER-WITH

68960STAY ASSY, BACK DOOR, LH

main68960-76040supersedes 68960-76021iZWA10201012-201112

REAR WINDOW WIPER-WITH

main68960-76041supersedes 68960-76021iZWA10..E;ZWA10..ARL,GCC201312-202108

REAR WINDOW WIPER-WITH

68961BOLT, BACK DOOR STAY

main68961-20140×2iZWA10..B..CHI201312-202105

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47020iZWA10201012-201211

main69350-47040iZWA10201212-201312

main69350-47041iZWA10201601-201902

main69350-47042iZWA10..B..CHI201902-202105

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47020iZWA10201012-201312

69430CSTRIKER ASSY, BACK DOOR LOCK

main69431-47010iZWA10201012-201312

9011906904

main90119-06904

9011908061

main90119-08061

9014880066

main90148-80066

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
