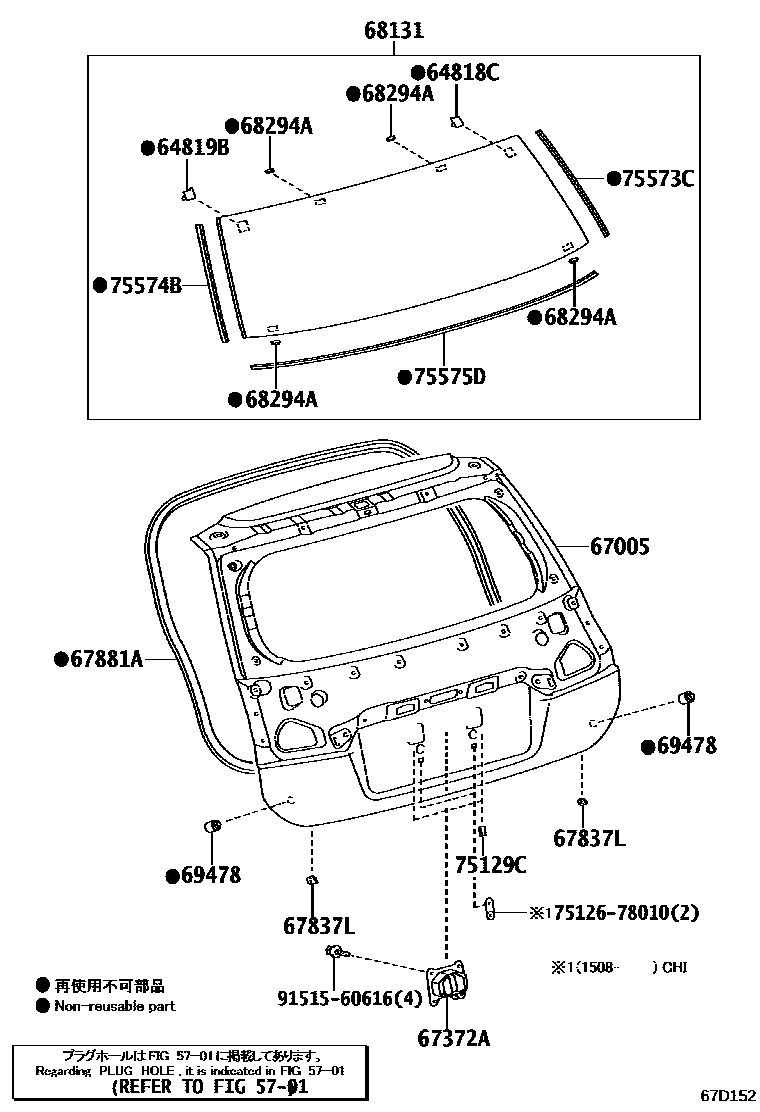

BACK DOOR PANEL & GLASS
5701
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
BACK MONITOR-WITH(GUIDE & NAVIGATION)
BACK MONITOR-WITH(GUIDE & NAVIGATION)
67372AWEIGHT, BACK DOOR
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=3.1,GREEN,REAR WINDOW WIPER-WITH
*UVCEHT,T=3.1,GREEN,REAR WINDOW WIPER-WITH
*EHT,T=3.1,DK.GRAY,REAR SIDE WINDOW-PRIVACY GLASS
*EHT,T=3.1,DK.GRAY,REAR SIDE WINDOW-PRIVACY GLASS&REAR WINDOW WIPER-WITH
68294ADAM, BACK DOOR GLASS ADHESIVE
69478CUSHION, BACK DOOR LOWER STOPPER
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
7512678010STAY, REAR LICENSE PLATE BRACKET, LOWER
main75126-78010
9151560616
main91515-60616
16 parts on this diagram · 2 diagrams in section
