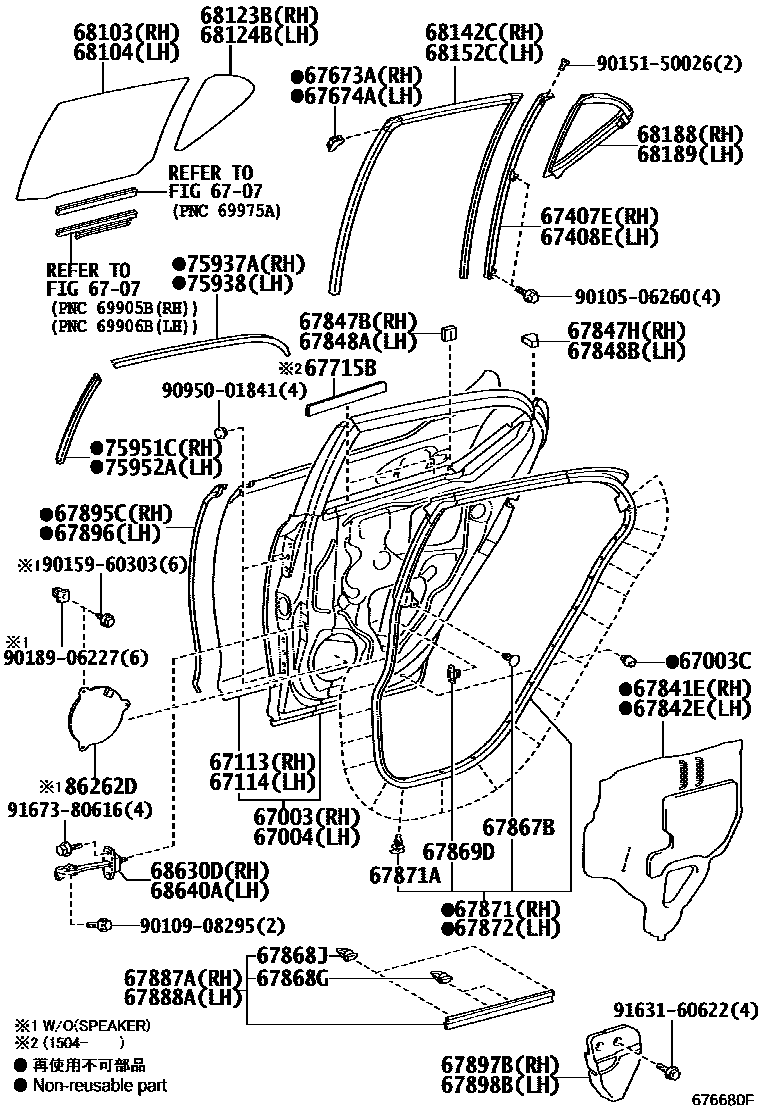

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67715BPAD, REAR DOOR TRIM
67847BSEAL, REAR DOOR VENT, RH NO.1
67847HSEAL, REAR DOOR VENT, RH NO.2
67848ASEAL, REAR DOOR VENT, LH NO.1
67848BSEAL, REAR DOOR VENT, LH NO.2
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67868GRETAINER, DOOR WEATHERSTRIP
67868JRETAINER, DOOR WEATHERSTRIP
67869DCLIP, DOOR WEATHERSTRIP
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.5,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.5,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.5,GREEN
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
86262DCOVER, REAR DOOR SPEAKER
9010506260
main90105-06260
9010908295
main90109-08295
9015150026
main90151-50026
9015960303
main90159-60303
9018906227
main90189-06227
9095001841
main90950-01841
9163160622
main91631-60622
9167380616
main91673-80616
53 parts on this diagram · 2 diagrams in section
