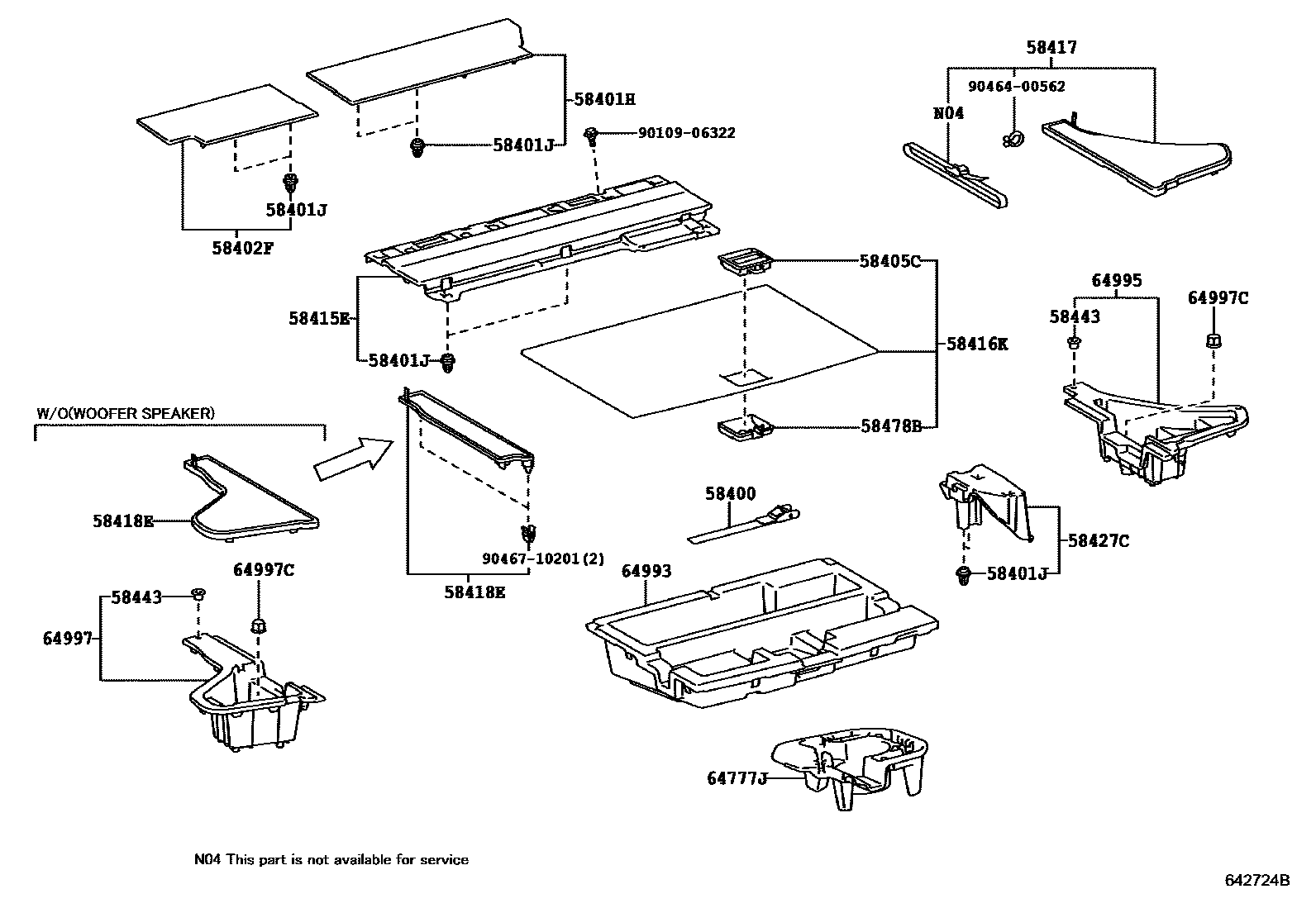

DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58401JCLIP(FOR DECK BOAD)
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58405CLOCK SUB-ASSY, DECK BOARD
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
58416KBOARD, REAR FLOOR, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
58417BOARD, REAR FLOOR, NO.3
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
sub58490-76022
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
58418EBOARD, REAR FLOOR, NO.4
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,3#,4#,8#
sub58418-76020
sub58418-76021
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,3#,4#,8#
sub58418-76020
sub58418-76021
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,3#,4#,8#
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS),BLACK,TRIM0#,2#,3#,4#,8#
F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,3#,4#,8#
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,3#,4#,8#
AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#
VERSION L&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
AUDIO-*DA & DVD & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#
AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#
AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#
AUDIO-AM/FM & CD & *DA & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#
58427CSPACER, REAR FLOOR BOARD
58443CUSHION, DECK BOARD, NO.1
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)
VERSION L&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
AUDIO-*DA & DVD & 10SPEAKER
AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
AUDIO-AM/FM & CD & *DA & 10SPEAKER
58478BPROTECTOR, DECK BOARD
BLACK,TRIM0#,2#,3#,4#,8#
BLACK
64997CCLIP(FOR DECK FLOOR BOX)
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)
VERSION L&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
F SPORT&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
AUDIO-*DA & DVD & 10SPEAKER
AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
AUDIO-AM/FM & CD & *DA & 10SPEAKER
BLACK
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK
VERSION L&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK
F SPORT&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS),BLACK
9010906322
main90109-06322
9046400562
main90464-00562
9046710201
main90467-10201
20 parts on this diagram · 2 diagrams in section
