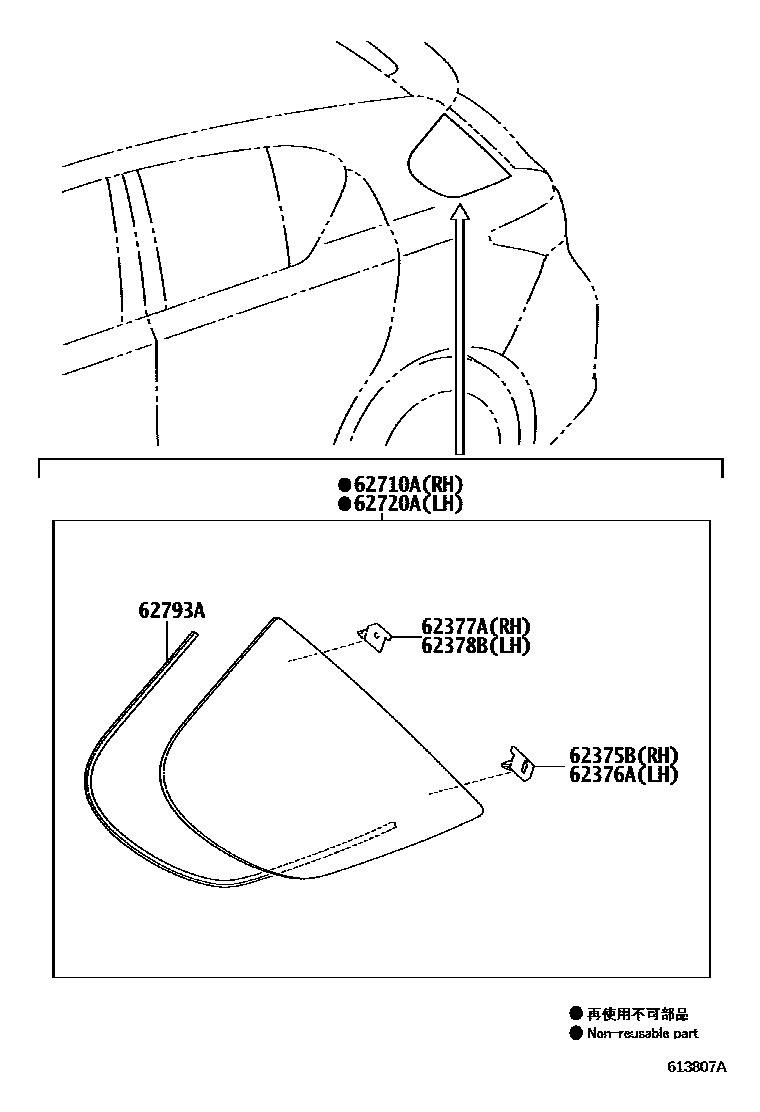

QUARTER WINDOW

62375BCLIP, SIDE WINDOW, NO.1

main62375-76010iZWA10201012-202108

62376ACLIP, SIDE WINDOW, NO.2

main62376-76010iZWA10201012-202108

62377ACLIP, SIDE WINDOW, NO.3

main62377-76010iZWA10201012-202108

62378BCLIP, SIDE WINDOW, NO.4

main62378-76010iZWA10201012-202108

62710AWINDOW ASSY, QUARTER, RH

main62710-76010iZWA10201012-202108

*UVCT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-76010iZWA10201012-202108

*UVCT,T=3.1,GREEN

62793AMOULDING, QUARTER WINDOW, LOWER

main62793-76010iZWA10201012-202108

7 parts on this diagram · 1 diagram in section
