SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61175BREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH
61703HREINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61731BPANEL, ROOF SIDE, INNER RH
61815CCOVER, ROOF SIDE, INNER UPPER
61825APLATE, NOISE CONTROL, NO.2
62152BPAD, COWL SIDE SILENCER, NO.2
62155APAD, COWL SIDE LOWER SILENCER
65637LINER, REAR WHEEL HOUSE, RH
COLD AREA SPEC
COLD AREA SPEC
9017906308
main90179-06308
9046706121
main90467-06121
9046707201
main90467-07201
9167380820
main91673-80820

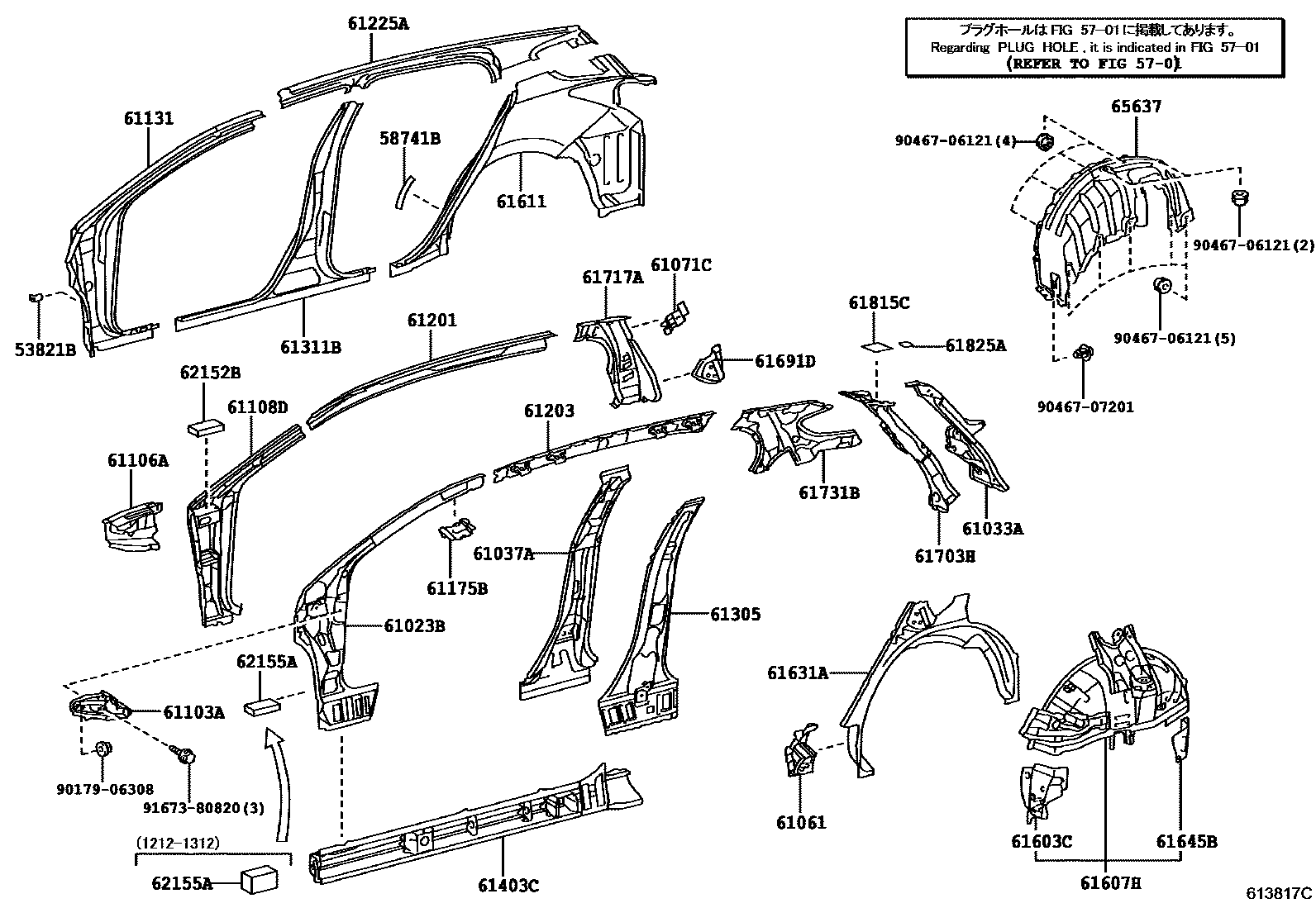

37 parts on this diagram · 2 diagrams in section
