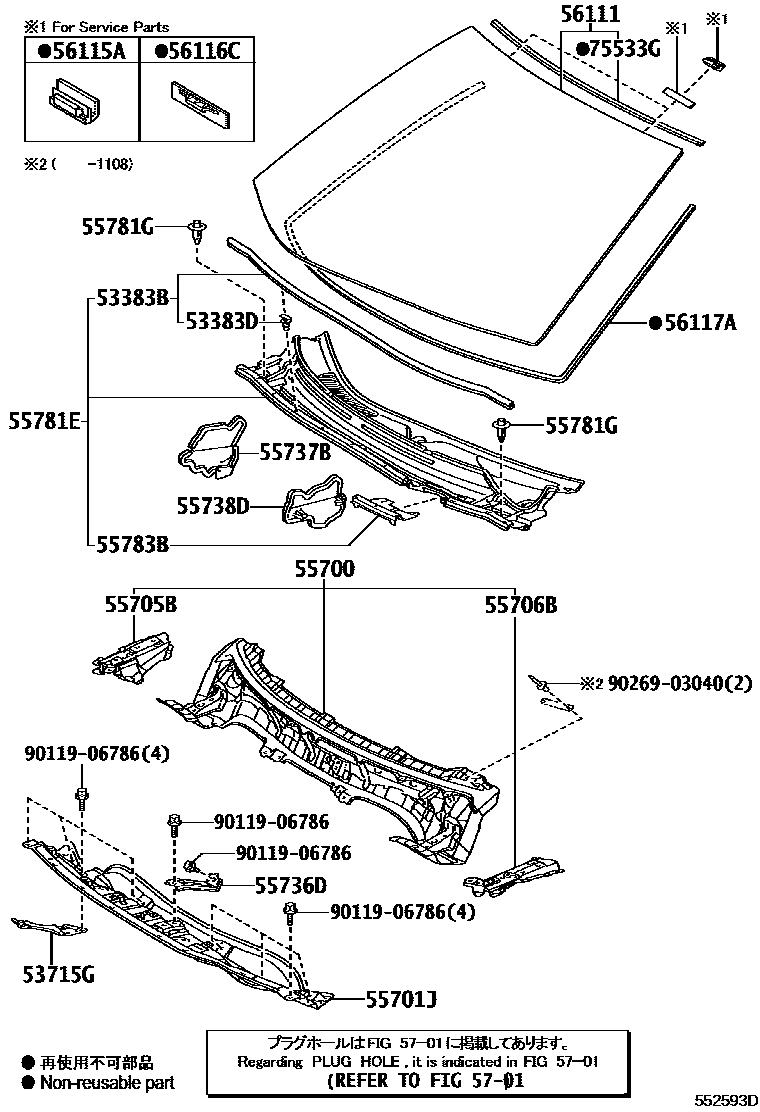

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK
sub90467-A0016
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2825
*D,L=2825,BEIJING SPEC&COLD AREA SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH
*D,L=2825,BEIJING SPEC&COLD AREA SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,BEIJING SPEC&COLD AREA SPEC&WINDSHIELD DEICER-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,BEIJING SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH
*D,L=2825,BEIJING SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,BEIJING SPEC&WINDSHIELD DEICER-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,COLD AREA SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH
*D,L=2825,COLD AREA SPEC&WINDSHIELD DEICER-WITH&SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,COLD AREA SPEC&WINDSHIELD DEICER-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,SMART ENTRY(DOOR)-WITH
*D,L=2825,SMART ENTRY(DOOR)-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER
*D,L=2825,COLD AREA SPEC&SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)&INTERMITTENTWIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
*D,L=2825,COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 10SPEAKER
*D,L=2825,COLD AREA SPEC&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & CD & *DA & 10SPEAKER
*D,L=2825,SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)&INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
*D,L=2825,INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & DVD & EMV & 10SPEAKER
*D,L=2825,INTERMITTENT WIPER-AUTO&AUDIO-AM/FM & CD & *DA & 10SPEAKER
*D,L=2825,COLD AREA SPEC
*D,L=2825,COLD AREA SPEC&WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)
*D,L=2825,WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
9026903040
21 parts on this diagram · 2 diagrams in section
