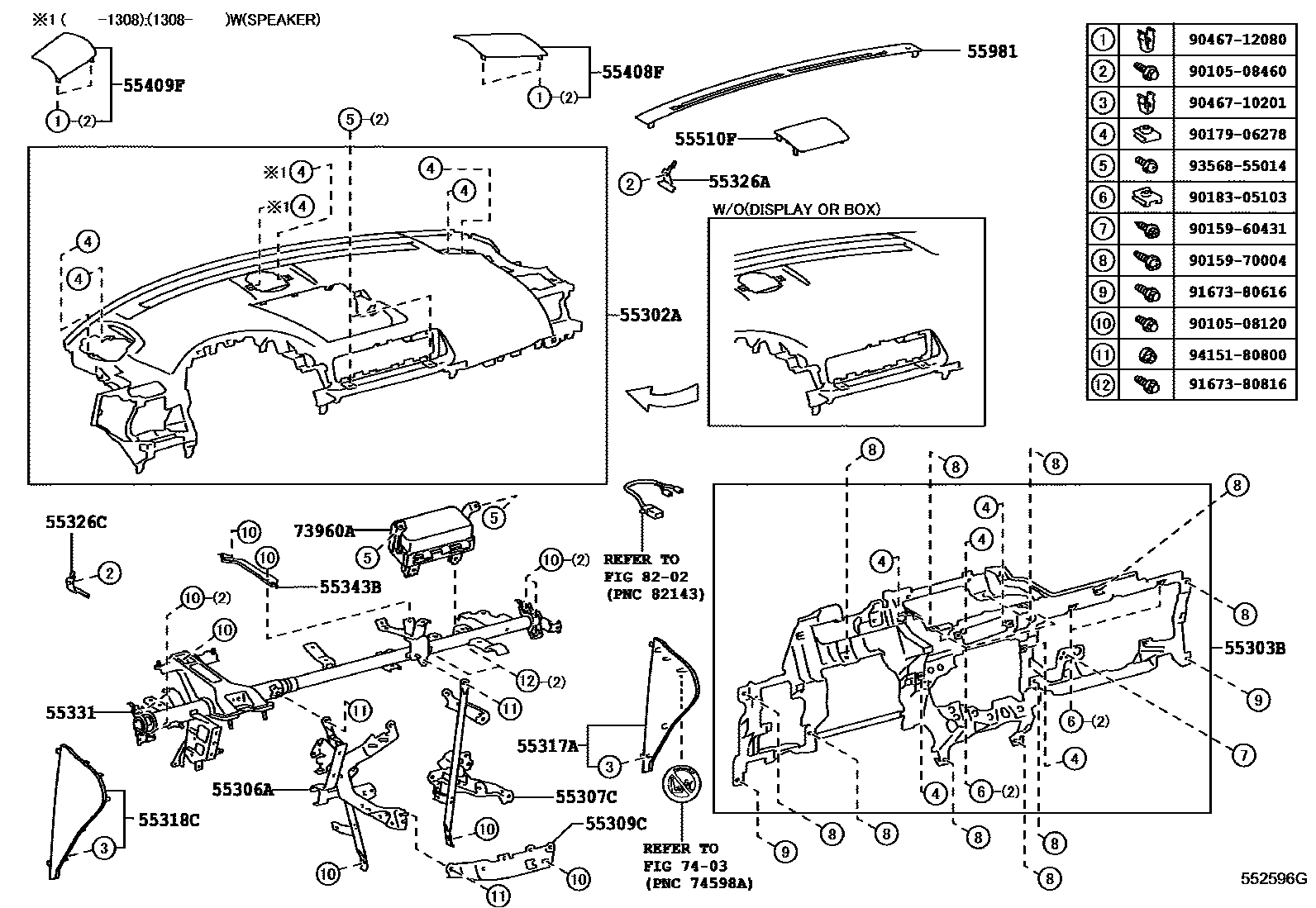

INSTRUMENT PANEL & GLOVE COMPARTMENT

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-76120-C0i201312-201512

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

main55302-76121-C0i201601-202007

BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76160-C0i201312-202108

BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76020-C0supersedes 55302-76120-C0i201308-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(DVD),BLACK,TRIM0#,2#,3#,4#,8#

sub55302-76021

main55302-76050-C0i201708-202007

AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76060-C0i201312-201512

AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

main55302-76061-C0i201601-201708

INSTRUMENT PANEL-FOR FIXED TYPE DISPLAY(7 INCH)&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

main55302-76070-C0i201312-201708

INSTRUMENT PANEL-FOR FIXED TYPE DISPLAY(7 INCH)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

main55302-76080-C0i201708-202108

AUDIO-AM/FM & DVD & EMV & 13SPEAKER&EMV & NAVIGATION SYSTEM-WITH,BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76140-C0supersedes 55302-76121-C0i201312-201512

INSTRUMENT PANEL-FOR DISPLAY LESS(BOX),BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76141-C0i201601-201708

INSTRUMENT PANEL-FOR DISPLAY LESS(BOX),BLACK,TRIM0#,2#,3#,4#,5#,8#

main55302-76180-C0i201312-201708

INSTRUMENT PANEL-FOR DISPLAY LESS(BOX),BLACK,TRIM0#,2#,3#,4#,5#,8#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-76010i201312-202105

main55303-76020i201312-202108

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76010i201312-201602

main55306-76011i201602-202105

main55306-76020i201312-201602

main55306-76021i201602-202108

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76010i201312-201602

main55307-76011i201602-202105

main55307-76020i201312-201602

main55307-76021i201602-202108

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-76010i201012-201312

main55309-76011i201601-202105

main55309-76020i201312-201601

main55309-76021i201601-202108

55317APANEL, INSTRUMENT SIDE, RH

main55317-76010-C0i201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-76010-C0i201312-202108

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-76010i201312-202108

55326CSTAY, INSTRUMENT PANEL, NO.2

main55326-76020i201312-202105

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-76010i201012-201312

main55330-76020i201312-202108

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-76010i201012-201312

main55343-76020i201312-202108

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76020-C0supersedes 55408-76010-C0i201312-202007

AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76030-C0supersedes 55409-76010-C0i201312-202007

AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76020-C0supersedes 55510-76010-C0i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS),BLACK,TRIM0#,2#,3#,4#,8#

main55510-76040-C0supersedes 55510-76030-C0i201312-202108

AUDIO-AM/FM & CD & *DA & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76010-C0i201012-201312

BLACK,TRIM0#,2#,3#,4#,8#

main55981-76020-C0i201312-202108

BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76010i201012-201312

main73960-76021i201312-202108

7403

8202

9010508120

main90105-08120

9010508460

main90105-08460

9015960431

main90159-60431

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046710201

main90467-10201

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

30 parts on this diagram · 15 diagrams in section
