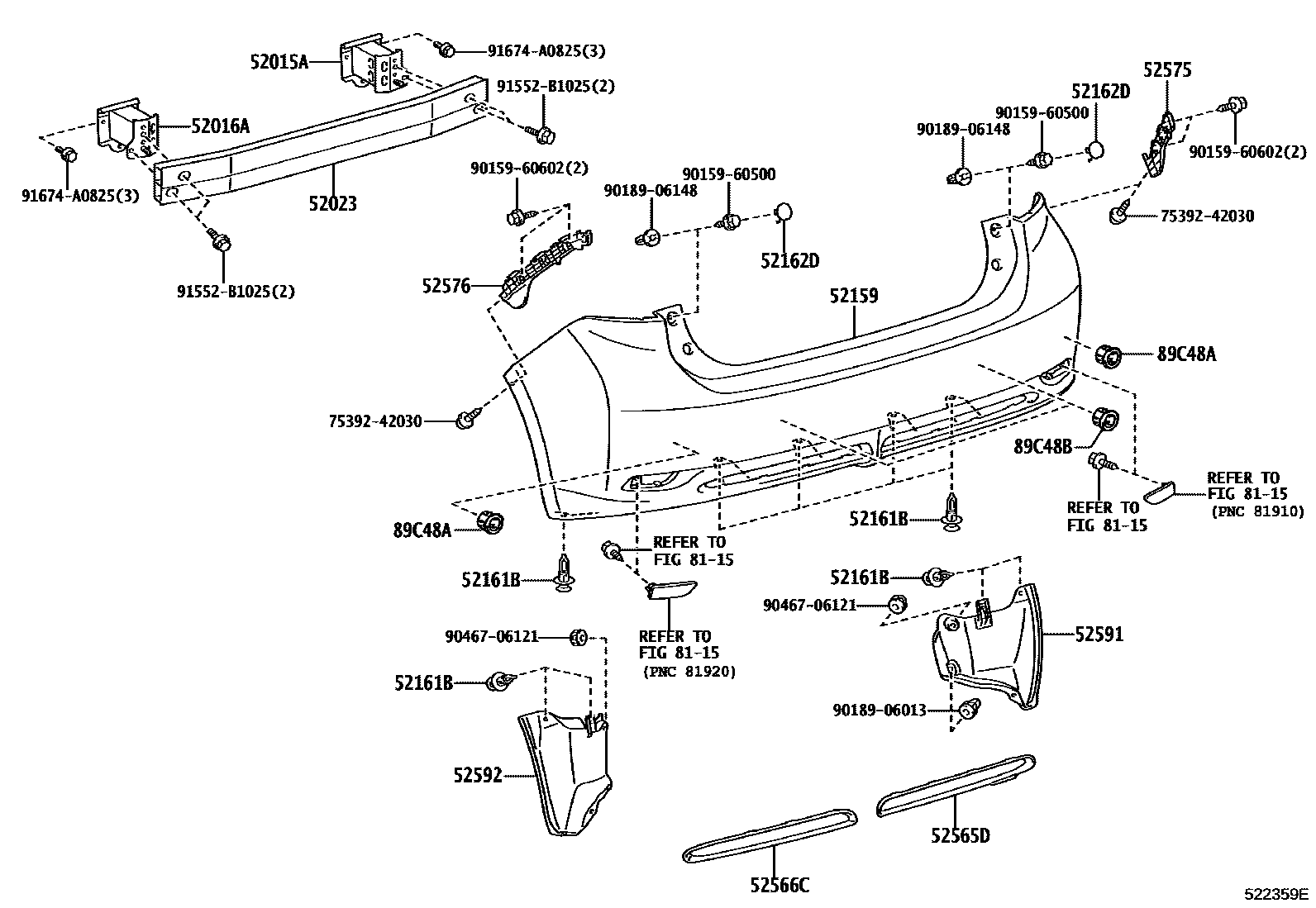

REAR BUMPER & BUMPER STAY

0001 1 0002 1AERO BUMPER 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-76010iZWA10¥2,280201012-202108

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-76010iZWA10¥2,280201012-202108

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-76010iZWA10¥18,100201012-202108

52159COVER, REAR BUMPER

main52159-76900iZWA10201012-201312

PAINT REQ.

main52159-76904iZWA10¥52,200201312-201708

PAINT REQ.

main52159-76911iZWA10..B..CHI201708-202105

F SPORT

main52159-76911iZWA10..E;ZWA10..ARL,GCC201708-202108

52161BPIECE, REAR BUMPER

main52161-16010iZWA10¥120201012-202108

sub52161-0K040¥120

52162DPIECE, REAR BUMPER

main52161-76901iZWA10201012-202108

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-76010iZWA10¥4,180201012-201312

main52565-76020iZWA10¥1,970201312-201708

main52565-76040iZWA10..B..CHI¥4,070201708-202108

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-76010iZWA10¥3,940201012-201312

main52566-76020iZWA10¥1,970201312-201708

main52566-76040iZWA10..B..CHI¥4,070201708-202108

52575RETAINER, REAR BUMPER SIDE, RH

main52575-76010iZWA10¥3,370201012-202108

52576RETAINER, REAR BUMPER SIDE, LH

main52576-76010iZWA10¥3,370201012-202108

52591SEAL, REAR BUMPER SIDE, RH

main52591-76010iZWA10¥2,070201012-202108

52592SEAL, REAR BUMPER SIDE, LH

main52592-76010iZWA10¥2,010201012-202108

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030¥280

9015960500

main90159-60500¥70

9015960602

main90159-60602¥60

9018906013

main90189-06013¥70

9018906148

main90189-06148¥80

9046706121

main90467-06121¥220

91552B1025

main91552-B1025¥110

91674A0825

main91674-A0825¥100

23 parts on this diagram · 4 diagrams in section
