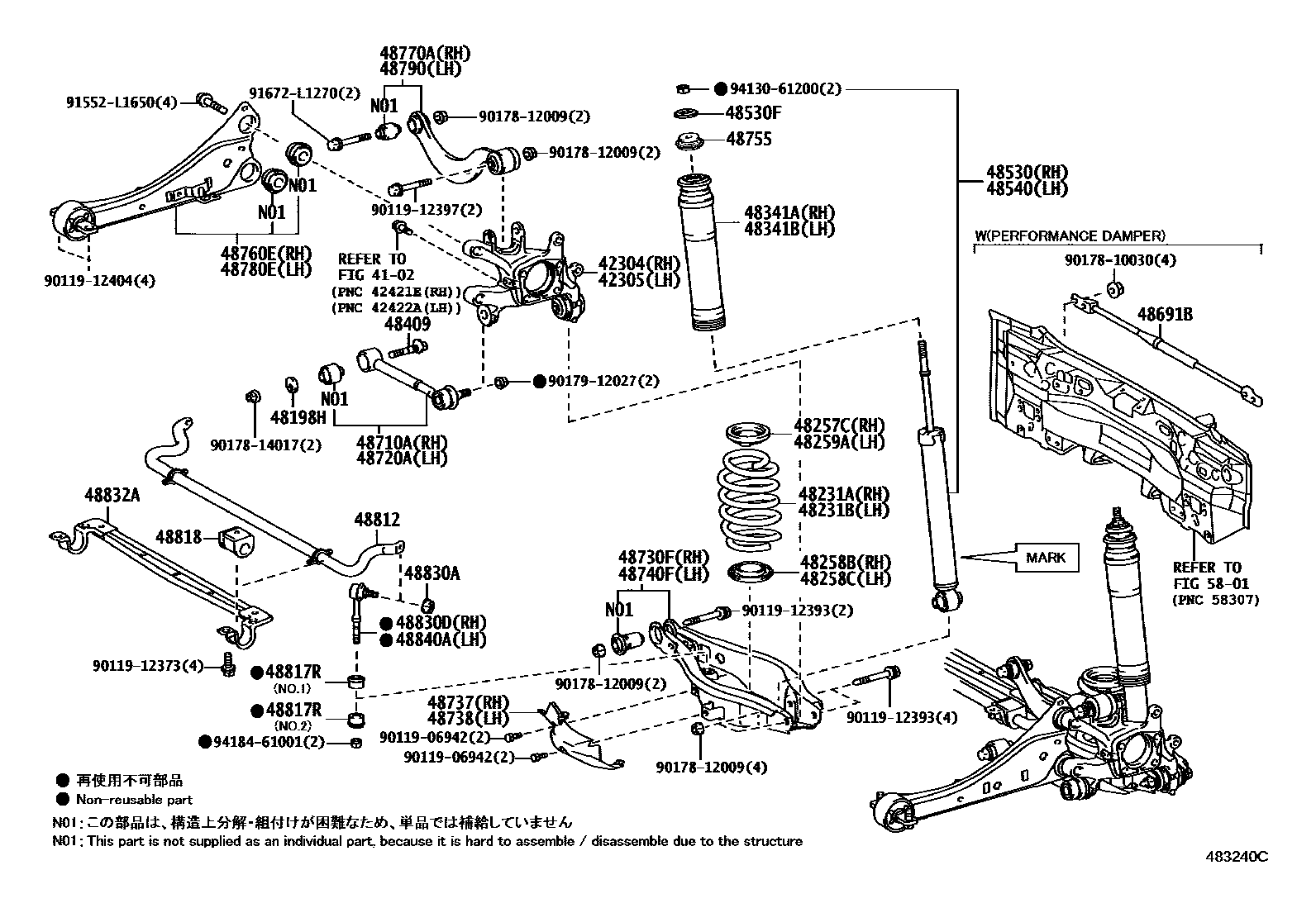

REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
F SPORT
F SPORT
F SPORT
48231BSPRING, COIL, REAR LH
F SPORT
F SPORT
F SPORT
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-76042
MARK 48530-76010,F SPORT
MARK 48530-76080,F SPORT
MARK 48530-76110
MARK 48530-76120,F SPORT
48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-76042
MARK 48530-76010,F SPORT
MARK 48530-76080,F SPORT
MARK 48530-76110
MARK 48530-76120,F SPORT
48691BDAMPER, SUSPENSION TOWER
PERFORMANCE DAMPER-WITH
PERFORMANCE DAMPER-WITH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48755SUPPORT, REAR SUSPENSION
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
F SPORT
48817RCUSHION, STABILIZER(FOR REAR)
NO.1
NO.2
48818BUSH, STABILIZER, REAR
F SPORT
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
5801
9011906942
main90119-06942
9011912373
main90119-12373
9011912393
main90119-12393
9011912397
main90119-12397
9011912404
main90119-12404
9017810030
main90178-10030
9017812009
main90178-12009
9017814017
main90178-14017
9017912027
main90179-12027
91552L1650
main91552-L1650
91672L1270
main91672-L1270
9413061200
main94130-61200
9418461001
main94184-61001
49 parts on this diagram · 2 diagrams in section
