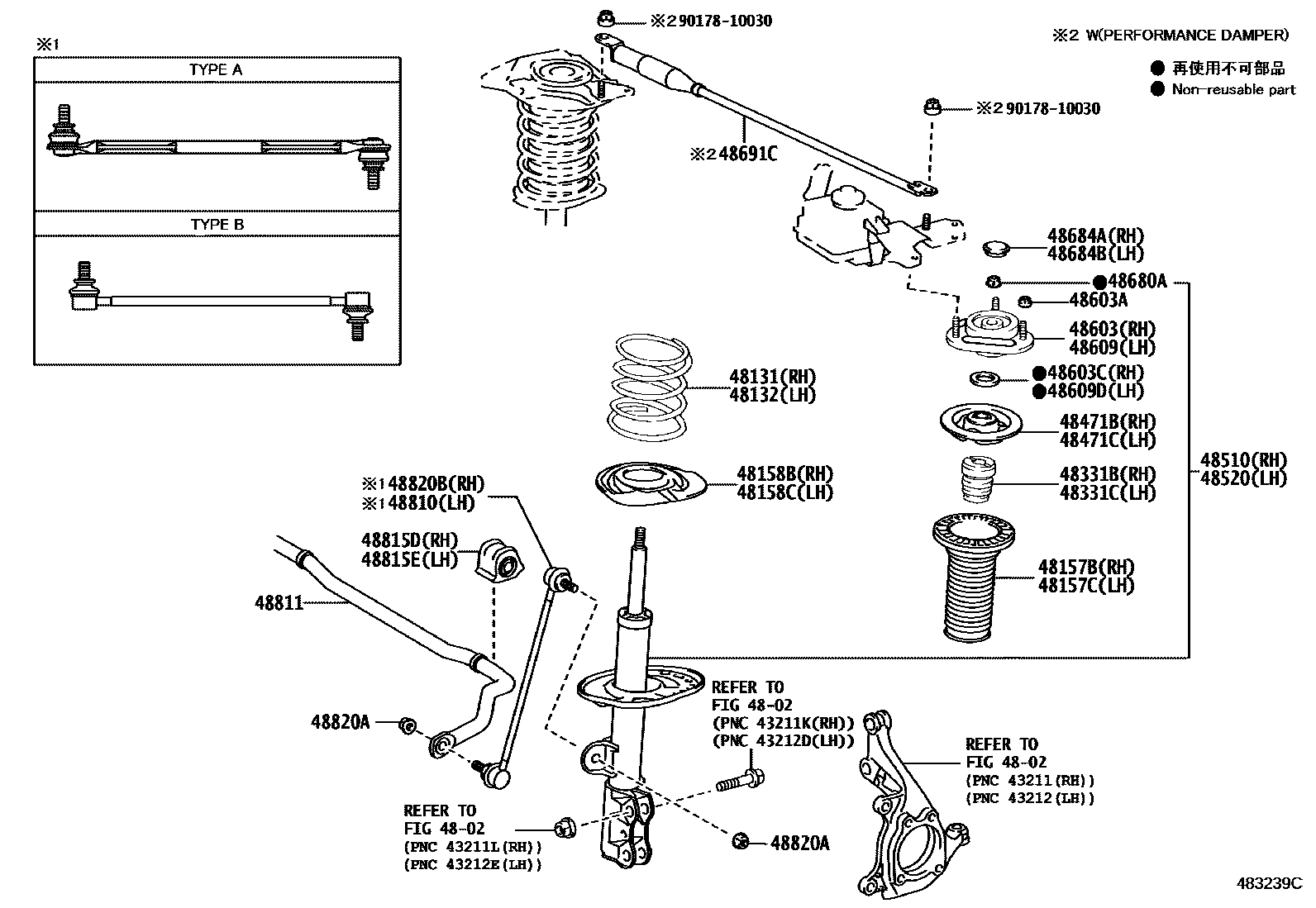

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
F SPORT
F SPORT
48132SPRING, FRONT COIL, LH
F SPORT
F SPORT
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-76041
MARK 48510-76010,F SPORT
MARK 48510-76080,F SPORT
MARK 48510-76110
MARK 48510-76120,F SPORT
MARK 48510-76130,F SPORT
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-76041
MARK 48520-76010,F SPORT
MARK 48520-76080,F SPORT
MARK 48520-76110
MARK 48520-76120,F SPORT
MARK 48520-76130,F SPORT
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48691CDAMPER, SUSPENSION TOWER
PERFORMANCE DAMPER-WITH
48810LINK ASSY, FRONT STABILIZER, LH
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
9017810030
main90178-10030
29 parts on this diagram · 1 diagram in section
