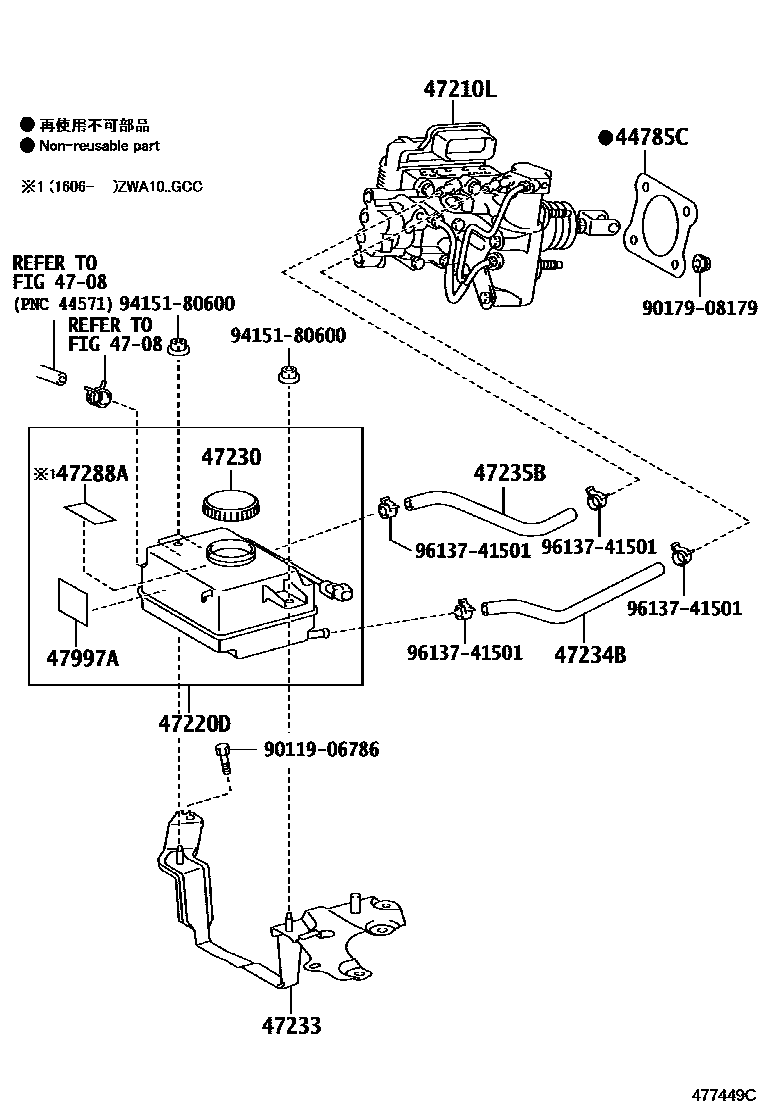

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iZWA10..B..CHI201012-202108

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-76040iZWA10201012-201312

main47050-76080iZWA10..E201312-201408

main47050-76081iZWA10..E201408-201508

main47050-76082iZWA10..E201508-201708

main47050-76090iZWA10..ARL201312-201408

main47050-76091iZWA10..ARL201408-201508

main47050-76092iZWA10..ARL201508-201708

main47050-76100iZWA10..LHD..B201312-201408

main47050-76101iZWA10..LHD..B201408-201508

main47050-76102iZWA10..LHD..B201508-201708

main47050-76140iZWA10..E201708-201903

main47050-76150iZWA10..ARL201708-202008

main47050-76160iZWA10..LHD..B201708-202008

main47050-76430iZWA10..ARL202008-202108

main47050-76440iZWA10..CHI202008-202105

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-76010iZWA10..E;ZWA10..ARL,GCC201012-202108

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iZWA10..B..CHI201612-202108

main47230-58010iZWA10201012-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-76010iZWA10..B..CHI201012-202108

47234BTUBE, RESERVOIR, NO.1

main47234-76010iZWA10..ARL201312-202108

main47234-76020iZWA10201012-202105

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-76010iZWA10..ARL201312-202108

main47235-76020iZWA10201012-202105

47288ALABEL, BRAKE FLUID NOTICE

main47288-33020iZWA10..GCC201606-202007

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iZWA10201012-202108

9011906786

main90119-06786

9017908179

main90179-08179

9415180600

main94151-80600

9613741501

main96137-41501

14 parts on this diagram · 2 diagrams in section
