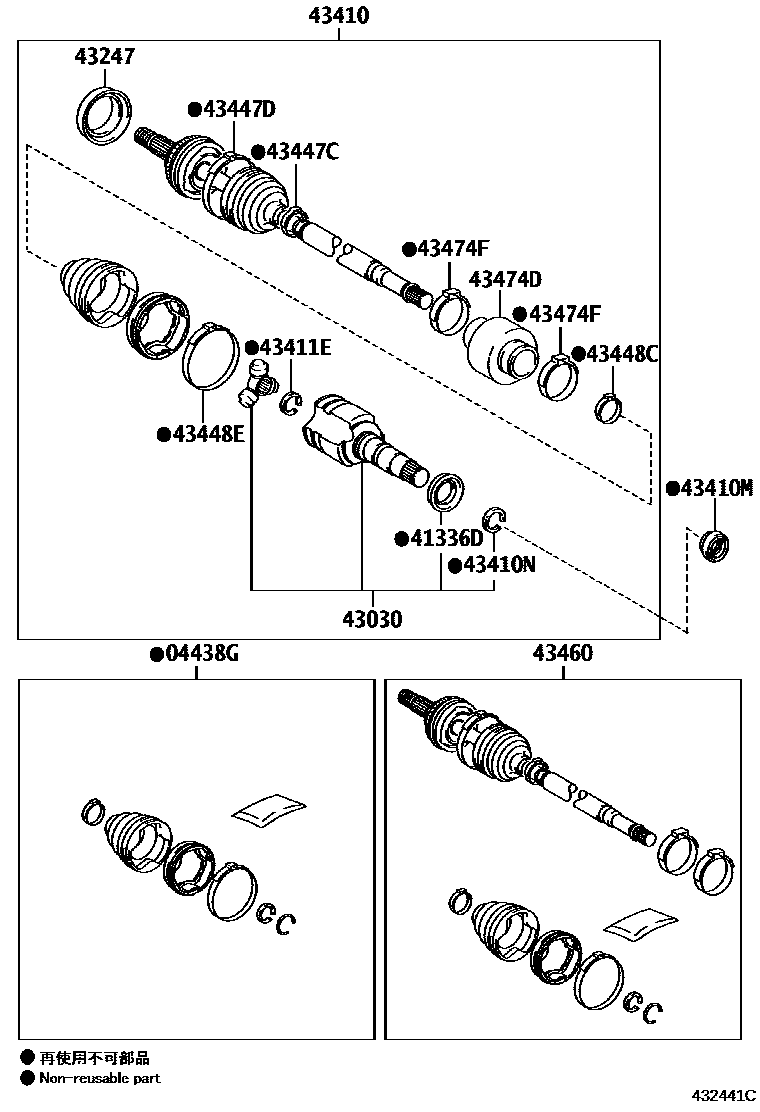

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47031iZWA10201012-201312

main04437-47032iZWA10201509-201511

main04437-47033iZWA10..B..CHI201511-202105

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZWA10201012-201312

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZWA10201012-201312

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010×2iZWA10201012-201312

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47030iZWA10201012-201312

main43410-47031iZWA10..B..CHI201501-202105

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40031iZWA10201012-201108

main90311-40037iZWA10201108-201312

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZWA10201012-201312

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZWA10201012-201312

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZWA10201012-201312

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZWA10201012-201312

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZWA10201012-201312

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZWA10201012-201312

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49406iZWA10201012-201312

main43460-49407iZWA10201501-201509

main43460-49408iZWA10201509-201511

main43460-49435iZWA10..B..CHI201511-202105

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZWA10..B..CHI201312-202105

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100×2iZWA10..E;ZWA10..ARL,GCC201312-202108

15 parts on this diagram · 3 diagrams in section
