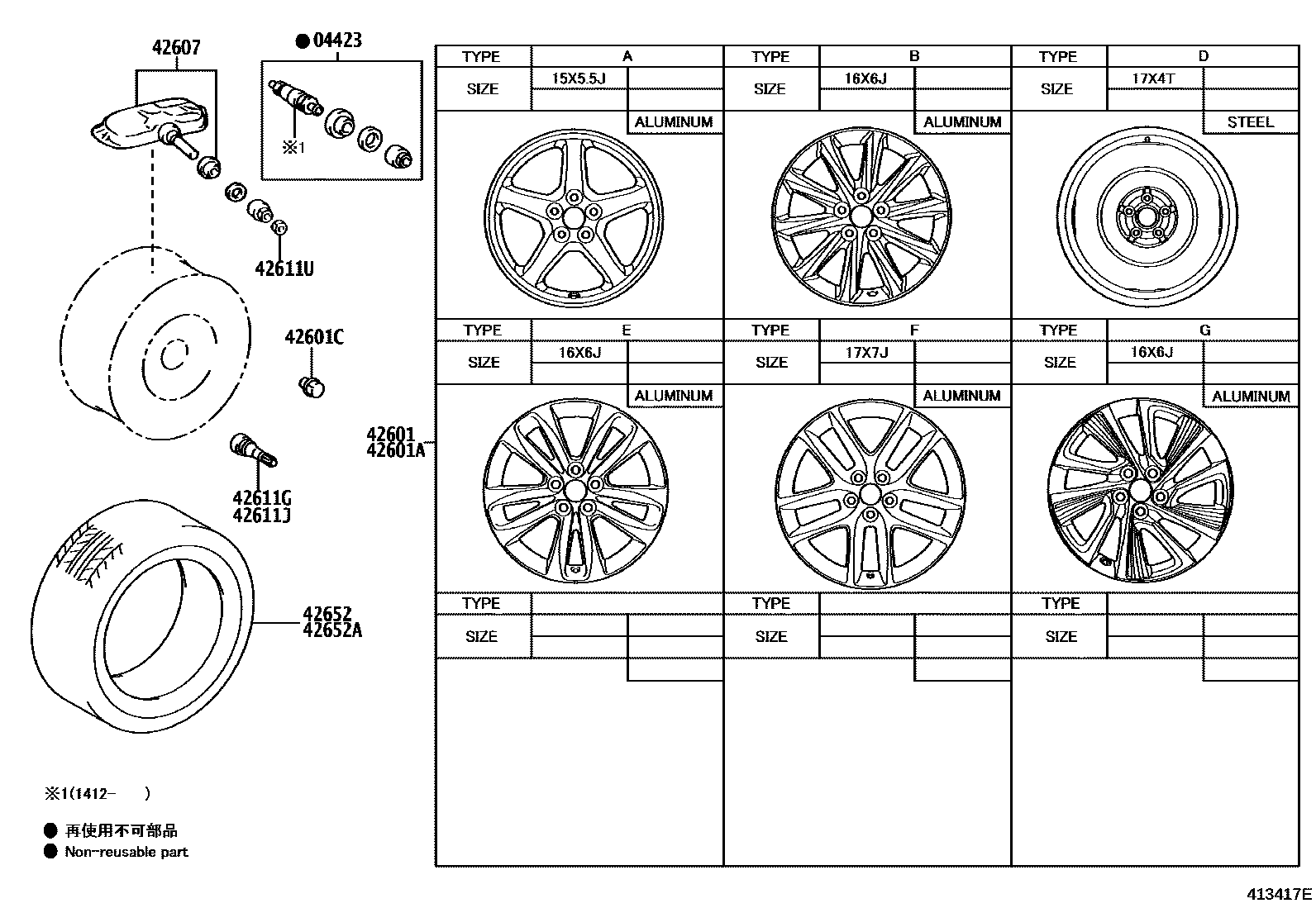

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
F SPORT&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
42601WHEEL, DISC
16X6J, #,TYPE G:REFER ILLUST.
16X6J, #,F SPORT,TYPE B:REFER ILLUST.
sub42611-76091
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J SUMMER TIRE,TYPE F:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J SUMMER TIRE F-SPORT,TYPE F:REFER ILLUST.
16X6J, #,SE PACKAGE(FOR CHINA)&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ),TYPE G:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205/55R16 6J SUMMER TIRE F-SPORT,TYPE E:REFER ILLUST.
16X6J, #,F SPORT,TYPE E:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J SUMMER TIRE F-SPORT,TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
SE PACKAGE(FOR CHINA)&TIRE & DISC WHEEL-205/55R16, 6J ALUMINUM(BLACK PAINTED)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
F SPORT&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42652TIRE
205/55R16,*Y/H
215/45R17,*Y/H,TIRE & DISC WHEEL-215/45R17 7J SUMMER TIRE
42652ATIRE (FOR SPARE)
T125/70D17,*B/S
T125/70D17 *Y/H
T125/70D17 *Y/H
T125/70D17 *Y/H
T125/70D17,FALKEN
10 parts on this diagram · 3 diagrams in section
