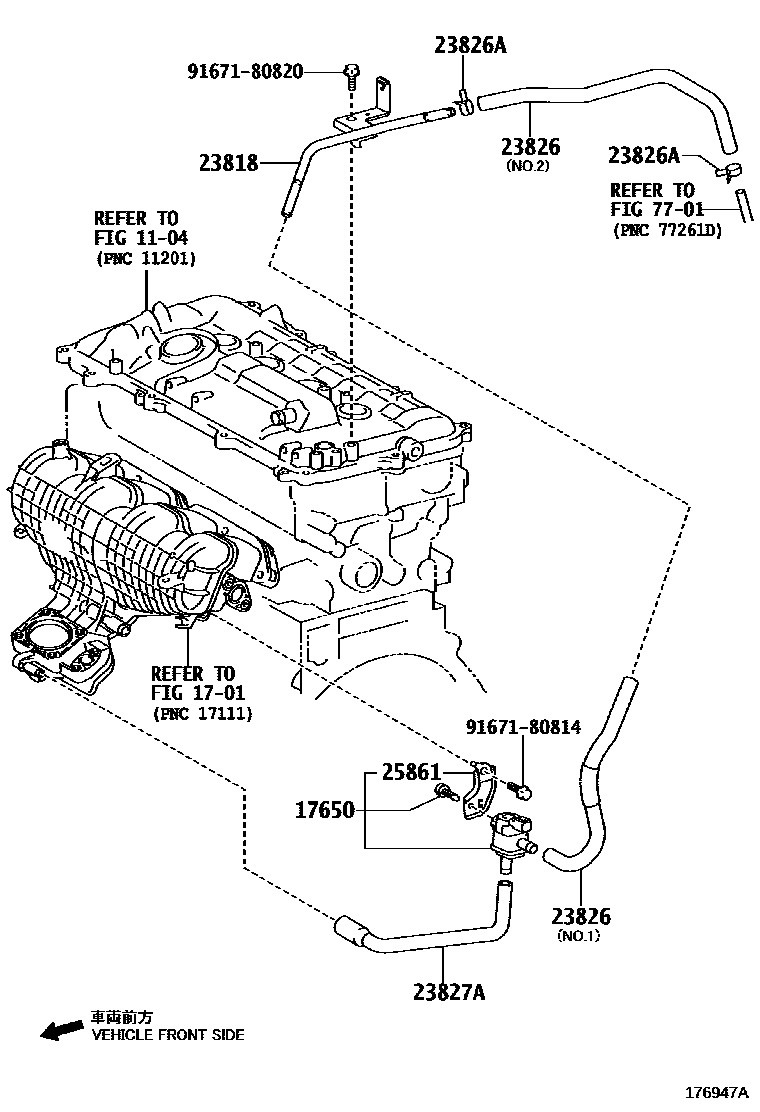

VACUUM PIPING

1104

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-37020i5ZRFXE..ZWA10202008-202105

main25860-37020i5ZRFXE..ZWA10201809-202008

BEIJING SPEC

main25860-37040i2ZRFXE..ZWA10201012-202108

23818PIPE, FUEL VAPOR FEED

main23818-37010i5ZRFXE..ZWA10201809-202008

BEIJING SPEC

main23818-37010i5ZRFXE..ZWA10202008-202105

main23818-37020i5ZRFXE..ZWA10..B201012-202108

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37080i2ZRFXE..ZWA10201012-202008

NO.2

main23826-37090i5ZRFXE..ZWA10201809-202008

EXHAUST EMISSION CONTROL-CHINA6B

main23826-37090i5ZRFXE..ZWA10201809-202008

EXHAUST EMISSION CONTROL-CHINA6B,NO.2

main23826-37090i5ZRFXE..ZWA10202008-202105

main23826-37090i5ZRFXE..ZWA10202008

NO.2

main23826-37130i5ZRFXE..ZWA10202008-202105

NO.1

main23826-37130i5ZRFXE..ZWA10201809-202008

BEIJING SPEC,NO.1

main23826-37140i5ZRFXE..ZWA10..B201012-202108

NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-19021i5ZRFXE..ZWA10202008

NO.1

main90467-19021i5ZRFXE..ZWA10201809-202008

EXHAUST EMISSION CONTROL-CHINA6B,NO.1

main96132-51100i5ZRFXE..ZWA10..B201012-202008

NO.1

main96132-51100i2ZRFXE..ZWA10201012-201208

main96136-41901i5ZRFXE..ZWA10201809-202008

EXHAUST EMISSION CONTROL-CHINA6B,NO.2

main96136-41901i5ZRFXE..ZWA10202008

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37040i5ZRFXE..ZWA10201809-202008

BEIJING SPEC

main23827-37040i5ZRFXE..ZWA10202008-202105

main23827-37050i5ZRFXE..ZWA10..B201012-202108

25861BRACKET, VACUUM SWITCHING VALVE

main25861-37020i5ZRFXE..ZWA10..B201012-202108

main25861-37020i5ZRFXE..ZWA10202007-202008

BEIJING SPEC

7701

9167180814

main91671-80814

9167180820

main91671-80820

11 parts on this diagram · 1 diagram in section
