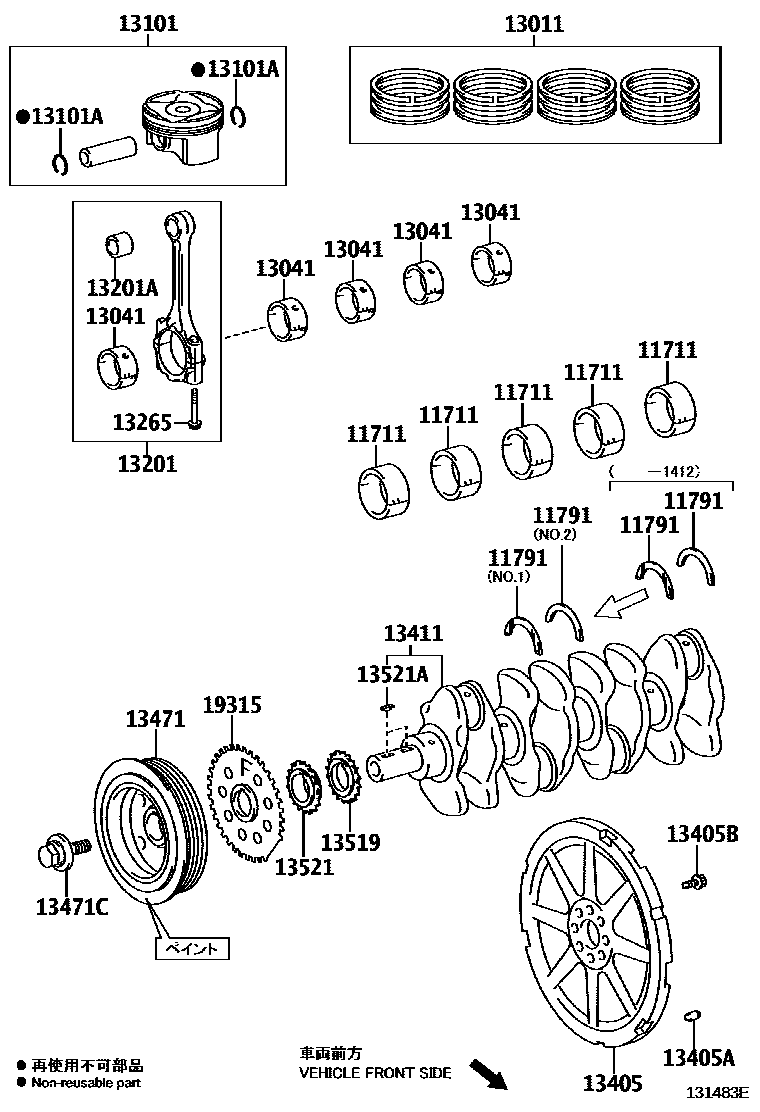

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-37020-01×5i2ZRFXE..ZWA10201012-201304

MARK1,REFER REPAIR MANUAL

main11701-37020-02×5i2ZRFXE..ZWA10201012-201304

MARK2,REFER REPAIR MANUAL

main11701-37020-03×5i2ZRFXE..ZWA10201012-201304

MARK3,REFER REPAIR MANUAL

main11701-37020-04×5i2ZRFXE..ZWA10201012-201304

MARK4,REFER REPAIR MANUAL

main11701-37021-01×5i2ZRFXE..ZWA10201304-201312

MARK1,REFER REPAIR MANUAL

main11701-37021-02×5i5ZRFXE..ZWA10..B201312-202105

MARK2,REFER REPAIR MANUAL

main11701-37021-03×5i5ZRFXE..ZWA10..B201312-202105

MARK3,REFER REPAIR MANUAL

main11701-37021-04×5i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201412-202108

STD,NO.1

main11791-37010×2i2ZRFXE..ZWA10201310-201312

STD

13011RING SET, PISTON

main13011-37110i2ZRFXE..ZWA10201012-201312

STD

main13011-37260i2ZRFXE,5ZRFXE..ZWA10201401-201810

STD

main13011-37270i5ZRFXE..ZWA10..B201810-202105

STD

13041BEARING, CONNECTING ROD

main13041-37010-01×4i2ZRFXE..ZWA10201012-201312

MARK1,REFER REPAIR MANUAL

main13041-37010-02×4i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

MARK2,REFER REPAIR MANUAL

main13041-37010-03×4i5ZRFXE..ZWA10..B201312-202105

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-37120×4i2ZRFXE..ZWA10201012-201312

STD

main13101-37240×4i5ZRFXE..ZWA10..B201401-202105

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i2ZRFXE..ZWA10201012-201312

13201ROD SUB-ASSY, CONNECTING

main13201-09A30×4i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

MADE IN EUROPE

main13201-39185×4i2ZRFXE..ZWA10201012-201312

MADE IN JAPAN

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73151×4i2ZRFXE..ZWA10201012-201312

13265BOLT, CONNECTING ROD

main13265-22020×8i2ZRFXE..ZWA10201012-201312

main13265-22040×8i5ZRFXE..ZWA10201903-202105

13405FLYWHEEL SUB-ASSY

main13451-37080i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i2ZRFXE..ZWA10201012-201312

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01027×8i2ZRFXE..ZWA10201012-201312

13411CRANKSHAFT

main13401-0T061i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201312-202108

(L)

main13401-37020i2ZRFXE..ZWA10201012-201309

(J)

main13401-37021i5ZRFXE..ZWA10..B201312-202105

(J)

13471PULLEY, CRANKSHAFT

main13470-37020i2ZRFXE..ZWA10201012-201110

main13470-37050i2ZRFXE..ZWA10201110-201203

YELLOW,PINK PAINTED

sub13470-37041

main13470-37060i5ZRFXE..ZWA10..B201409-202105

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i2ZRFXE..ZWA10;5ZRFXE..ZWA10..E201809-202108

main90119-14175i2ZRFXE,5ZRFXE..ZWA10201505-201809

13519GEAR, OIL PUMP DRIVE

main13519-37010i5ZRFXE..ZWA10..B201312-202105

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-37010i2ZRFXE..ZWA10201012-201312

main13521-37011i5ZRFXE..ZWA10..B201407-202105

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04003×2i2ZRFXE..ZWA10201012-201312

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-37020i2ZRFXE..ZWA10201012-201312

19 parts on this diagram · 1 diagram in section
