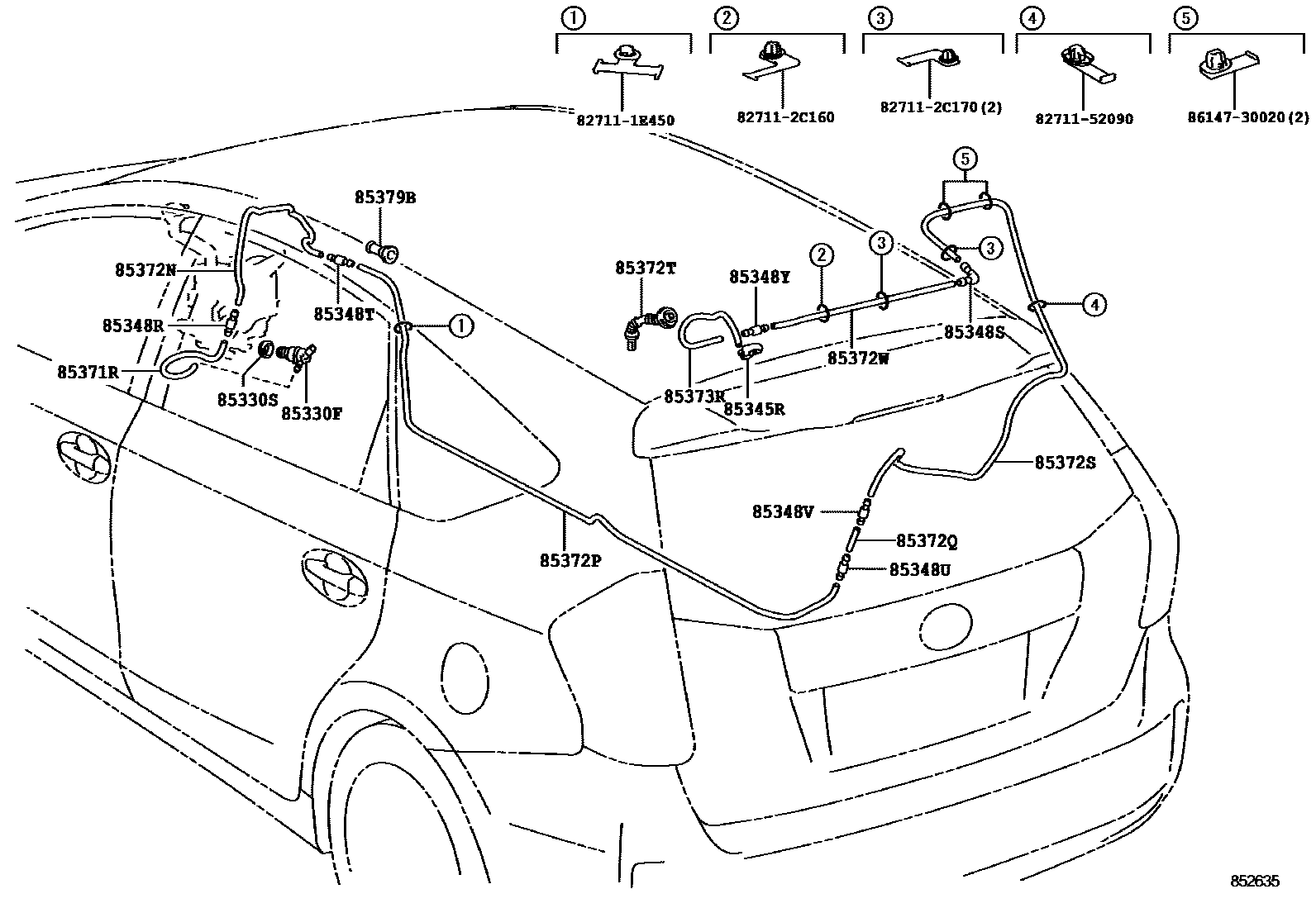

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60180iZVW40201203-202108

85330SBUSH, REAR WASHER JAR

main85336-60300iZVW40201203-202108

85345RNOZZLE, REAR WASHER

main85391-47030iZVW40201203-202108

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iZVW40201203-202108

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iZVW40201203-202108

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iZVW40201203-202108

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iZVW40201203-202108

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iZVW40201203-202108

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iZVW40201203-202108

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62092iZVW40201203-201504

L=400

main90099-62092iZVW40201203-201504

L=400,HEADLAMP-LED

main90099-62122iZVW40201504-202108

L=370

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62095iZVW40201203-202108

L=720

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33589iZVW40201203-202108

L=3300(*H,L=2950)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZVW40201203-202108

L=1450(*H,L=40)

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-33589iZVW40201203-202108

L=3300(*H,L=1870)

85372TGROMMET, WASHER

main85373-44010iZVW40201203-202108

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iZVW40201203-202108

L=1800(*H,L=450)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZVW40201203-202108

L=1450(*H,L=290)

85379BGROMMET, WASHER, A

main85379-12850iZVW40201203-202108

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8614730020

main86147-30020

23 parts on this diagram · 1 diagram in section
