WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-47080iZVW40201203-201605

main89740-47230iZVW40201605-202108

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW40201203-202108

89990ACOMPUTER ASSY, SMART KEY

main89990-47101iZVW40201203-201504

main89990-47102iZVW40201504-201605

main89990-47310iZVW40201605-201710

sub89990-47311

main89990-47311iZVW40201711-202108

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW40201203-202108

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW40201203-202108

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47030iZVW40201203-202108

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47040iZVW40201203-201211

sub899A0-47041

main899A0-47041iZVW40201212-201403

sub899A0-47042

main899A0-47042iZVW40201404-202108

9011906915

main90119-06915

9017906274

main90179-06274

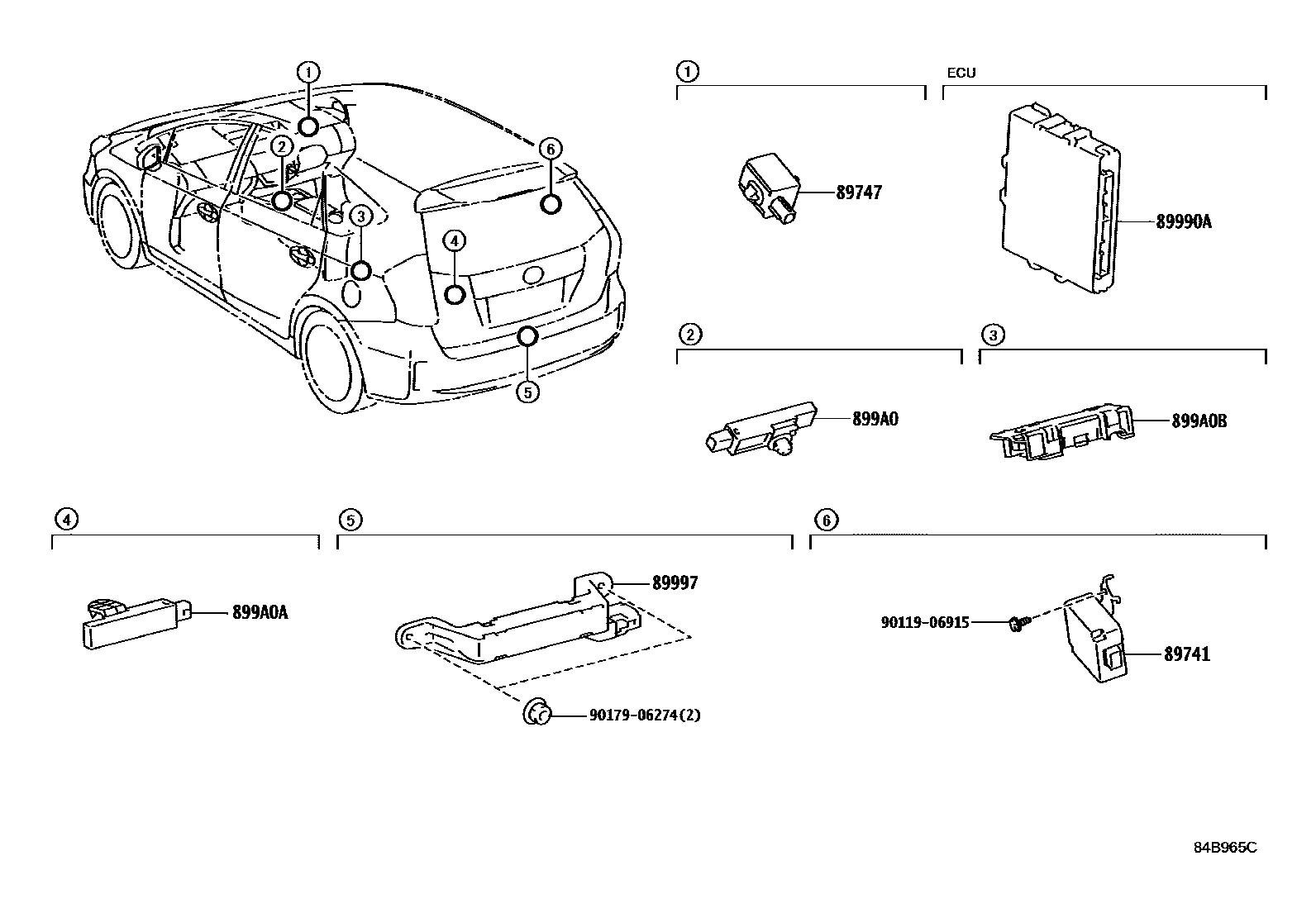

9 parts on this diagram · 1 diagram in section
