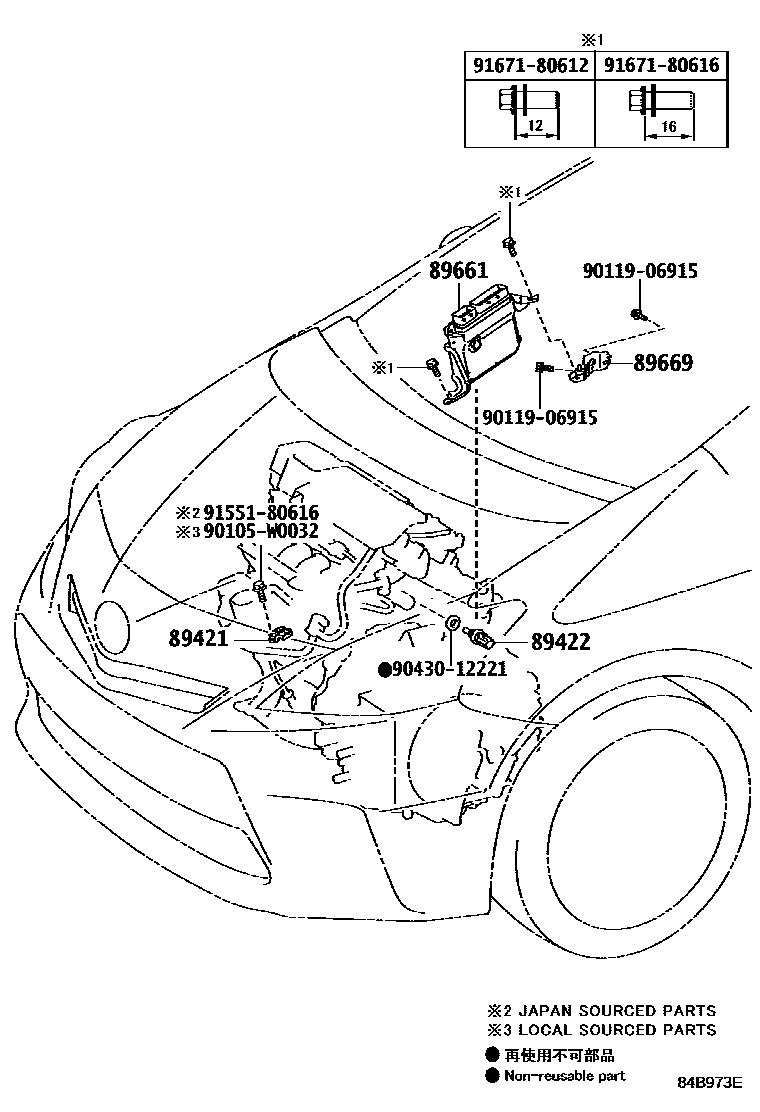

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW40201203-202108

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW40201203-202108

89661COMPUTER, ENGINE CONTROL

main89660-47600iZVW40201203-201504

main89660-47720iZVW40201712-202108

main89660-47790iZVW40201504-201605

main89660-47A30iZVW40201605-201712

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW40201203-202108

90105W0032

main90105-W0032

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9167180616

main91671-80616

10 parts on this diagram · 1 diagram in section
