WIRING & CLAMP

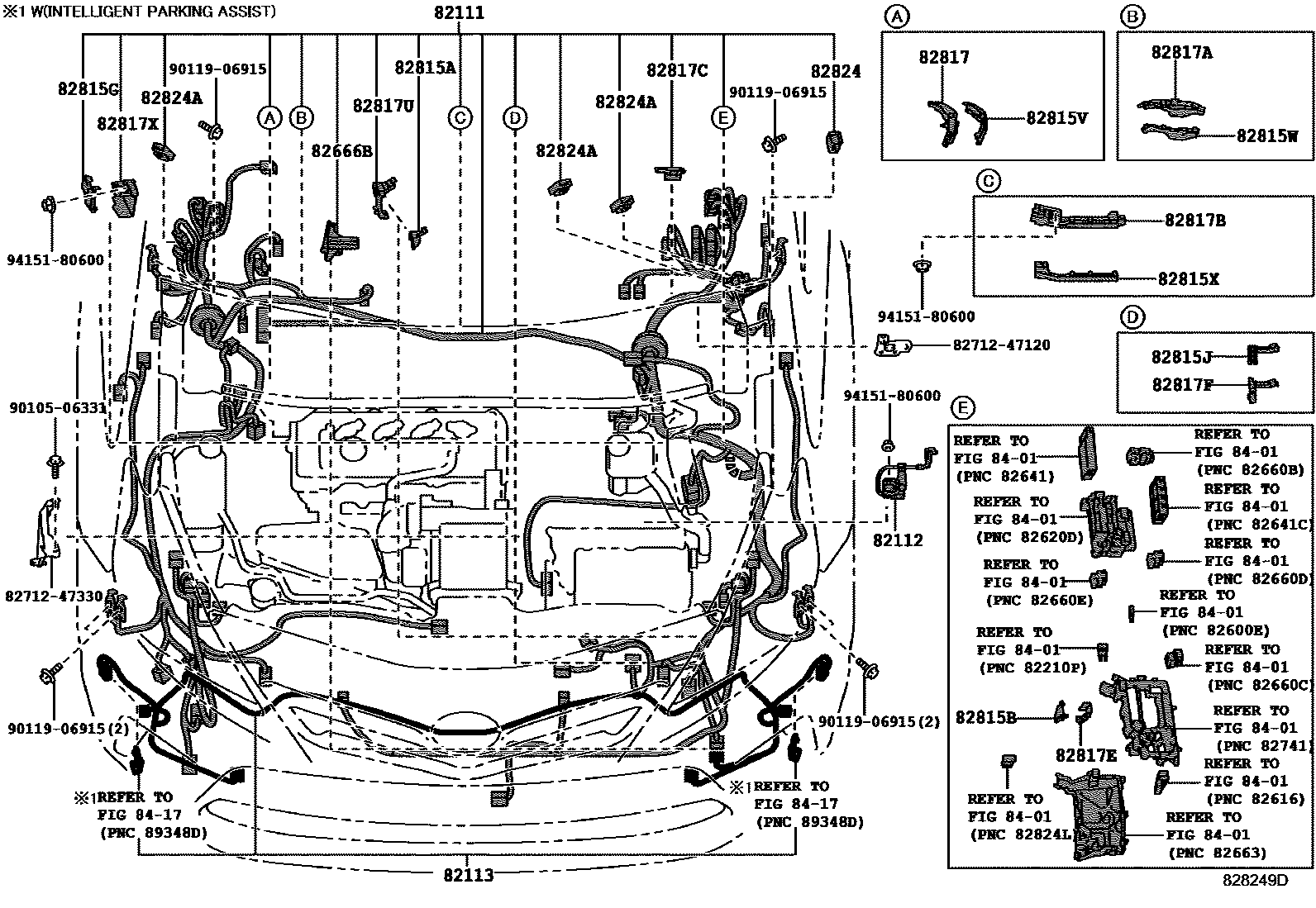

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-47B60i201203-201210

main82111-47B61i201210-201405

main82111-47B62i201405-201504

main82111-47E20i201504-201605

main82111-47T00i201605-201712

main82111-47W10i201712-202008

main82111-47W11i202008-202108

82112WIRE, ENGINE ROOM, NO.2

main82112-47030i201203-202108

82113WIRE, ENGINE ROOM, NO.3

main82113-47140i201203-201504

main82113-47280i201504-202108

82666BHOLDER, CONNECTOR NO.3

main82666-47530i201203-202108

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47C60i201203-202108

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47390i201203-202108

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-76170i201203-202108

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47560i201203-202108

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-47590i201203-202108

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-47570i201203-202108

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-47580i201203-202108

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47830i201203-202108

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47810i201203-202108

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47820i201203-202108

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47A00i201203-202108

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47620i201203-202108

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47800i201203-202108

82817UPROTECTOR, WIRING HARNESS, NO.16

main82817-47J70i201203-202108

82817XPROTECTOR, WIRING HARNESS, NO.17

main82817-76380i201203-202108

82824CONNECTOR, WIRING HARNESS

main82824-73040i201203-202108

82824ACONNECTOR, WIRING HARNESS

main82824-73050i201203-202108

8401

8417

8271247120CLAMP, WIRING HARNESS

main82712-47120

8271247330CLAMP, WIRING HARNESS

main82712-47330

9010506331

main90105-06331

9011906915

main90119-06915

9415180600

main94151-80600

28 parts on this diagram · 13 diagrams in section
