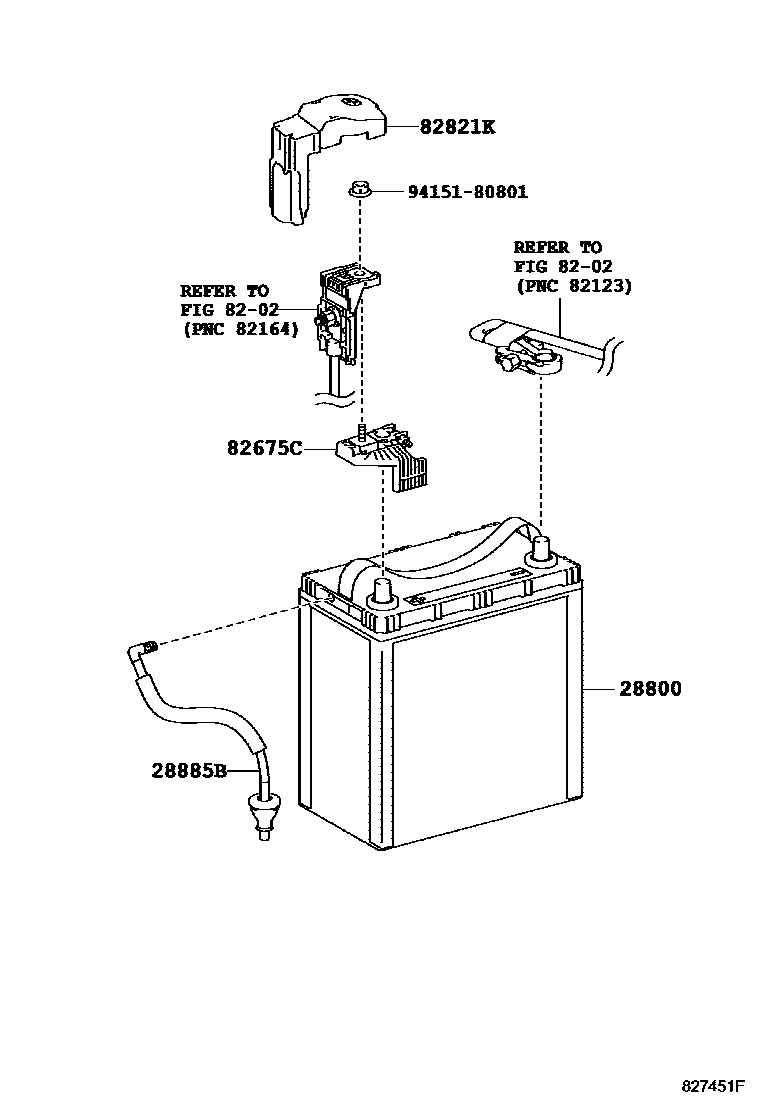

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21171i2ZRFXE..ZVW40201203-202108

S46B24R

sub28800-21172

28885BHOSE, BATTERY

main28885-37010i2ZRFXE..ZVW40201203-201204

main28885-37060i2ZRFXE..ZVW40201205-202108

8202

82675CTERMINAL, JUNCTION

main82675-47160iZVW40201203-202108

82821KCOVER, CONNECTOR

main82821-47110iZVW40201203-202108

9415180801

main94151-80801

6 parts on this diagram · 4 diagrams in section
