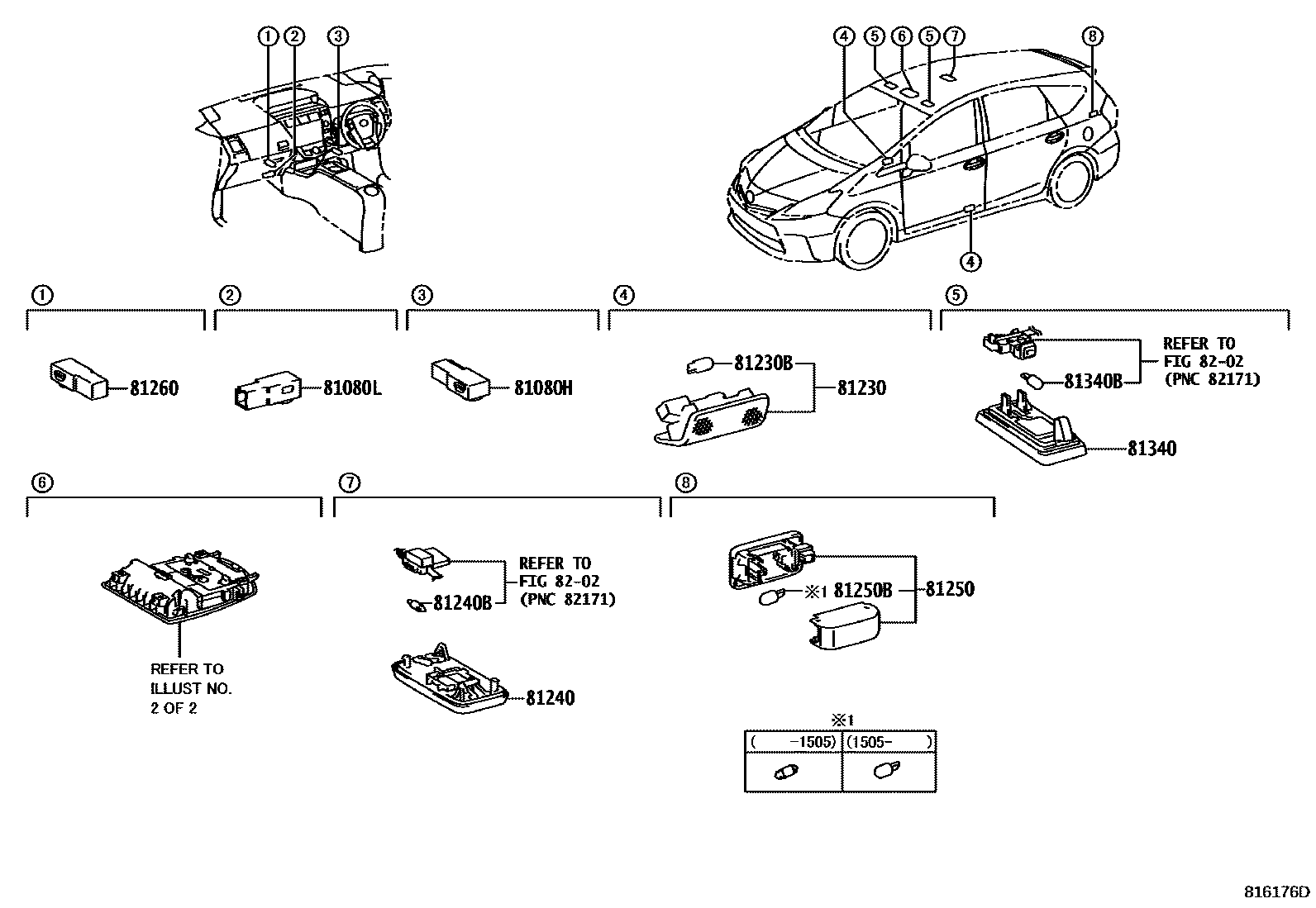

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iZVW40201203-201711

main81080-52050iZVW40201712-202108

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iZVW40201203-201711

main81080-52050iZVW40201712-202108

81230LAMP ASSY, COURTESY

main81230-30200iZVW40201306-202108

main81230-47010iZVW40201203-201305

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iZVW40201203-202108

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-12100-B0iZVW40202008-202108

LT.GRAY,TRIM1#,2#

main81240-60060-B0iZVW40201203-201504

LT.GRAY,TRIM1#,6#

sub81240-12100

main81240-60060-B0iZVW40201504-202007

LT.GRAY,TRIM1#,2#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW40201203-202108

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZVW40201203-201505

main81330-58010iZVW40201505-202108

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZVW40201505-202108

12V 5W

main99132-13050iZVW40201203-201505

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZVW40201203-201711

main81080-52050iZVW40201712-202108

81340LAMP ASSY, VANITY

main81340-30100-B0iZVW40201203-201211

LT.GRAY,TRIM1#,6#

main81340-30110iZVW40201211-202108

81340BBULB (FOR VANITY LAMP)

main90981-11062iZVW40201203-202108

12V 8W

8202

12 parts on this diagram · 2 diagrams in section
