MUDGUARD & SPOILER

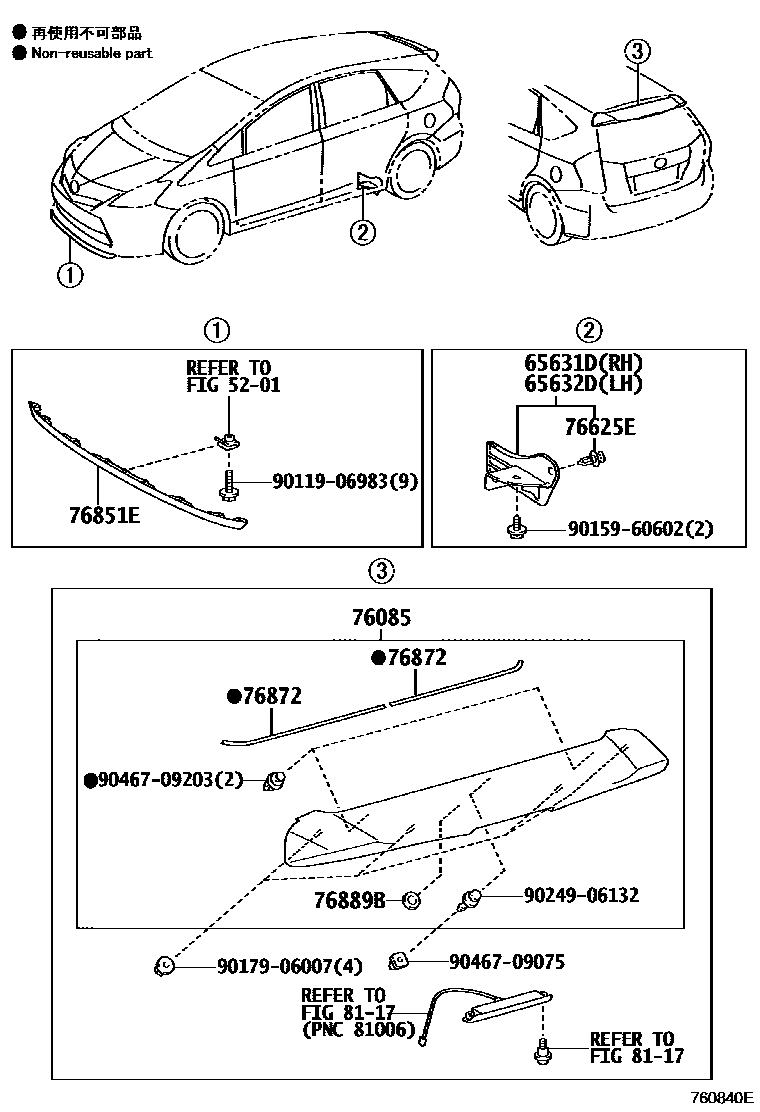

Parts diagram

5201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47060i201203-202108

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47060i201203-202108

76085SPOILER SUB-ASSY, REAR

main76085-47909-A0i201203-201212

SUPER WHITE 2,040

main76085-47909-A1i201203-201212

WHITE PEARL CS.,070

main76085-47909-B0i201203-201212

SILVER ME.,1F7

main76085-47909-B1i201203-201212

GRAY ME.,1G3

main76085-47909-C0i201203-201212

BLACK,202

main76085-47909-D0i201203-201212

RED M.M.,3R3

main76085-47909-J2i201203-201212

DK. BLUE MC.,8T5

main76085-47911-A0i201212-202108

SUPER WHITE 2,040

main76085-47911-A1i201212-202108

WHITE PEARL CS.,070

main76085-47911-B0i201212-202008

SILVER ME.,1F7

main76085-47911-B1i201212-202108

GRAY ME.,1G3

main76085-47911-B2i202008-202108

SILVER ME.,1D6

main76085-47911-C0i201212-201504

BLACK,202

main76085-47911-C1i201504-202108

ATTITUDE BLACK MC.,218

main76085-47911-C2i201605-202108

BLACKISH AGEHA GF.,221

main76085-47911-D0i201212-201504

RED M.M.,3R3

main76085-47911-D2i201504-201712

SUPER RED 5,3P0

main76085-47911-D4i201712-202008

DK. RED M.M.,3Q3

main76085-47911-D6i202008-202108

RED MC.,3T3

main76085-47911-E1i201504-202108

DARK SHERRY M.M.,4W4

main76085-47911-E2i201712-202108

STEEL BLONDE ME.,4X1

main76085-47911-J0i201212-202008

DK. BLUE MC.,8T5

76625ECLIP

main75867-30140i201203-201406

main75867-33050i201407-202108

76851ESPOILER, FRONT

main76851-47050i201203-201504

main76851-47070i201504-202108

76872PROTECTOR, REAR SPOILER, NO.1

main76872-47020i201203-202108

76889BSEAL, REAR SPOILER, NO.1

main76889-47030i201203-202108

8117

9011906983

main90119-06983

9015960602

main90159-60602

9017906007

main90179-06007

9024906132

main90249-06132

9046709075

main90467-09075

9046709203

main90467-09203

15 parts on this diagram · 2 diagrams in section
