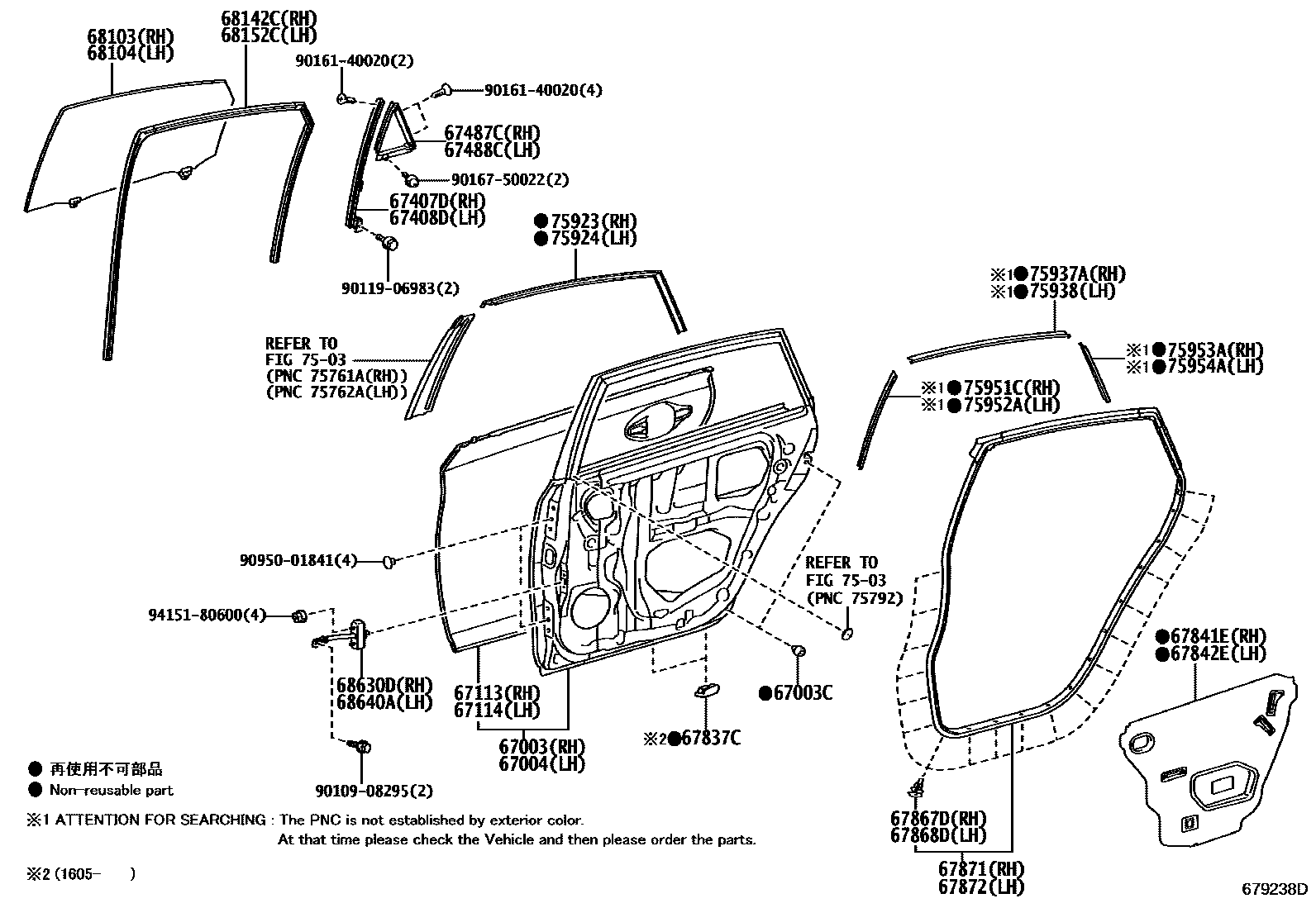

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
sub90541-09124
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67837CSEAL, REAR DOOR DUST PROOF
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
75937ATAPE, BLACK OUT, INNER UPPER RH
REFER TO ILLUST.
75938TAPE, BLACK OUT, INNER UPPER LH
REFER TO ILLUST.
75951CTAPE, BLACK OUT, INNER FRONT RH
REFER TO ILLUST.
75952ATAPE, BLACK OUT, INNER FRONT LH
REFER TO ILLUST.
75953ATAPE, BLACK OUT, INNER REAR RH
REFER TO ILLUST.
75954ATAPE, BLACK OUT, INNER REAR LH
REFER TO ILLUST.
9010908295
main90109-08295
9011906983
main90119-06983
9016140020
main90161-40020
9016750022
main90167-50022
9095001841
main90950-01841
9415180600
main94151-80600
37 parts on this diagram · 2 diagrams in section
