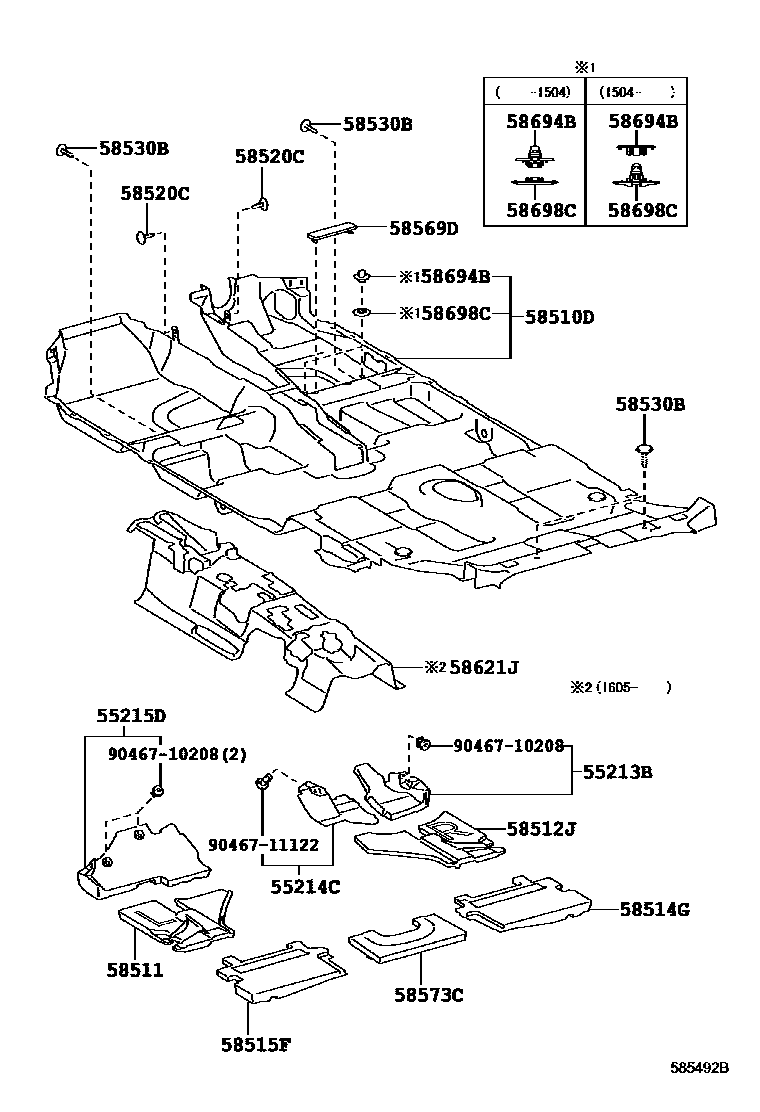

MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-47120iZVW40201203-202108

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47040iZVW40201203-202108

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47040iZVW40201203-202108

58510DCARPET ASSY, FLOOR, FRONT

main58510-47240-B0iZVW40201203-201504

DK. GREY,TRIM1#,6#

main58510-47241-B0iZVW40201504-202108

DK. GRAY,TRIM1#,2#

58511MAT, FLOOR, FRONT

main58511-12620iZVW40201203-201305

sub58511-12621

main58511-12621iZVW40201305-202108

58512JMAT, FLOOR, NO.2

main58512-12200iZVW40201203-201305

sub58512-12201

main58512-12201iZVW40201305-202108

58514GMAT, FLOOR, REAR RH

main58514-47010iZVW40201203-202108

58515FMAT, FLOOR, REAR LH

main58515-47010iZVW40201203-202108

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iZVW40201203-201701

DK.GRAY

sub90467-05164

main90467-05164-C7iZVW40201701-202108

BLACK

sub90467-05164

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZVW40201203-202108

DK.GRAY

sub90467-07049

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-C0iZVW40201203-201504

BLACK,TRIM1#,6#

main58569-12010-C0iZVW40201504-202108

BLACK,TRIM1#,2#

58573CPAD, FRONT FLOOR CENTER

main58573-47010iZVW40201203-202108

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47030iZVW40201605-202108

58694BPLATE, MAT SET, UPPER

main58694-76010iZVW40201203-201504

main58694-78010iZVW40201504-202108

58698CPLATE, MAT SET, LOWER

main58698-76010iZVW40201203-201504

main58698-78010iZVW40201504-202108

9046710208

main90467-10208

9046711122

main90467-11122

17 parts on this diagram · 1 diagram in section
