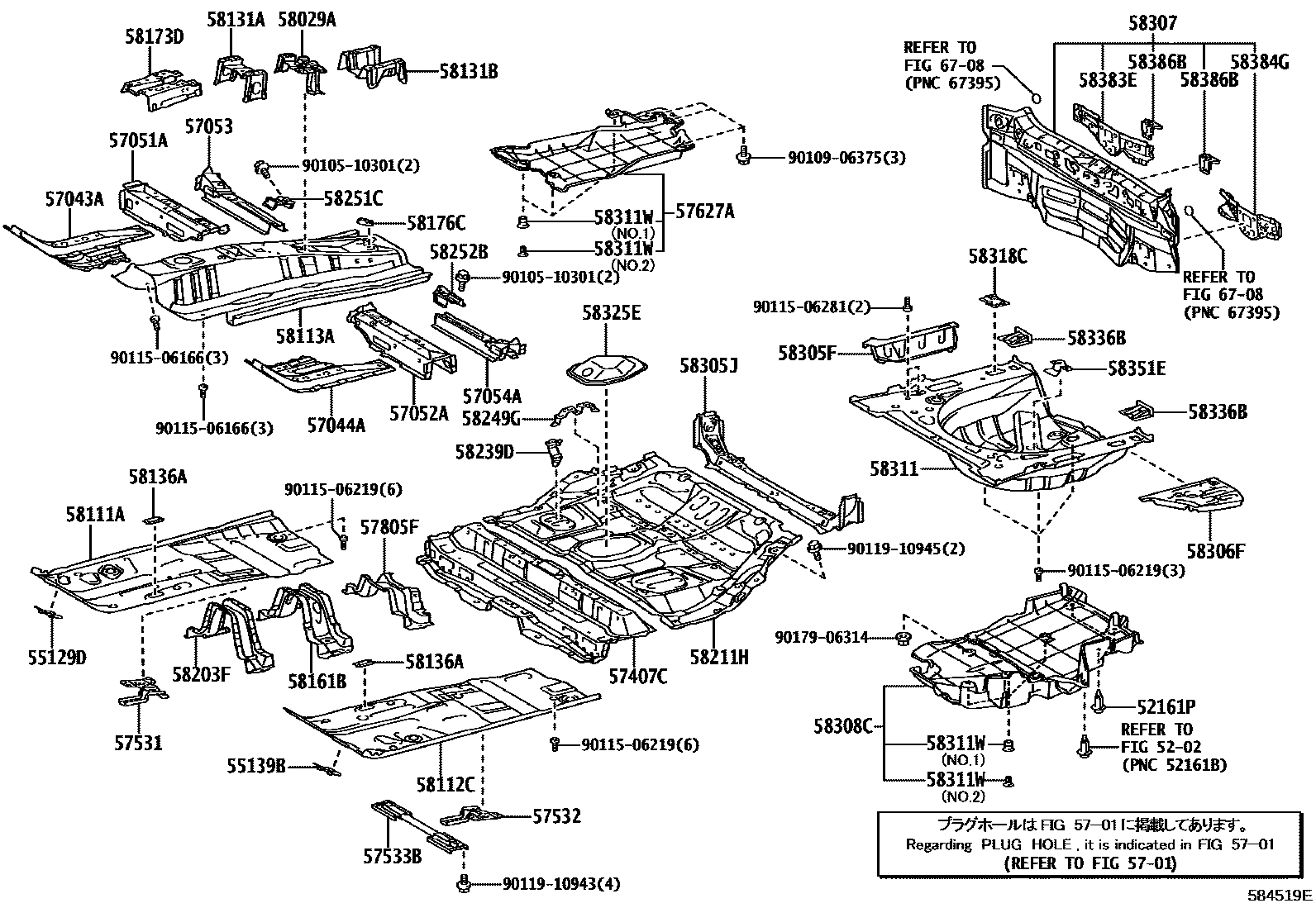

FLOOR PAN & LOWER BACK PANEL
5202
52161PPIECE, REAR BUMPER
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57533BBRACE, FRONT FLOOR, CENTER
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58136ACOVER, FRONT FLOOR SERVICE HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58173DBRACKET, COMPUTER MOUNTING, NO.4
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58211HPAN, CENTER FLOOR
58239DBRACKET, CABLE CLAMP
58249GBRACKET, CABLE CLAMP, NO.2
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305JBRACKET, SPARE WHEEL CARRIER
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308CCOVER SUB-ASSY, REAR FLOOR STEP UNDER
58311PAN, REAR FLOOR
58311WCLIP(FOR REAR FLOOR)
BLACK,NO.2:REFER ILLUST.
SUPER WHITE 2,NO.1:REFER ILLUST.
BLACK,NO.2:REFER ILLUST.
58318CBRACKET, REAR FLOOR CROSSMEMBER
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351EBRACKET, SPARE WHEEL CLAMP
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384GGUSSET, LOWER BACK, UPPER RH
58386BBRACKET, REAR BUMPER COVER, NO.2
6708
9010510301
9010906375
9011506166
9011506219
9011506281
9011910943
9011910945
9017906314
56 parts on this diagram · 1 diagram in section
