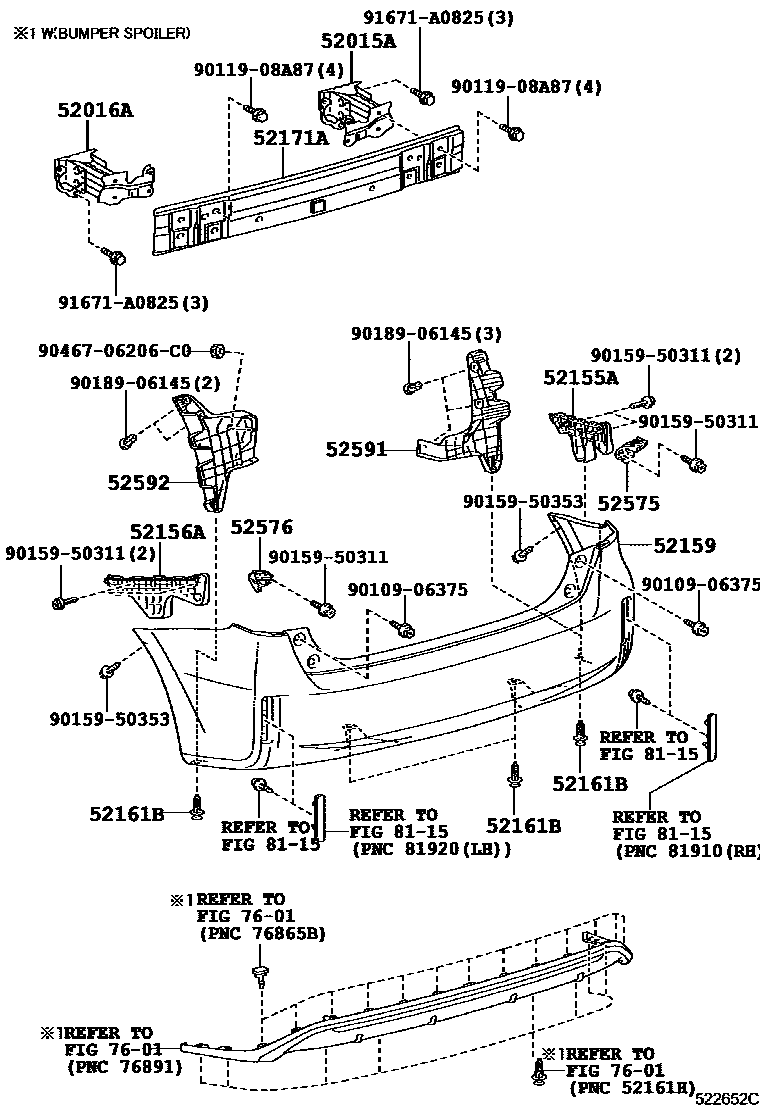

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47080iZVW40¥4,670201203-202108

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47060iZVW40¥4,670201203-202108

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-47010iZVW40¥3,500201203-202108

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-47010iZVW40¥3,500201203-202108

52159COVER, REAR BUMPER

main52159-47909iZVW40¥36,100201203-201504

PAINT REQ.

main52159-47912iZVW40¥30,000201504-202108

52161BPIECE, REAR BUMPER

main52161-16010iZVW40¥120201203-202108

sub52161-0K040¥120

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-12240iZVW40¥8,500201203-202108

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47030iZVW40¥1,590201203-202108

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47030iZVW40¥1,590201203-202108

52591SEAL, REAR BUMPER SIDE, RH

main52591-47030iZVW40¥2,240201203-202108

52592SEAL, REAR BUMPER SIDE, LH

main52592-47030iZVW40¥3,200201203-202108

7601

8115

9010906375

main90109-06375¥80

9011908A87

main90119-08A87¥100

9015950311

main90159-50311¥70

9015950353

main90159-50353¥60

9018906145

main90189-06145¥80

9046706206C0

main90467-06206C0

91671A0825

main91671-A0825¥80

20 parts on this diagram · 1 diagram in section
