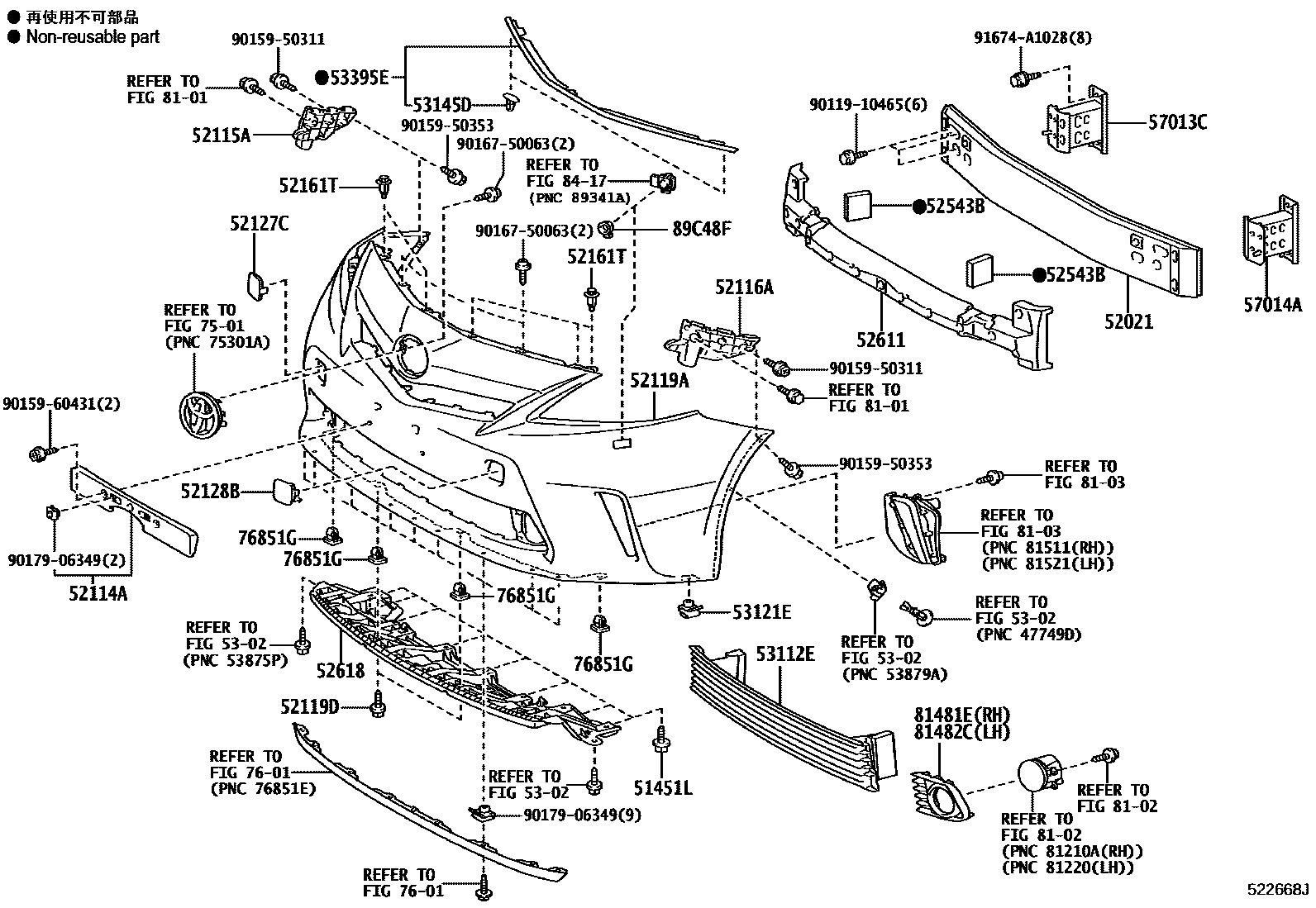

FRONT BUMPER & BUMPER STAY
51451LBOLT, NO.1
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
52119DSCREW, NO.1
52128BCOVER, FRONT BUMPER HOLE, LH
52161TPIECE, FRONT BUMPER
sub52161-0K040
52543BSEAL, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53121ECLIP(FOR FRONT BUMPER), NO.1
53145DCLIP, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7501
7601
76851GGROMMET, SCREW, NO.1
8101
8102
8103
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
8417
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
9011910465
main90119-10465
9015950311
main90159-50311
9015950353
main90159-50353
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
91674A1028
main91674-A1028
37 parts on this diagram · 2 diagrams in section
