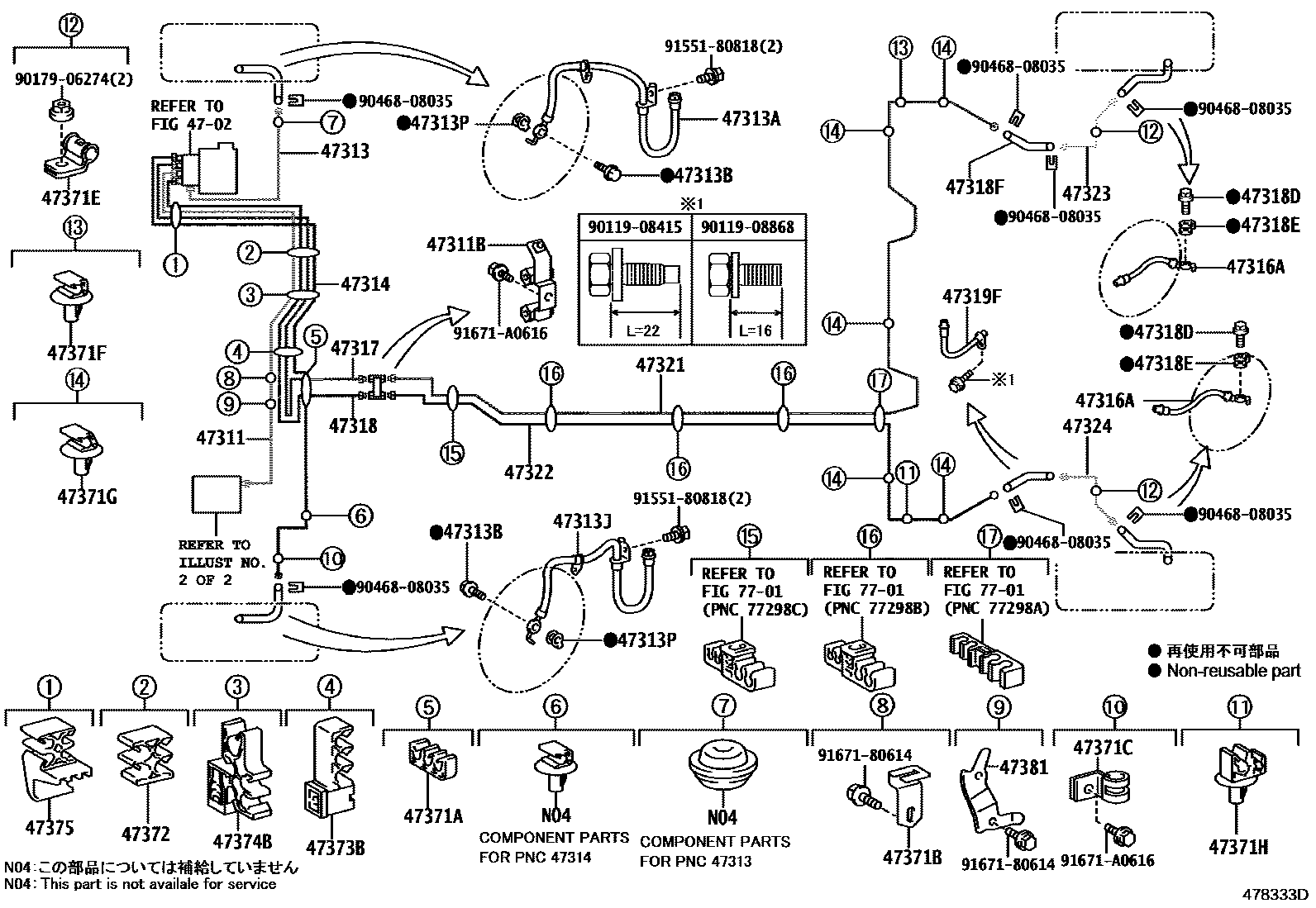

BRAKE TUBE & CLAMP

0001 1 0002 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-75010iZVW40201203-201604

main47311-76010iZVW40201604-202108

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZVW40201203-202108

47313TUBE, FRONT BRAKE, NO.3

main47313-75010iZVW40201203-201603

main47313-76010iZVW40201604-202108

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G30iZVW40201203-202108

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW40201203-202108

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G31iZVW40201203-202108

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZVW40201203-202108

47314TUBE, FRONT BRAKE, NO.4

main47314-75010iZVW40201203-201603

main47314-76020iZVW40201604-202108

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02F87iZVW40201203-202108

47317TUBE, FRONT BRAKE, NO.7

main47317-75010iZVW40201203-201604

main47317-76010iZVW40201604-202108

47318TUBE, FRONT BRAKE, NO.8

main47318-75010iZVW40201203-201604

main47318-76010iZVW40201604-202108

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW40201203-202108

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZVW40201203-202108

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F85iZVW40201203-202108

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F86iZVW40201203-202108

47321TUBE, REAR BRAKE, NO.1

main47321-47050iZVW40201203-201504

sub47321-47060

main47321-47060iZVW40201504-202108

47322TUBE, REAR BRAKE, NO.2

main47322-47050iZVW40201203-201504

sub47322-47060

main47322-47060iZVW40201504-202108

47323TUBE, REAR BRAKE, NO.3

main47323-12230iZVW40201203-201603

sub47323-47050

main47323-47050iZVW40201604-202108

47324TUBE, REAR BRAKE, NO.4

main47324-12190iZVW40201203-201603

sub47324-47050

main47324-47050iZVW40201604-202108

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00857iZVW40201203-202108

47371BCLAMP, BRAKE TUBE, NO.6

main47371-47060iZVW40201203-202108

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iZVW40201203-202108

47371ECLAMP, BRAKE TUBE, NO.9

main90461-10837iZVW40201203-202108

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iZVW40201203-202108

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D46iZVW40201203-201512

main90949-01E45iZVW40201601-202108

47371HCLAMP, BRAKE TUBE, NO.12

main77286-75020iZVW40201203-202108

47372CLAMP, BRAKE TUBE, NO.2

main90464-00876iZVW40201604-202108

main90464-00883iZVW40201203-201604

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D08iZVW40201203-202108

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D63iZVW40201203-202108

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D77iZVW40201203-202108

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZVW40201203-202108

7701

9011908415

main90119-08415

9011908868

main90119-08868

9017906274

main90179-06274

9046808035

main90468-08035

9155180818

main91551-80818

9167180614

main91671-80614

91671A0616

main91671-A0616

40 parts on this diagram · 2 diagrams in section
