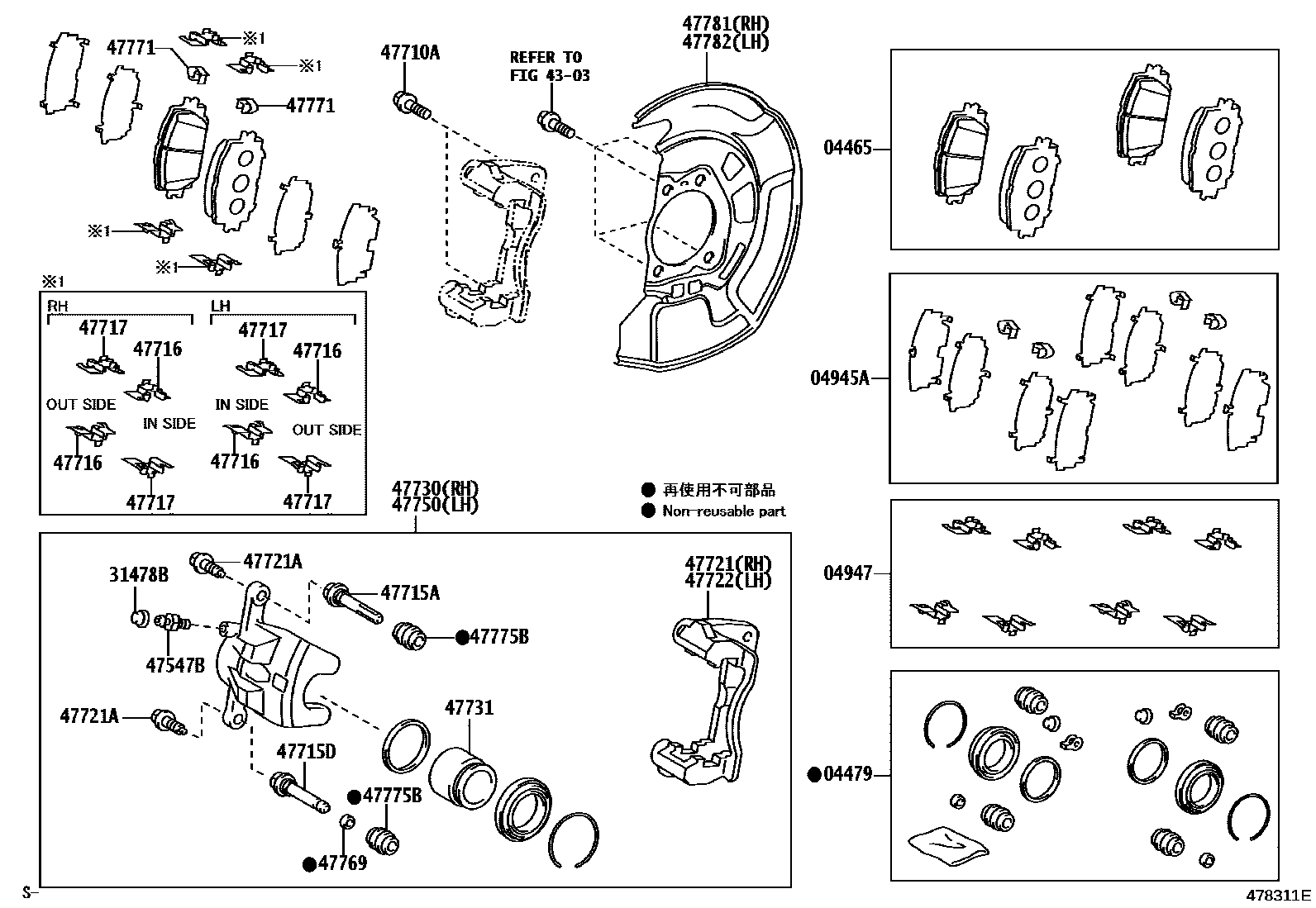

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180iZVW40201203-202108

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZVW40201203-202108

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-42060iZVW40201203-202108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZVW40201203-202108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZVW40201203-202108

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZVW40201203-202108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZVW40201203-202108

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZVW40201203-202108

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZVW40201203-202108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191iZVW40201203-202108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191iZVW40201203-202108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42091iZVW40201203-202108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZVW40201203-202108

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42091iZVW40201203-202108

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42091iZVW40201203-202108

47731PISTON, FRONT DISC BRAKE

main47731-12A70iZVW40201203-202108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42091iZVW40201203-202108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZVW40201203-202108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iZVW40201203-202108

47775BBOOT, BUSH DUST, NO.1

main47775-52190iZVW40201203-202108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iZVW40201203-202108

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iZVW40201203-202108

23 parts on this diagram · 1 diagram in section
