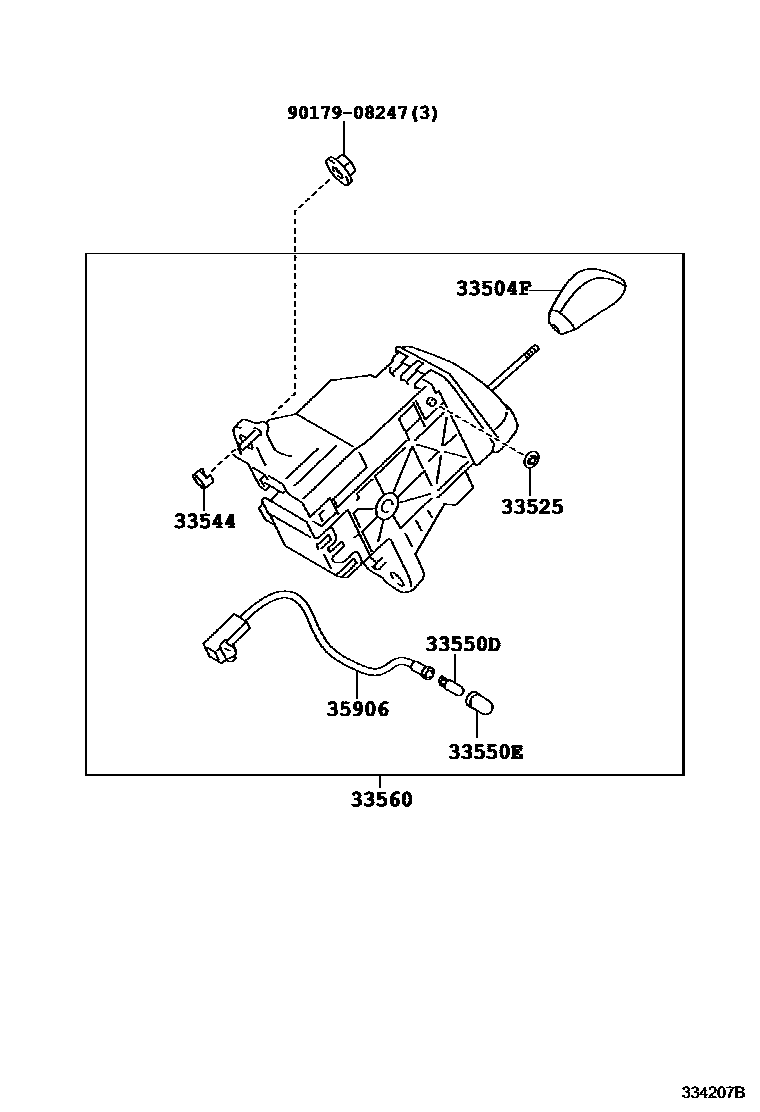

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-49015iZVW40201203-201504

sub33504-49045

main33504-49045-B0iZVW40201504-202108

SILVER METALLIC,TRIM1#,2#

33525SUPPORT, SHIFT LEVER

main33525-42010iZVW40201203-202108

33544INSERT, SHIFT LEVER, NO.1

main33544-33010iZVW40201203-202108

33550DBULB, POSITION INDICATOR LAMP

main35955-20010iZVW40201203-202108

12V 2.0W

33550ECAP, POSITION INDICATOR LAMP

main35956-75010iZVW40201203-202108

33560UNIT ASSY, SHIFT LOCK CONTROL

main33550-47060iZVW40201203-201411

sub33550-47061

main33550-47061iZVW40201412-201504

sub33550-47062

main33550-47111-B0iZVW40201504-201508

SILVER METALLIC,TRIM1#,2#

sub33550-47112

main33550-47112-B0iZVW40201509-202108

SILVER METALLIC,TRIM1#,2#

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20170iZVW40201203-201508

main35906-47030iZVW40201509-202108

9017908247

main90179-08247

8 parts on this diagram · 1 diagram in section
