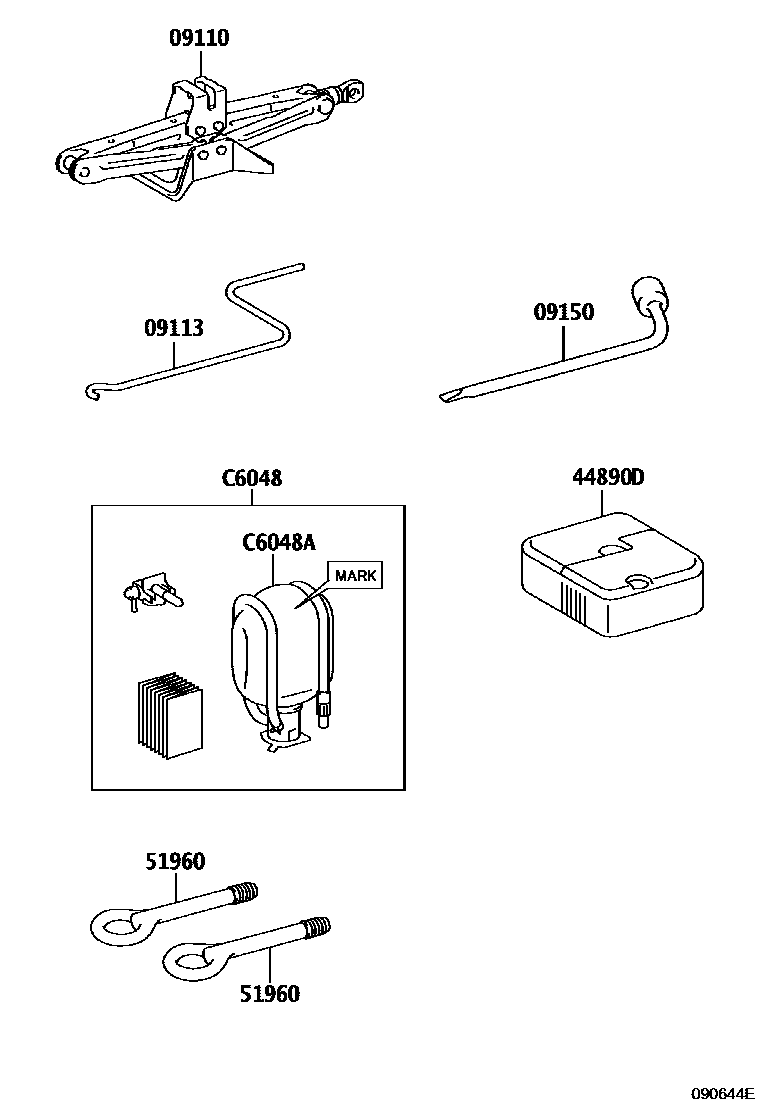

STANDARD TOOL

09110JACK ASSY

main09110-47100iZVW40201203-202108

09113HANDLE, JACK

main09113-52031iZVW40201203-202108

09150WRENCH, HUB NUT BOX

main09150-35070iZVW40201203-201208

main09150-40010iZVW40201209-202108

44890DCOMPRESSOR ASSY, AIR

main44890-52020iZVW40201203-201205

sub44890-52021

main44890-52021iZVW40201206-202108

sub44890-52022

51960HOOK ASSY, FRONT

main51961-47020iZVW40201203-202108

C6048REPAIR SET, TIRE

main42683-47020iZVW40201203-201207

SPARE TIRE-TEMPORARY(T135/70D17)

sub42683-47021

main42683-47021iZVW40201208-201212

MARK=470ML

main42683-47021iZVW40201208-201212

SPARE TIRE-TEMPORARY(T135/70D17),MARK=470ML

main42683-52021iZVW40201212-202108

MARK=350ML

main42683-52021iZVW40201212-202108

SPARE TIRE-TEMPORARY(T135/70D17),MARK=350ML

main42683-52021iZVW40201504-202108

SPARE TIRE-TEMPORARY(T145/70D17),MARK=350ML

C6048ASEALANT, REPAIR TIRE

mainC604847050iZVW40201203-201208

subC6048-47051

mainC604847051iZVW40201208-201212

MARK=470ML

mainC604852021iZVW40201212-202108

MARK=350ML

7 parts on this diagram · 1 diagram in section
