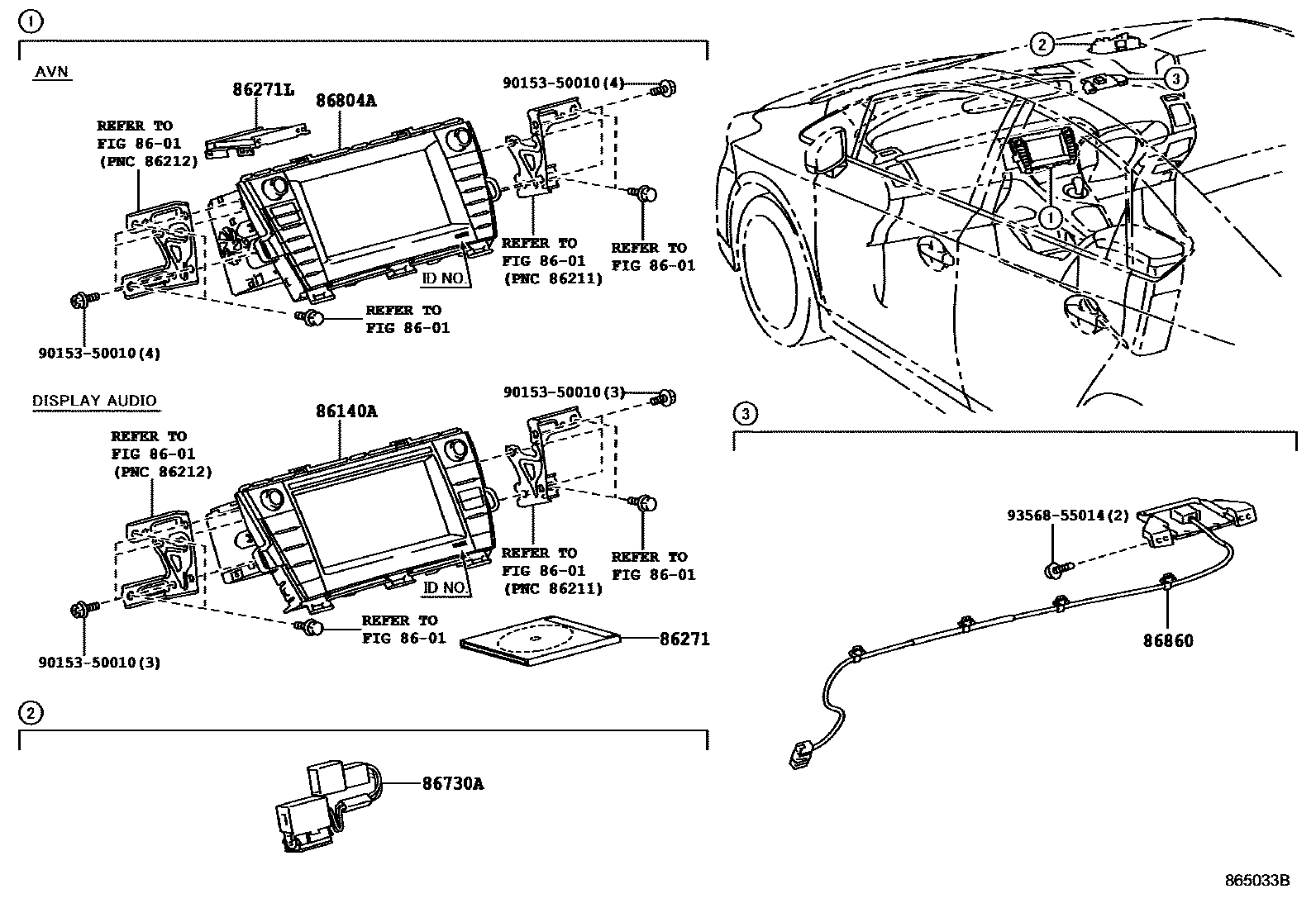

NAVIGATION & FRONT MONITOR DISPLAY

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-47100i201201-201310

PANASONIC,ID=57038

86271DISC, DISC PLAYER

main86807-06010i201310-201409

main86807-30120i201209-201308

AUDIO-AVN *BT USB JBL 8SPEAKER

86271LHARD DISC

main86271-33162i201310-201408

main86271-33160i201201-201204

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER

main86271-33161i201209-201308

AUDIO-AVN *BT USB JBL 8SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-28040i201201-201506

86804ASUB-ASSY, NAVIGATION COMPUTER

main86804-47150i201310-201506

86860ANTENNA ASSY, NAVIGATION

main86860-47070i201310-201506

9015350010

9356855014

9 parts on this diagram · 1 diagram in section
