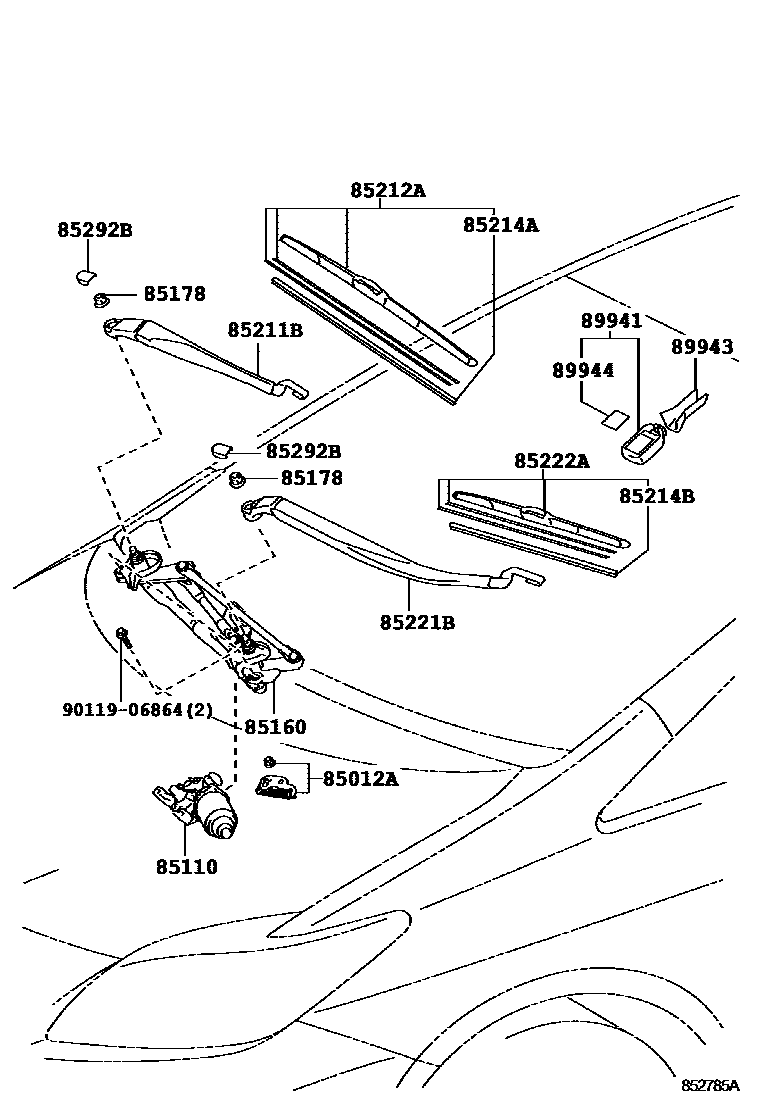

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iZVW35¥0201201-201506

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47190iZVW35¥25,100201201-201506

85160LINK ASSY, WINDSHIELD WIPER

main85150-47111iZVW35¥8,400201201-201506

sub85150-47121¥10,800

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iZVW35¥100201201-201207

main90182-10006iZVW35¥80201207-201506

85211BARM, FRONT WIPER, RH

main85211-47090iZVW35¥5,100201201-201506

85212ABLADE, FR WIPER, RH

main85212-68050iZVW35¥4,290201201-201506

85214ARUBBER, WIPER, RH

main85214-68020iZVW35¥900201201-201506

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-28090iZVW35¥750201201-201506

85221BARM, FRONT WIPER, LH

main85221-47080iZVW35¥4,950201201-201506

85222ABLADE, FR WIPER, LH

main85222-28180iZVW35¥1,810201201-201506

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW35¥250201201-201506

89941SENSOR, RAIN

main89941-42010iZVW35¥13,800201201-201506

89943COVER, RAIN SENSOR

main89943-47010iZVW35¥1,550201201-201506

89944TAPE, RAIN SENSOR

main89944-42010iZVW35¥1,490201201-201506

9011906864

main90119-06864¥80

15 parts on this diagram · 1 diagram in section
