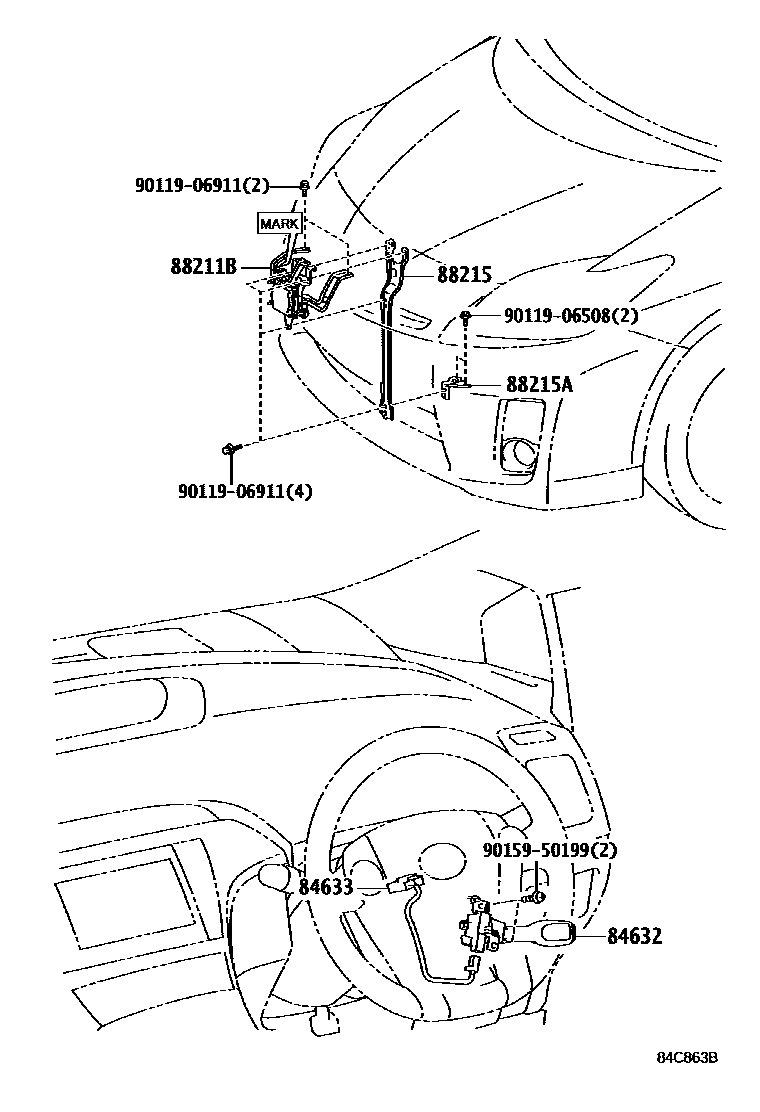

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iZVW35201201-201310

main84632-58011iZVW35201201-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main84632-58011iZVW35201310-201506

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010iZVW35201201-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main84633-48010iZVW35201310-201506

main84633-48020iZVW35201201-201310

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-47060iZVW35201201-201210

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),MARK=88210-47060

main88210-47061iZVW35201210-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),MARK=88210-47061

main88210-47061iZVW35201310-201506

MARK=88210-47061

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88215-47010iZVW35201201-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main88215-47010iZVW35201310-201506

88215ABRACKET, MILLIMETER WAVE RADAR SENSOR, NO.2

main88215-47020iZVW35201201-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)

main88215-47020iZVW35201310-201506

9011906508

main90119-06508

9011906911

main90119-06911

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
