WIRING & CLAMP

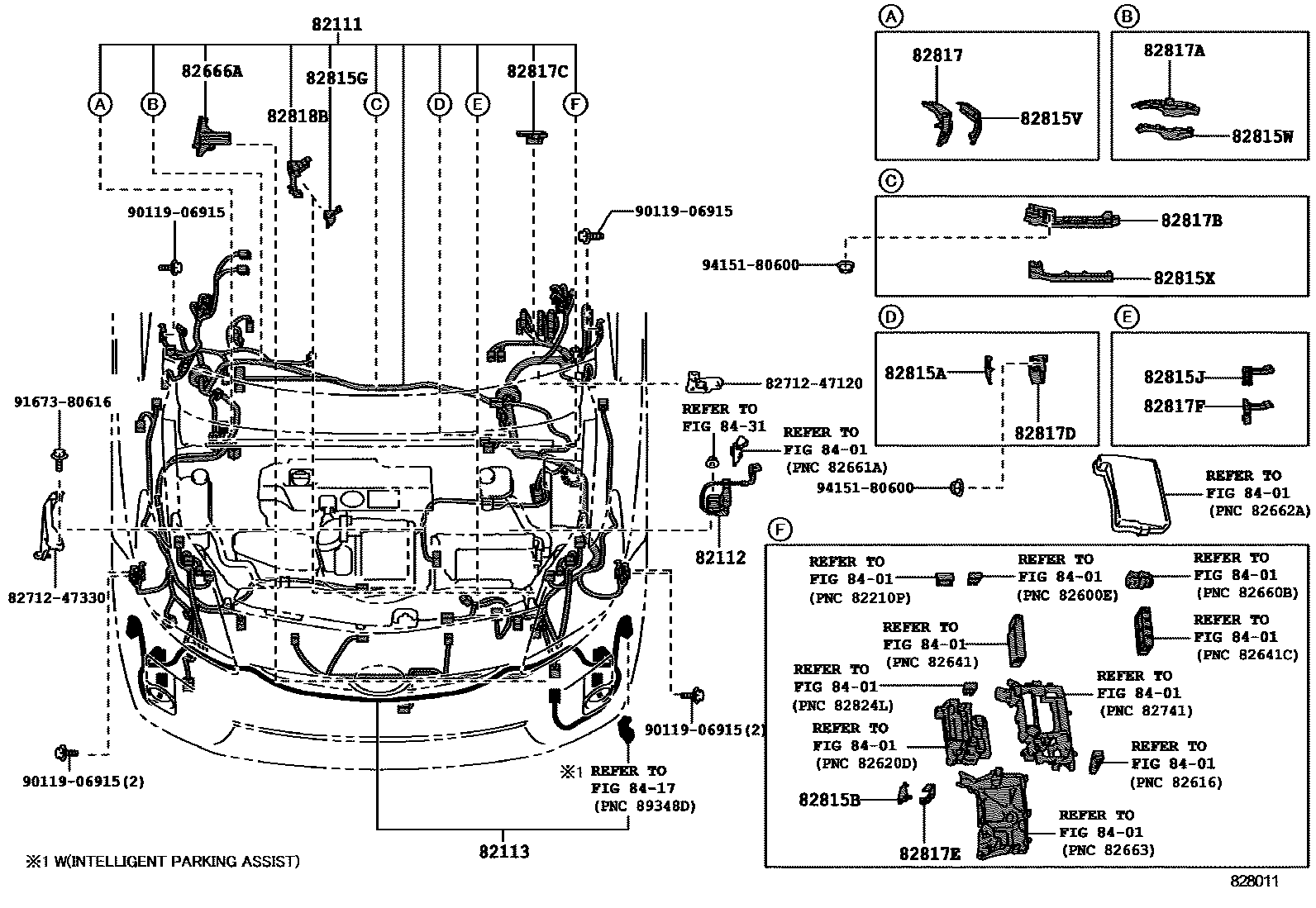

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-47880i201201-201310

main82111-47C91i201310-201405

main82111-47C92i201405-201506

82112WIRE, ENGINE ROOM, NO.2

main82112-47030i201201-201506

82113WIRE, ENGINE ROOM, NO.3

main82113-47180i201201-201310

main82113-47190i201310-201506

82666AHOLDER, CONNECTOR NO.2

main82666-47530i201201-201506

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47670i201201-201506

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47390i201201-201506

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C60i201201-201506

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47560i201201-201506

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-47590i201201-201506

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-47570i201201-201506

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-47580i201201-201506

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47830i201201-201506

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47810i201201-201506

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47820i201201-201506

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47A00i201201-201506

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47610i201201-201506

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47620i201201-201506

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-47800i201201-201506

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-47K70i201201-201506

82818BPROTECTOR, WIRING HARNESS, NO.3

main82817-47J70i201201-201506

8401

8417

8431

8271247120CLAMP, WIRING HARNESS

main82712-47120

8271247330CLAMP, WIRING HARNESS

main82712-47330

9011906915

main90119-06915

9167380616

main91673-80616

9415180600

main94151-80600

28 parts on this diagram · 12 diagrams in section
