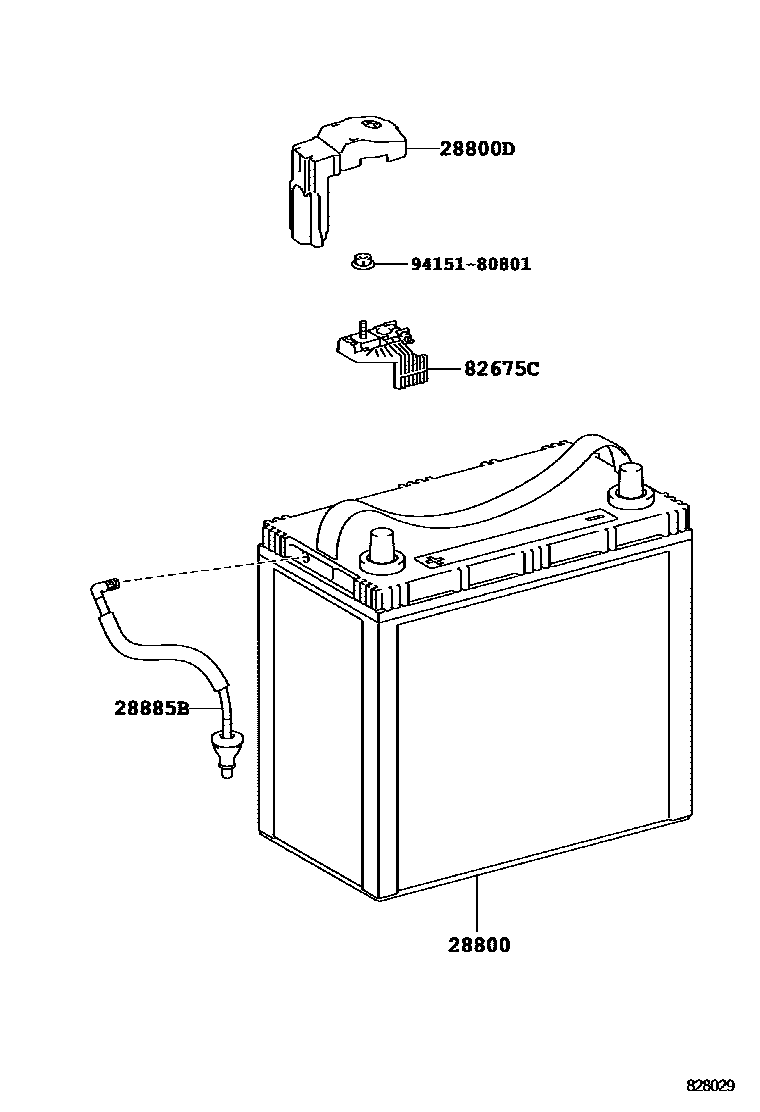

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-21171i2ZRFXE..ZVW35201201-201506

S46B24R

sub28800-21172

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-47110i2ZRFXE..ZVW35201201-201506

28885BHOSE, BATTERY

main28885-37010i2ZRFXE..ZVW35201201-201204

main28885-37060i2ZRFXE..ZVW35201205-201506

82675CTERMINAL, JUNCTION

main82675-47160iZVW35201201-201506

9415180801

main94151-80801

5 parts on this diagram · 5 diagrams in section
